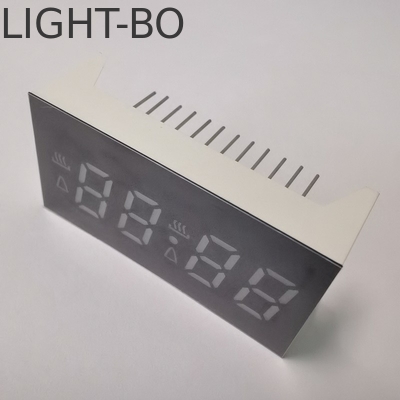

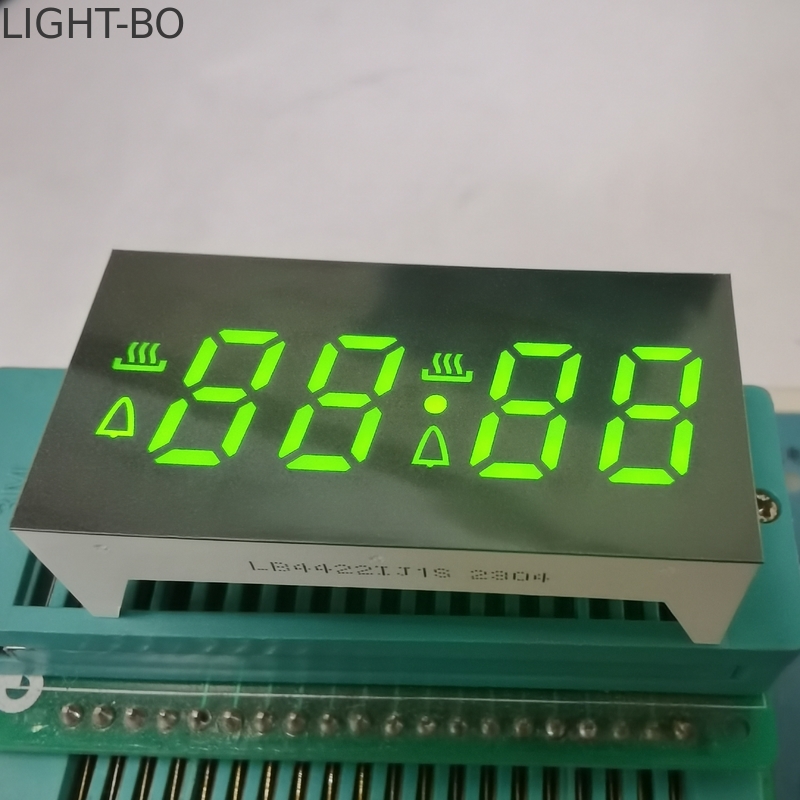

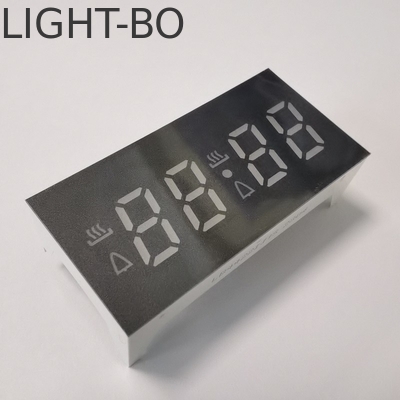

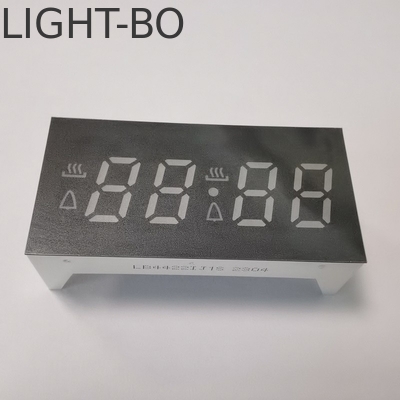

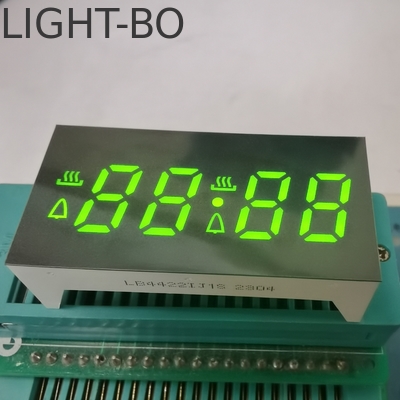

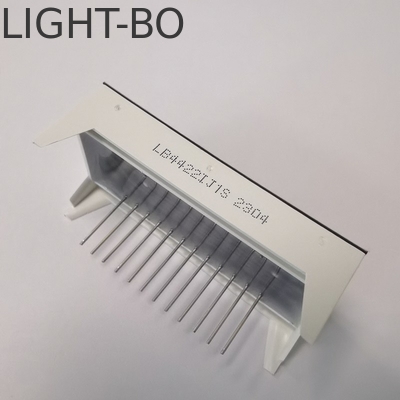

Yellow Green Anode Custom 7segment Led Display For Oven Timer Control

Yellow Green Anode Custom 7segment Led Display For Oven Timer Control

Brand Name:	LIGHTBO
Model Number:	LB4422IJ1S
MOQ:	1000
Payment Terms:	TT , Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Package Dimensions:

44*22

Polarity:

Anode

Emitting Colour:

Yellow-green

Display Brightness:

Hight

Digits:

Material:

PVC , Epoxy Resin,LED Chip

Usage:

Indoor,Outdoor,Indoor/Outdoor

Application:

Oven Control

Operating Temperature:

-40~105 ℃

Life Span:

80000hours

Forward Current:

20mA

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Yellow Green 7segment Led Display

Custom 7segment Led Display

Oven Timer Control 7segment Led Display

Product Description

Yellow Green Anode Custom 7segment Led Display For Oven Timer Control 0
Code:Yellow-green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.3	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA		13		mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA	565		570	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

Yellow Green Anode Custom 7segment Led Display For Oven Timer Control 1
