Triple Digit 0.56 inch 7 Segment LED Display Blue Color Common Anode

Name: Triple Digit 0.56 inch 7 Segment LED Display Blue Color Common Anode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30561IBH1S
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB30561IBH1S
MOQ:	1000PCS
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Emitting Color:

Blue

Polarity:

Common Anode

Shipping:

By DHL TNT UPS EMS Etc.

Digit Height:

14.2mm

Wavelength:

462-465nm

Face Colour:

White Segments Black Face

OEM:

Yes

Lifespan:

100000hrs

Operating Temperature:

-45-80℃

Digits:

Dimensions:

40.5*16*7mm

Usage:

Indoor/Outdoor

Application:

Instrument Panel

Packaging Details:

EPE+carton

Supply Ability:

50000PCS/Day

Highlight:

Instrument Panel 7 Segment LED Display

0.56” 7 Segment LED Display

Blue 7 Segment LED Display

Product Description

Triple Digit 0.56 inch 7 Segment LED Display

Product Overview

Ultra bright blue triple digit 7-segment LED display with common anode configuration. This industrial-grade numeric display features 0.56-inch character height for excellent readability and compact 37.6×19×8mm dimensions suitable for audio equipment, home appliances, and industrial instrument panels.

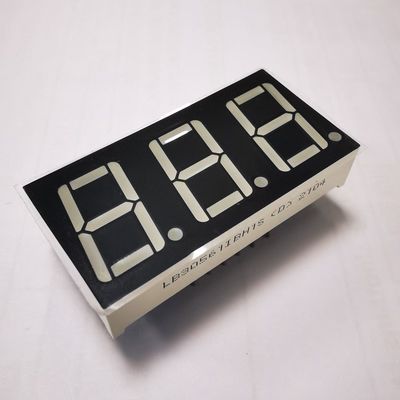

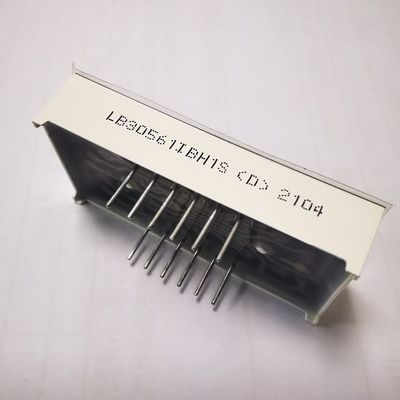

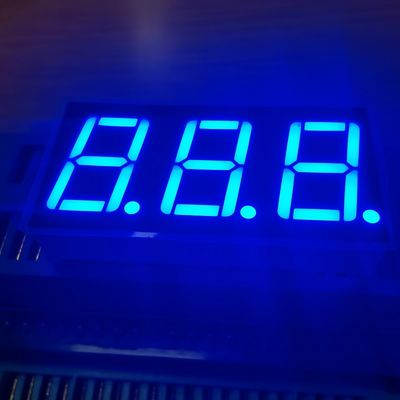

Product Images

Key Features

Ultra bright blue illumination (460-465nm wavelength)

0.56-inch (14.2mm) character height for optimal readability

Even light distribution across all segments

Common anode configuration for easy integration

Industrial standard 37.6×19×8mm dimensions

Low power consumption and extended lifespan

Multiple color options available

RoHS and REACH compliant

Technical Specifications

Category	Parameter	Specification
Basic Design	Display Type	Triple Digit 7-Segment LED Display
Basic Design	Polarity	Common Anode
Basic Design	Character Height	0.56inch (14.2mm)
Basic Design	Outer Dimensions	37.6 × 19 × 8mm
Optical Performance	LED Color	Ultra bright blue
Optical Performance	Wavelength	460-465nm
Electrical Parameters	Forward Voltage	2.8-3.2V per LED
Electrical Parameters	Forward Current	5-10mA per LED

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Luminous Intensity	Iv	If=10mA	120	140	mcd
Wavelength	Dλ	If=10mA	460	465	nm

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 certified with over 15 years of OEM and ODM experience.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostats, heating and cooling control systems.

Certifications

Company Overview

Shipping Services

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

Q: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, and LED Backlights.

Q: What is your MOQ?

A: Our MOQ is 1000 pieces, but we accept sample orders and small quantities below MOQ.

Q: Can I get samples for testing?

A: Yes, we provide 5-10 free samples for testing with freight costs borne by the customer.

Q: What is your delivery time?

A: Standard delivery is 10-20 days, with expedited 7-10 day delivery available for urgent orders with materials in stock.

Q: Do you offer custom design products?

A: Yes, we provide OEM & ODM services with customization of sizes, LED colors, and functional icons according to your requirements.
