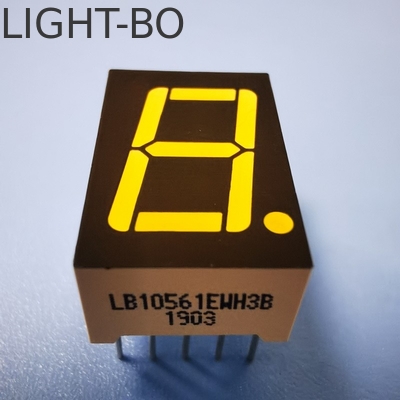

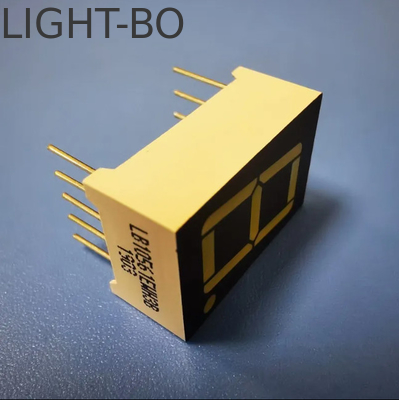

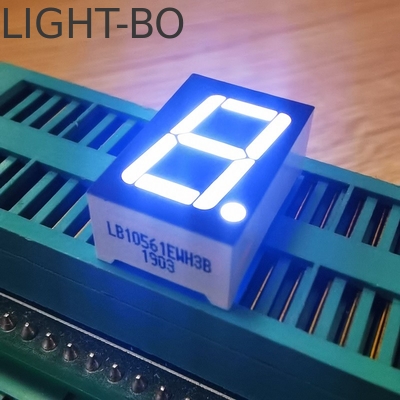

White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator

Name: White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB10561EWH3B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB10561EWH3B-D
MOQ:	1000PCS
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Polatity:

Common Cathode

Package Type:

DIP, SMD

Operating Temperature:

-40 To 85°C

Life Time:

80,000 Hours

OEM:

Yes

Application:

Home Appliances

Packaging Details:

EPE+carton

Supply Ability:

50000pcs/days

Highlight:

Single Digit 7 Segment LED Display

14.2mm 7 Segment LED Display

0.56" 7 Segment LED Display

Product Description

White 14.2mm (0.56") 7 Segment LED Display Common Cathode

High-performance 7-segment LED display designed for digital indicators with common cathode configuration and multiple color options.

Technical Specifications by Color Code

Yellow Green (Code: J/JU)

Vibrant yellow-green display offering excellent visibility and aesthetic appeal for various applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing excellent visibility with a comfortable, inviting glow.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Vibrant orange color offering high energy and excellent visual impact for attention-grabbing displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

High-intensity red display perfect for applications requiring maximum visibility and attention.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Maximum visibility red display with unparalleled luminosity for critical applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green display ideal for eco-friendly designs and applications requiring natural, refreshing appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Modern blue display offering contemporary aesthetic with excellent visibility and cool tone.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Premium white display offering exceptional clarity and sophisticated appearance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring reliability and durability under demanding conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with unwavering commitment to excellence.

LIGHTBO provides top-tier, cost-efficient custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic market landscapes.

Product Applications

Our advanced LED displays including Ultra Red 5*7 DOT Matrix Display, 7 Segment LED Display, Customized LED Display, and Numeric LED Display are engineered for seamless integration into diverse applications:

Household appliances modernization
Precise temperature and humidity monitoring
Refrigerator controllers and thermostats
HVAC systems and climate control
Industrial instrumentation and digital indicators

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Transportation

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small orders with quantities less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can adjust production to deliver within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping charges depend on shipment size and method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval.

Q14: What are your shipping methods?

A: We ship via DHL, FEDEX, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
