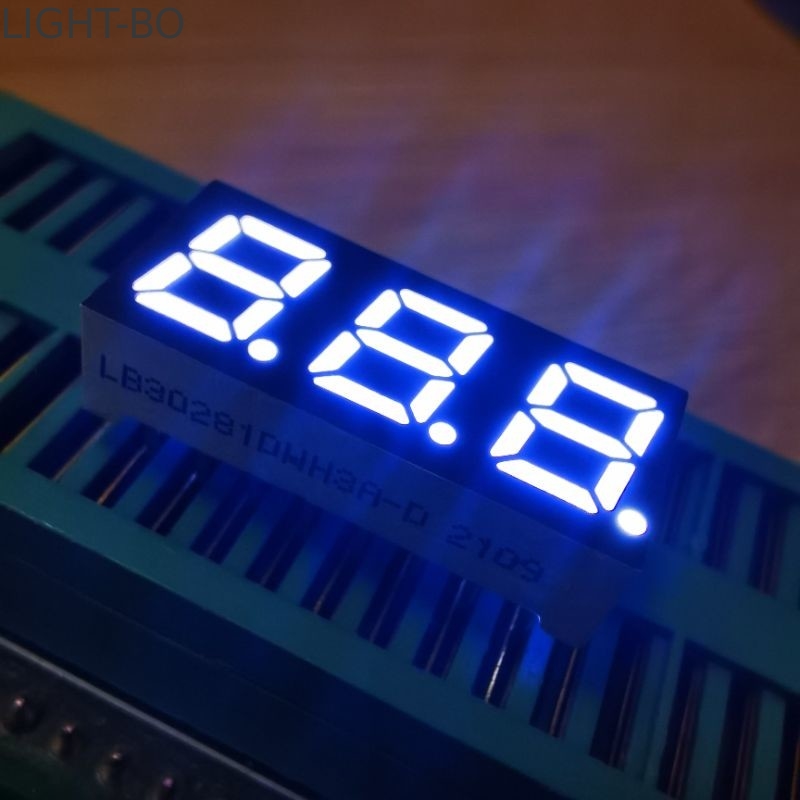

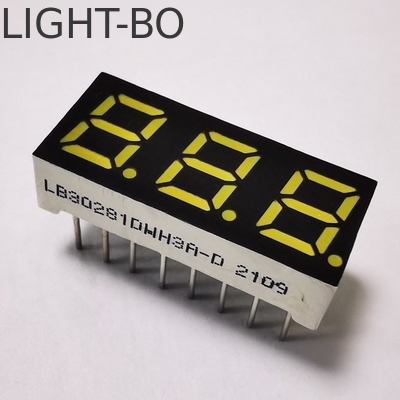

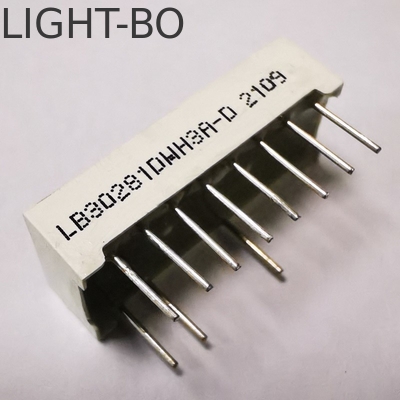

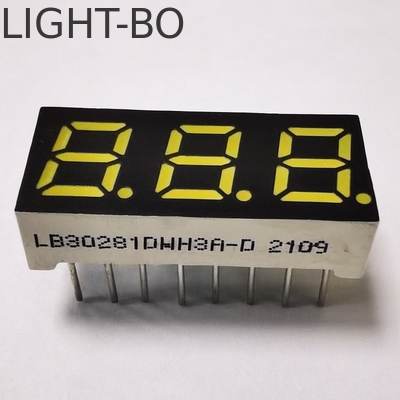

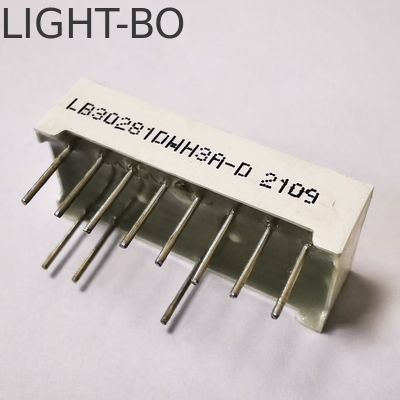

Triple Digit 0.28inch White 7 Segment LED Display Common Cathode

Brand Name:	LIGHT-BO
Model Number:	LB30281DWH3A-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Emitting Color:

Red, Blue, Green, White, Amber, Orange And Yellow

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Application:

Coffee Machine

Outer Dimensions:

22.5 X 10 X 6.1mm

Character Height:

0.28inch

Face Colour:

Yellow Segment Black Face

Packaging Details:

EPE+cartons

Supply Ability:

50000 PCS/Day

Highlight:

Coffee Machine 7 Segment LED Display

0.28inch 7 Segment LED Display

Triple Digit 7 Segment LED Display

Product Description

Triple Digit 0.28inch White 7 Segment LED Display Common Cathode

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	100		140	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature		If=10mA	6000		6500	K

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Operating temperature: -45-80Cº

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
