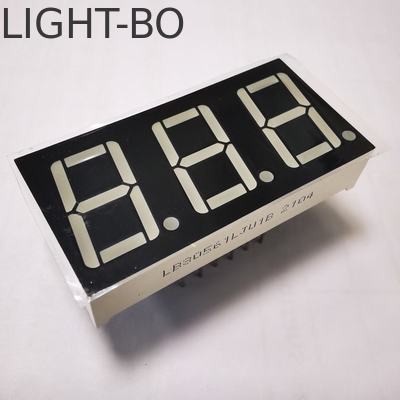

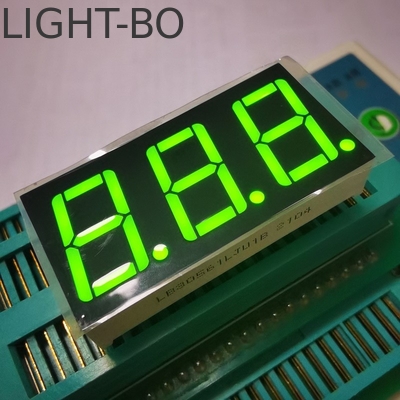

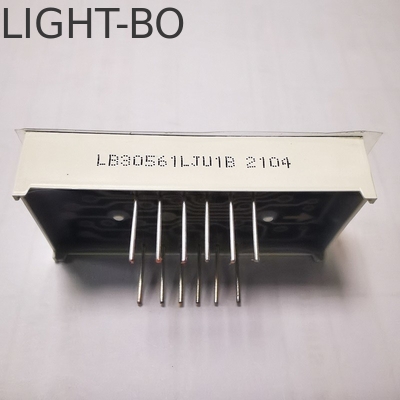

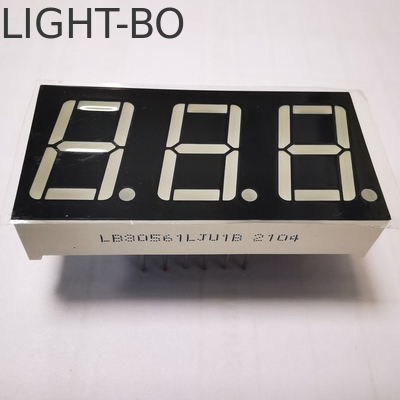

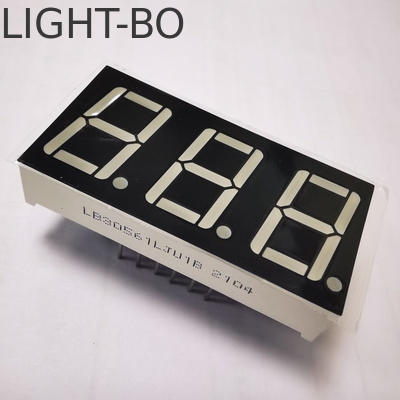

Triple Digit 0.56 inch 7 Segment LED Dispiay Super Bright Yellow Green

Triple Digit 0.56 inch 7 Segment LED Dispiay Super Bright Yellow Green

Triple Digit 0.56 inch 7 Segment LED Dispiay Super Bright Yellow Green

Brand Name:	LIGHT-BO
Model Number:	LB30561LJU1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Color:

Yellow Green

Polarity:

Common Cathode

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Oem:

Yes

Life Span:

100000hours

Operating Temperature:

-45-80℃

Usage:

Indoor/Outdoor

Application:

Refreigerator

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

0.56" 7 Segment LED Display

,

Triple Digit 7 Segment LED Display

,

Refreigerator 7 Segment LED Display

Product Description

Super Bright Yellow Green 7 Segment Triple Digit 0.56" Common Cathode for Refreigerator

Product Description:

Character height: 0.56"( 14.2mm)

Outer dimensions: 37.6*19*8 mm

Polarity: Common cathode
LED color : super bright yellow green
Waevlength:569-573nm
Forward voltage: 1.8-2.4V/led
Forward current:5-10mA/ led

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Long lifetime

Meet RoHS/REACH compliant

Applications:

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

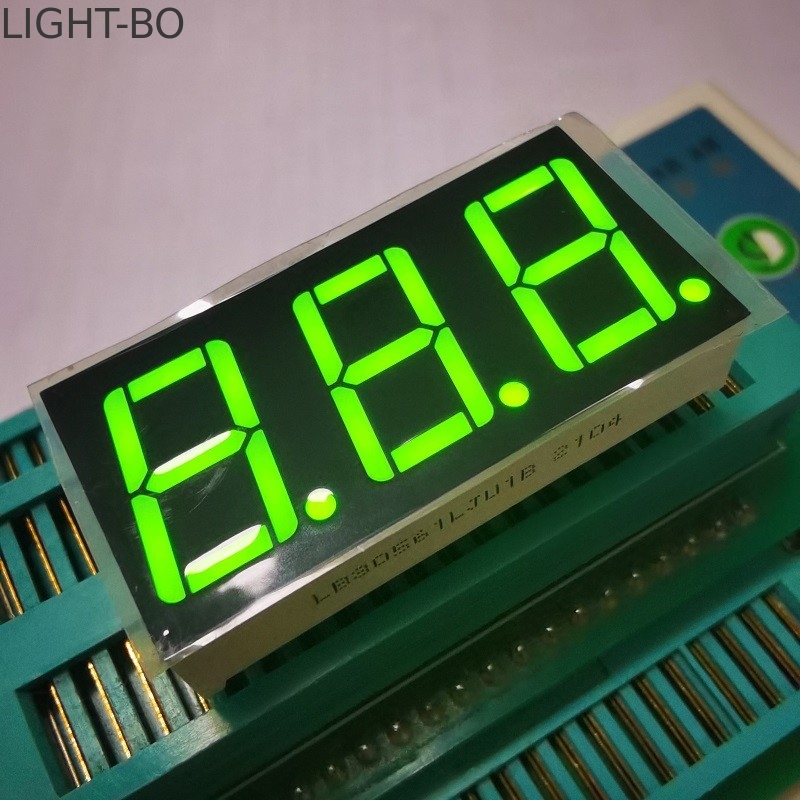

Triple Digit 0.56 inch 7 Segment LED Dispiay Super Bright Yellow Green 2
