Ultra Bright White Grey Surface LED Display 7 Segment 3digit 14.2mm Common Cathode for Temperature Controller

Ultra Bright White Grey Surface LED Display 7 Segment 3digit 14.2mm Common Cathode for Temperature Controller

Brand Name:	LIGHTBO
Model Number:	LB30561LWH8B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Package Dimensions:

93*16mm

Polarity:

Common Anode

Emitting Colour:

Green/Red

Display Brightness:

Ultra Bright

Digits:

Material:

PCB,Epoxy,LED Chip,plastic

Usage:

Indoor/Outdoor

Application:

Kitchen Hood

Operating Temperature:

-40~105 ℃

Life Span:

80000hours

Forward Current:

20mA

Tube Chip Color:

Full Color,Red,Green,white,Blue

Screen Dimension:

Customized Size,12.7x 7.6 X 7mm,50.4*19.0*8.1mm,113mm*29mm,28.8*40.8mm

Display Function:

Graphics,Animation,Video,numeral 0-9,temperature

Pixels:

10mm,7mm,25mm,8.0,10.20mm

Color:

Blue,yellow,green,red,white

Brightness:

Auto-dimming By Light Sensor,4000,7000cd/sqm,5000~6500mcd,High Brightness

Warranty:

2 Years,1 Year

Product Name:

Hot Video HD P6 7 Segment LED Display Screen,Led 7 Segment Led Display,Chestnuter Led Video Display Panel

Name:

LED Price Station Petrol Display,Small Seven Segment 3 Digits 0.2 Inch 7 Segment Smd Led Display,4 Digit 7 Segment Display,10 Inch 7 Segment Display LED

Voltage:

DC12V,90~120V/220~240V (base On The Customers' Need)

Emitting Color:

Blue,yellow,green,white,red

Digit Height:

0.2 Inch,1.5,1.2,0.38,0.5

Led Chip:

Epistar,InGan,AlGanlp

Oem:

Yes

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14.2mm 7 Segment LED Display

Temperature Controller 7 Segment LED Display

3digit 7 Segment LED Display

Product Description

Ultra Bright White Grey Surface LED Display

7 Segment 3-digit 14.2mm Common Cathode for Temperature Controller

Product Overview

LED Display 7 Segment 3 Digit 14.2mm with ultra bright white output and grey surface, designed for temperature controllers and industrial applications.

Key Specifications

Character Height: 0.56" (14.2mm)

Outer Dimensions: 37.6 * 19 * 8 mm

Polarity: Common Cathode

Forward Voltage: 2.8-3.2V/LED

Forward Current: 5-10mA/LED

Construction: Made with yellow epoxy, grey surface

Available Colors: Red, Blue, Green, White, Amber, Orange, Yellow

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Electrical & Optical Characteristics

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Product Features

High luminous intensity output with optimal forward voltage
Low power consumption for energy efficiency
Extremely low current operation
Evenly distributed luminous intensity across each segment
Industrial standard size for compatibility
Excellent reliability in bright ambient light conditions
Stable performance across temperature ranges
Long operational lifetime
Compliant with RoHS/REACH environmental standards

Applications

This LED display is ideal for various industrial and consumer applications including:

Audio equipment and instrument panels
Home electronic appliances
Numeric displays and indicators
Multimedia products
Digital indicators for temperature, humidity, and process monitoring
Refrigerator controllers and thermostat indicators
Heating and cooling control systems

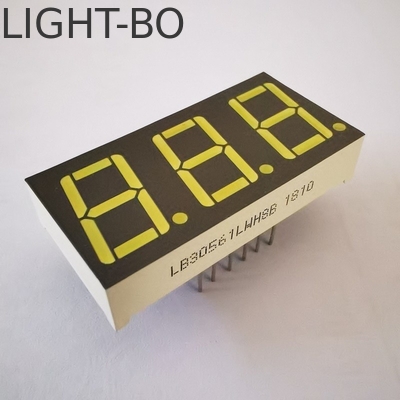

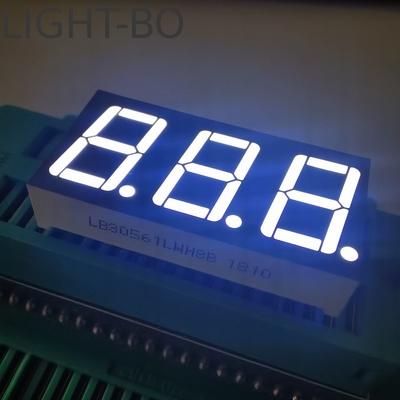

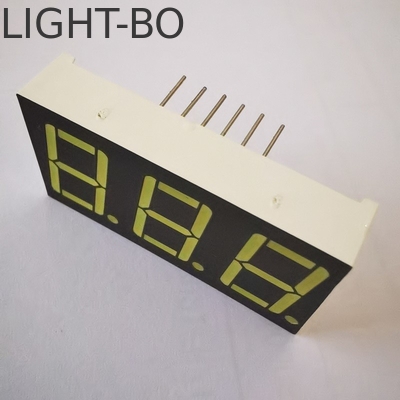

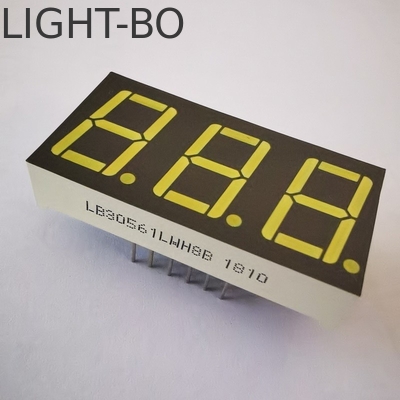

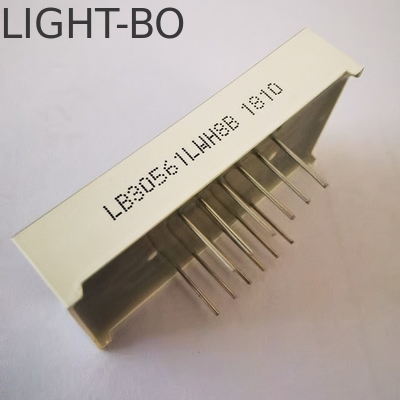

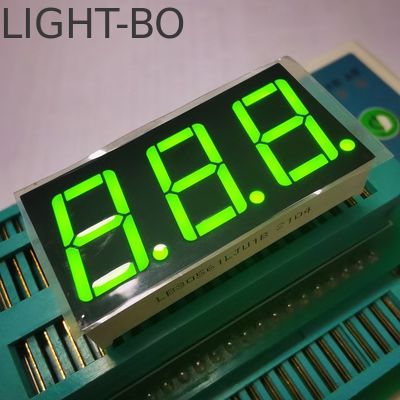

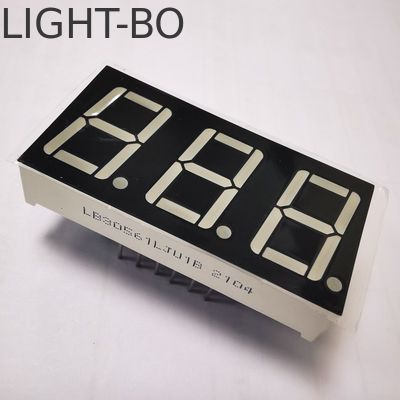

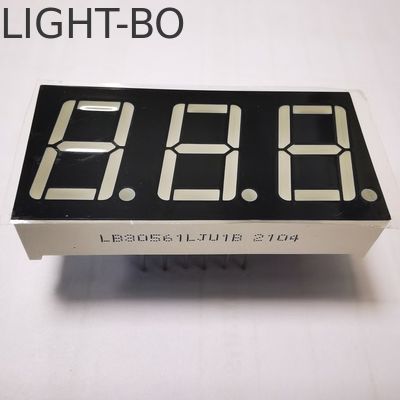

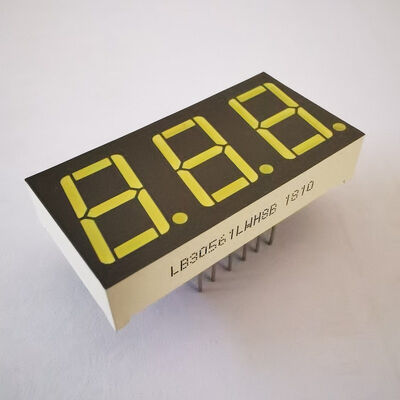

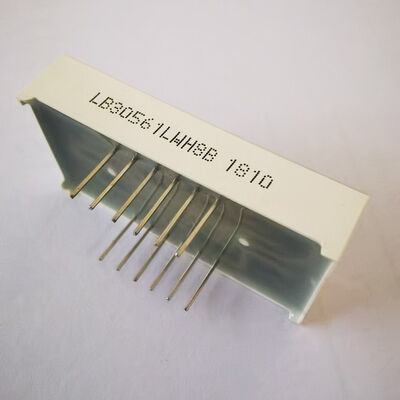

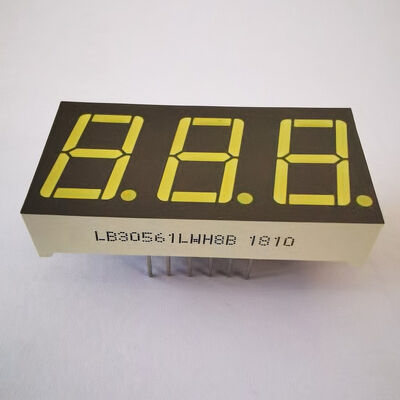

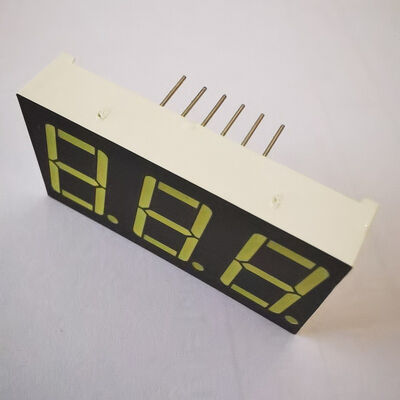

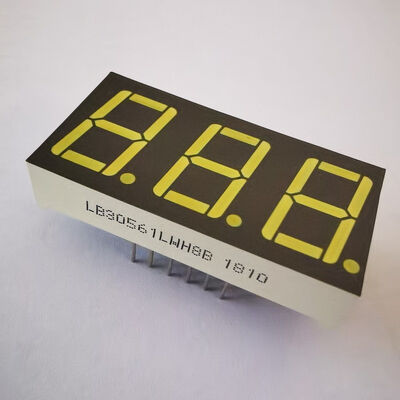

Product Images

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are the original manufacturer with over 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

Our product range includes 7 Segment LED displays, SMD LED displays, Dot matrix LED displays, Arrow LED displays, Custom Design LED displays, LED light bars, Through-hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your minimum order quantity (MOQ)?

Our standard MOQ is 1000 pieces, but we also accept sample orders and smaller quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

Yes, we provide 5-10 free samples for testing, though customers are responsible for freight costs.

Q5: How long is your delivery time?

Standard delivery time is 10-20 days, depending on order quantity and material availability. For urgent orders with available materials, we can expedite to 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for smaller amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

Yes, we provide pricing based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website to receive our catalog and pricing information.

Q9: Can I negotiate prices?

Yes, we offer discounts for bulk orders and are open to price negotiations.

Q10: How much will shipping charges be?

Shipping costs depend on shipment size and method. We will provide specific charges based on your requirements.

Q11: Can you do custom design products?

Yes, we provide OEM & ODM services and can customize sizes, LED colors, and functional icons according to your specifications.

Q12: If I provide my design, will you keep it confidential?

Yes, we maintain strict confidentiality and will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

Custom sample lead time is approximately 20-25 working days after receiving mold costs and design approval.

Q14: What shipping methods do you use?

We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. Alternative shipping methods can be arranged based on customer preference.

Q15: How do you ensure product quality?

As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
