Common Cathode 7 Segment LED Display Dual Digit 14.2mm White Color

Dual-Digit 7-Segment LED Display – 14.2mm (0.56-Inch), Ultra Bright White, Common Cathode

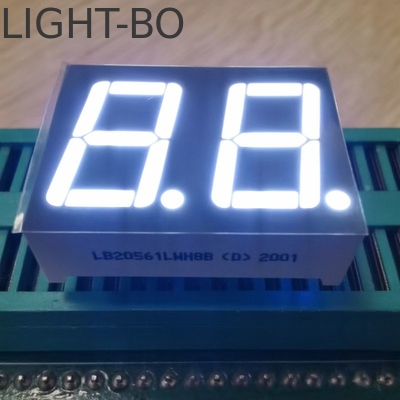

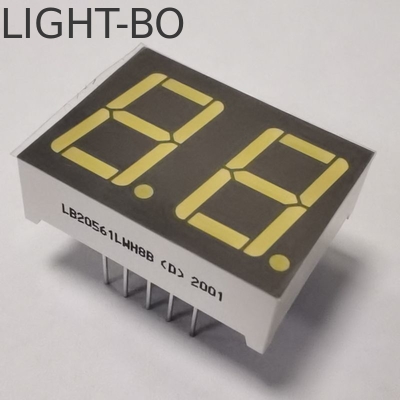

Luminous Close-Up: Clear shot of dual digits in ultra bright white, with yellow segments and black surface—showcasing no "hotspots" or dim edges for consistent readability.

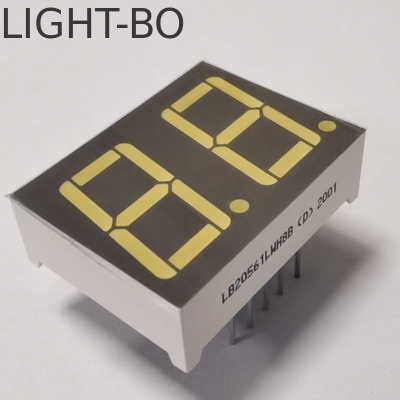

Dimension Labeled Diagram: Marked 25×19×8mm outer dimensions and 14.2mm (0.56-inch) digit height, visualizing the compact profile for space-constrained devices.

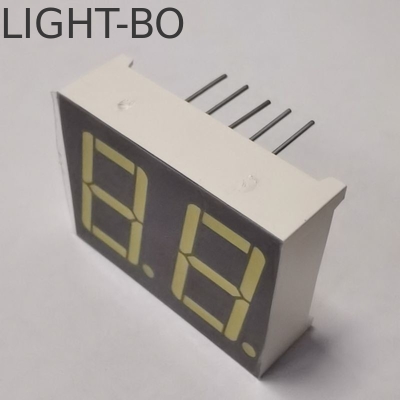

Wide Viewing Angle Test: Side-angle shots to demonstrate clear visibility from off-center positions.
Application Mockup: Integrated into a home appliance or industrial indicator  to reflect real-world use.

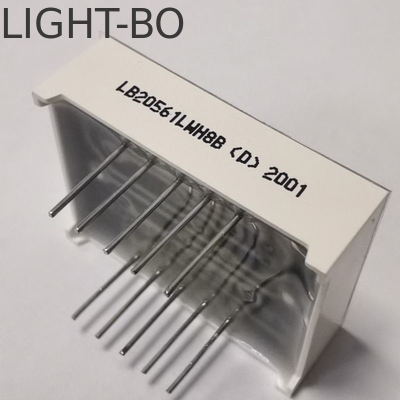

Parameter Detail Shot: Close-up of "Common Cathode (CC)" marking and RoHS logo, reinforcing compliance and polarity clarity.

Core Specifications Table

Key Selling Points
1. Ultra Bright White Luminosity & Uniform Segments
120-140mcd high luminous intensity: The ultra bright white emission cuts through bright ambient light  without glare—critical for "at-a-glance" readouts. Unlike lower-brightness displays, it avoids squinting or misreading in well-lit environments.
Continuous uniform segments: Advanced LED placement and light-diffusing yellow segments ensure no "dark spots" . This uniformity is essential for precision applications like digital indicators, where even small visual errors could lead to operational mistakes.
2. Compact Design & Wide Viewing Angle
25×19×8mm miniaturized form: The slim 8mm depth and compact footprint fit seamlessly into small devices—e.g., portable thermometers, smart switch panels, or mini industrial counters—without requiring bulky enclosures. Ideal for product designs prioritizing sleek aesthetics.
X/Y 0.29-0.31 wide viewing angle: Clear visibility from off-center positions eliminates the need to align directly with the display. Perfect for shared spaces where users interact with devices from multiple angles.
3. Energy Efficiency & Heat Management
Low power consumption: Extremely low current draw reduces energy use, making it suitable for battery-powered devices or 24/7 operated equipment. Extends battery life by 30-40% compared to higher-current displays.
Fast heat-dissipation: The display’s thermal design prevents heat buildup, avoiding performance degradation or component damage. Critical for devices with limited ventilation.
4. Easy Integration & Customization
IC compatibility: Works seamlessly with common 7-segment driver ICs, eliminating the need for custom circuit design. Simplifies assembly for manufacturers and reduces R&D time for new products.
Customizable options: Supports tailored modifications to fit specific needs—e.g., adjusted segment spacing for unique panel layouts, decimal point position, or matching yellow segment shades to brand aesthetics.
Easy assembly: Standardized pin layout and compact size enable automated SMT or manual through-hole installation, reducing production errors and speeding up manufacturing.

Target Applications
1. Home Appliances
Thermostats/humidifiers: Display temperature or humidity.
Microwaves/induction cooktops: Show cook time or power levels.
Small kitchen appliances: Indicate speed settings or toasting levels.
2. Industrial & Commercial Indicators
Process counters: Track production units or machine cycles.
Environmental monitors: Display temperature or pressure in workshops/warehouses.
Power supplies/voltage meters: Show output voltage or current.
3. Consumer Electronics
Portable measurement tools: Handheld thermometers or digital scales.
Smart home devices: Smart switches or battery chargers.

Quality Assurance
Brightness & Uniformity Testing: Every unit undergoes luminous intensity checks and segment uniformity inspections to ensure no visual defects.
Environmental Stability: Samples are tested for 24-hour operation at -40℃~85℃ to verify performance under extreme temperatures, with fast heat-dissipation validated via thermal imaging.
Warranty: 2-year warranty for non-human damage. If the display fails due to manufacturing defects, free replacement is provided.
