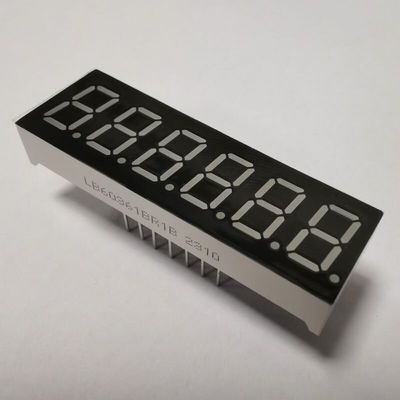

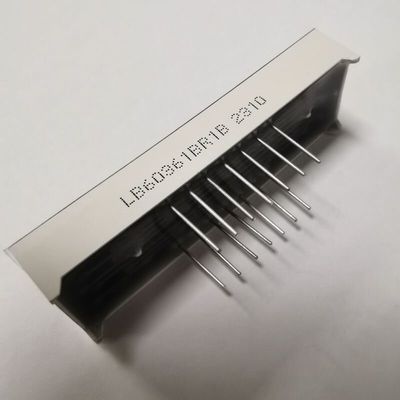

0.36 inch 6 digit Pure Green 7 Segment LED Display for Digit Timer

0.36 inch 6 digit Pure Green 7 Segment LED Display for Digit Timer

Product Description

Digit height: 9.2mm (0.36-inch)
Outer Dimensions:43.5 x 14.0 x 7 mm - Compact and Efficient
• Common Anode Design
• Crafted with White Segments, Black Surface for Optimal Contrast
• Wavelength: 515-525nm
Luminous Intensity: 120-180MCD for Clear Visibility
Forward Voltage: 2.6-3.2V/LED
• Forward Current: 5-10mA/LED
Customized Emitting Colors: Red, Blue, Yellow Green, Pure Green, Amber, Orange, Yellow, and White
• High Luminous Intensity and Unmatched Reliability
• Energy-Efficient with Low Power Consumption
• Extremely Low Current Draw for Enhanced Efficiency
• Low Development Cost for Budget-Friendly Solutions
• Delivers Stable Performance Every Time
• Continuous Uniform Segments for Consistent Display
• Long Lifetime Ensuring Durability and Performance
• Easy Assembly for Quick Installation
• IC Compatible for Seamless Integration
• Certificate: RoHS Compliant

Application: Widely used for instrument panels,home appliances,digital temperature/humidity indicators and so on.

Product Parameters

Absolute Maximum Ratings(Ta=25ºC)

​

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

​Code:Yellow Green- J

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

​Code:Amber/Yellow -Y

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

​Code:Orange -F

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

​Code:Super Bright Red -R

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

​Code:Ultra Bright Red -UR

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

​Code:Pure Green -G

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

​Code:Ultra Bright Blue -BH

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

​Code:Ultra Bright White -WH

​

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
