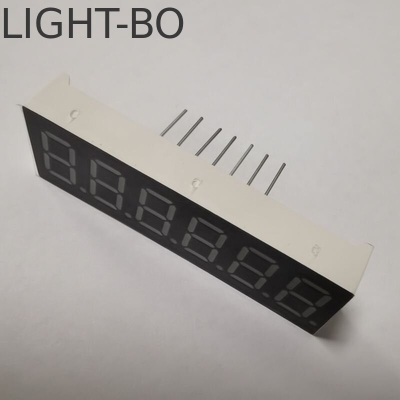

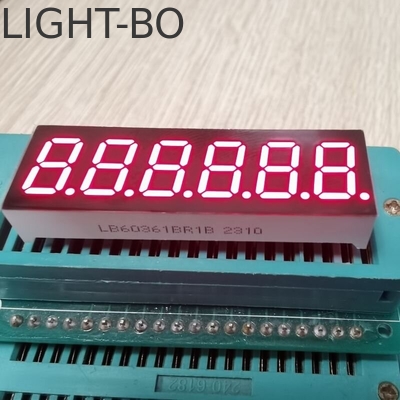

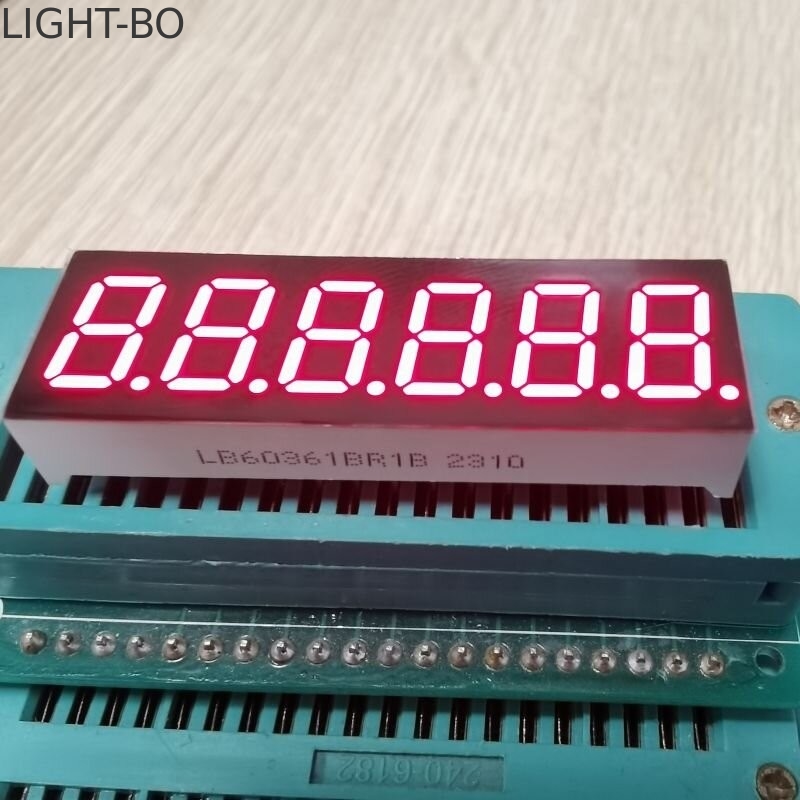

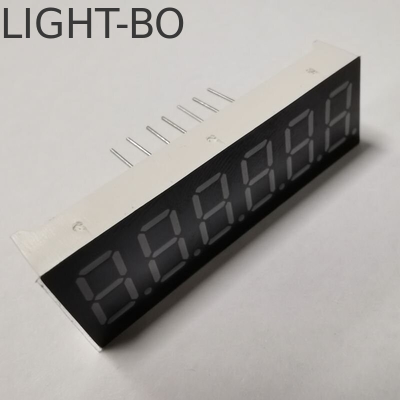

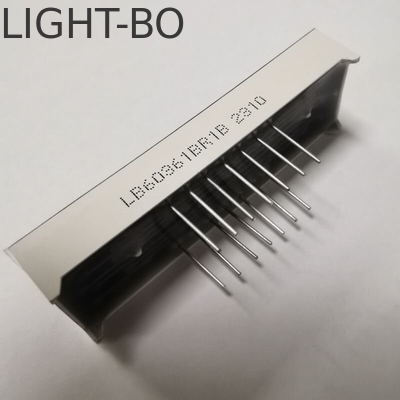

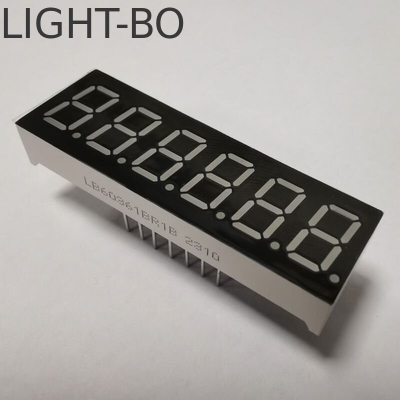

Super Bright Red 7 Segment LED Display 6 Digit 0.36inch Common Anode

Name: Super Bright Red 7 Segment LED Display 6 Digit 0.36inch Common Anode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB60361BR1B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB60361BR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Application:

Process Controller

Operating Temperature:

-45-80℃

Life Span:

100000hours

Color:

Super Bright Red

Oem:

Yes

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

Process Controller 7 Segment LED Display

0.36inch 7 Segment LED Display

Product Description

6-Digit 7-Segment LED Display - 0.36 Inch Super Bright Red

This 6-digit 7-segment LED display is engineered for high-precision, multi-digit numeric readouts in compact devices. Featuring a 9.2mm (0.36-inch) digit height, slim outer dimensions (43.5*14.0*7mm), and vivid super bright red emission, it delivers exceptional visibility and performance.

Key Specifications

Specification	Details
Display Type	6-digit 7-segment LED numeric display
Digit Height	9.2mm (0.36-inch)
Outer Dimensions	43.514.07mm
Polarity	Common Anode
Surface/Segment Design	White segments + black surface
Emitting Color	Super bright red (630-635nm wavelength)
Additional Colors	Blue, yellow green, pure green, amber, orange, yellow, white
Luminous Intensity	50-60mcd
Forward Voltage	1.8-2.2V
Forward Current	Extremely low
Compliance	RoHS-certified
Compatibility	IC-compatible (74HC595, TM1638, etc.)

Core Product Features

High Contrast & Targeted Visibility

White segments on black surface eliminate ambient light reflection, ensuring sharp 6-digit values remain clearly visible in various lighting conditions. Super bright red emission (630-635nm) provides optimal visibility without causing glare.

Energy Efficiency & Cost Savings

Low power consumption and extremely low current minimize energy draw, extending battery life in portable devices by 30-40% compared to higher-current displays. Compatible with standard common anode circuits for reduced development costs.

Durability & Uniform Performance

Continuous uniform segments ensure even light distribution across all 6 digits, eliminating dark spots or faded edges. Built with high-quality LED chips supporting 50,000+ hours of continuous operation.

Easy Integration & Versatility

Common anode polarity matches standard circuit designs, simplifying PCB integration. Slim 43.5*14.0*7mm form factor enables direct mounting in dense instrument panels. Available in 7 additional colors for various applications.

Target Applications

Instrument Panels: Industrial pressure gauges, flow rate monitors, production counters
Home Appliances: Smart refrigerators, microwaves, electric ovens
Digital Temperature/Humidity Indicators: Warehouse monitors, weather stations, HVAC controls
General Numeric Displays: Retail price tags, digital scales, battery chargers

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green (J)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd
Wavelength	Dλ	If=10mA	569	574	nm

Amber/Yellow (Y)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	585	595	nm

Orange (F)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	600	605	nm

Super Bright Red (R)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	50	60	mcd
Wavelength	Dλ	If=10mA	630	635	nm

Ultra Bright Red (UR)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	80	100	mcd
Wavelength	Dλ	If=10mA	625	635	nm

Pure Green (G)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	180	mcd
Wavelength	Dλ	If=10mA	515	525	nm

Ultra Bright Blue (BH)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	140	mcd
Wavelength	Dλ	If=10mA	460	465	nm

Ultra Bright White (WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)

Established in 2006, we are an ISO 9001:2015 certified manufacturer specializing in R&D, manufacturing and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, we provide high-quality, cost-effective customized solutions to help customers reduce costs and enhance competitiveness.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostats indicators, heating and cooling control systems.

Certifications

Company Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal for small amounts. Payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly from our website for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc. You can choose the method that works best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing of all products before shipment.
