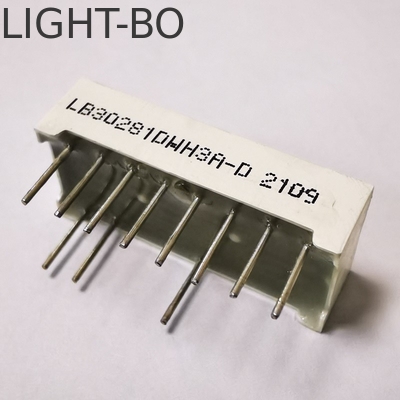

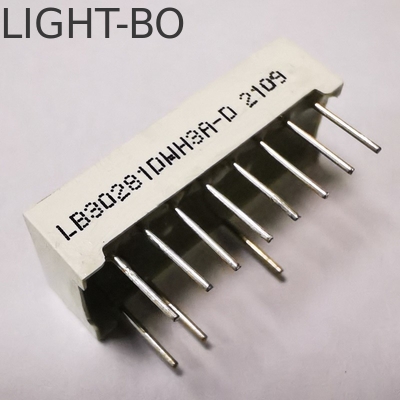

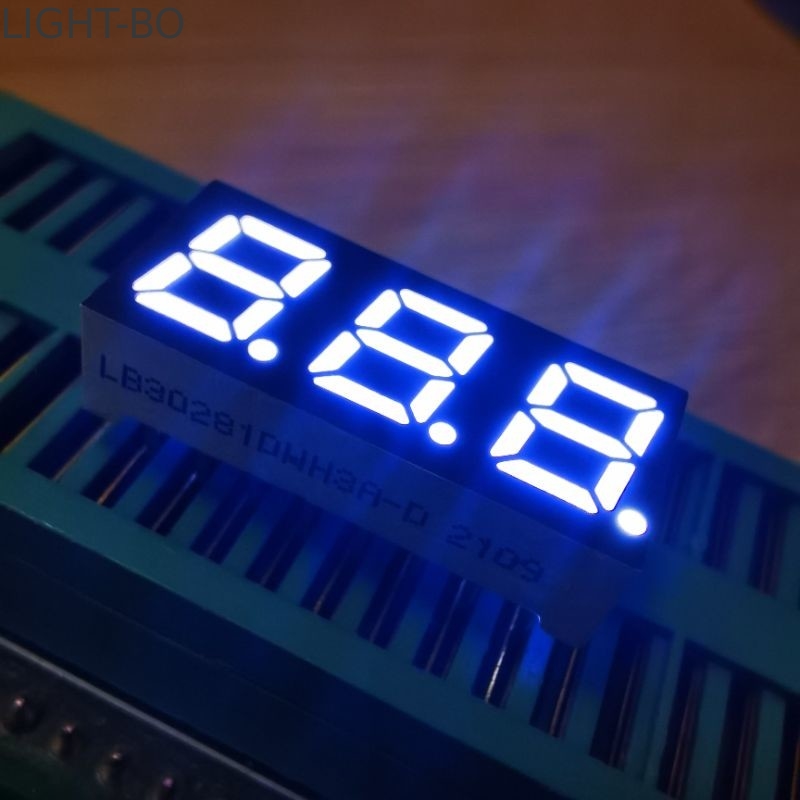

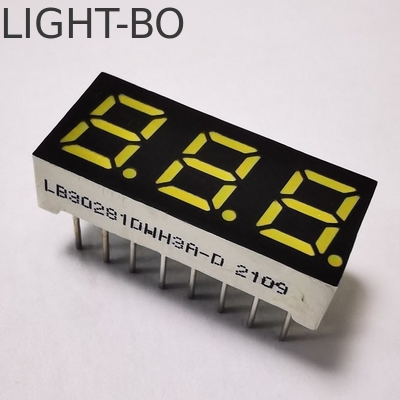

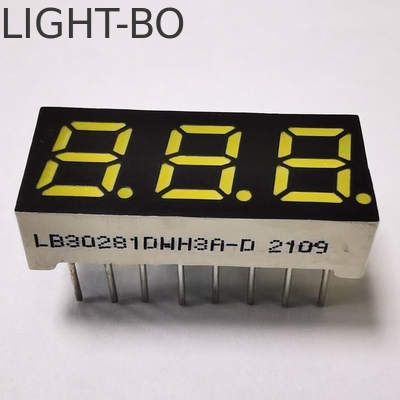

Triple Digit 0.4inch 7 Segment LED Display Ultra Bright White

Triple Digit 0.4inch 7 Segment LED Display Ultra Bright White

Brand Name:	LIGHT-BO
Model Number:	LB30401LWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Application:

Coffee Maker Machine

Outer Dimensions:

30.1*16*7mm

Usage:

Indoor

Color:

Ultra Bright White

Digits:

Polarity:

Common Cathode

Digit Height:

10.16mm

Operating Temperature:

-45-80℃

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Highlight:

0.4inch 7 Segment LED Display

White 7 Segment LED Display

Product Description

Triple Digit 0.4inch 7 Segment LED Display Ultra Bright White

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	100		140	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature		If=10mA	6000		6500	K

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
