0.36" 3 Digit 7 Segment LED Display Common Anode for Temperature/Humidity Indicator

Name: 0.36" 3 Digit 7 Segment LED Display Common Anode for Temperature/Humidity Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.

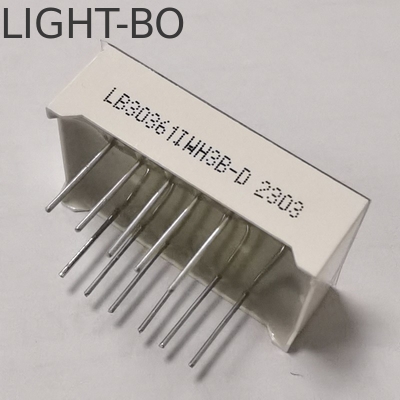

SKU: LB30361IWH3B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB30361IWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Features:

Competitive Price With High Quality

Outer Dimensions:

22.5*14*7.2 Mm

Usage:

Digital Clock Indicators And So On

Digital Number:

1,2,3,4,5,6......

Character Height:

0.36"( 9.2mm)

Surface:

Yellow Epoxy Black Surface

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

0.36” 7 Segment LED Display

Humidity Indicator 7 Segment LED Display

Temperature 7 Segment LED Display

Product Description

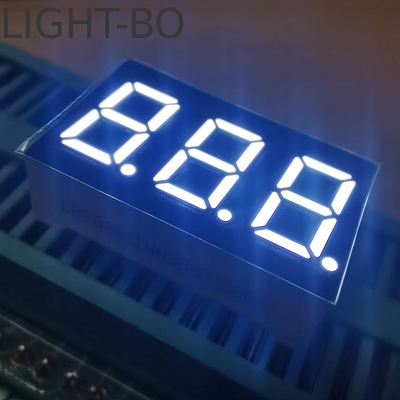

0.36" 3 Digit 7 Segment LED Display

Common Anode for Temperature/Humidity Indicator

Product Overview

Character height: 0.36" (9.2mm)

Outer dimensions: 22.5 × 14 × 7.2 mm

Polarity: Common anode

Yellow Epoxy black surface

Ultra bright White

Emitting colors: red, blue, green, white, amber, orange and yellow

Technical Specifications

Yellow Green (Code: J/JU)

Vibrant yellow green display for enhanced visual appeal and design flexibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing a cozy glow for enhanced viewer engagement.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Vibrant orange color for energetic and attention-grabbing displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Captivating super bright red for maximum visibility and impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Intensely luminous red for unparalleled visibility and commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing crisp green ideal for eco-friendly designs and sustainability themes.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant cool blue for modern, sophisticated display aesthetics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white for unrivaled clarity, brilliance and distinguished appearance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Advanced LED display technology ensuring optimal performance and reliability under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO)

Established in 2006, we are an ISO 9001:2015 certified manufacturer with over 15 years of expertise in OEM and ODM solutions. Our commitment to innovation and superior quality has built a legacy of trust and cutting-edge technology.

LIGHTBO provides top-tier, cost-efficient custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic market landscapes.

Product Applications

Our state-of-the-art 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays are meticulously crafted for diverse applications including:

Household appliances with modern aesthetics
Temperature and humidity indicators
Refrigerator controllers and thermostats
HVAC systems and control panels

Certifications & Facilities

Office and Factory Overview

Company Exhibitions

Shipping & Logistics

Various transportation methods available for global shipping

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Standard delivery time is 10-20 days, depending on order quantity and material availability. Urgent orders with available materials can be ready in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We provide quotes based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We customize sizes, LED colors, and functional icons according to requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold costs and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
