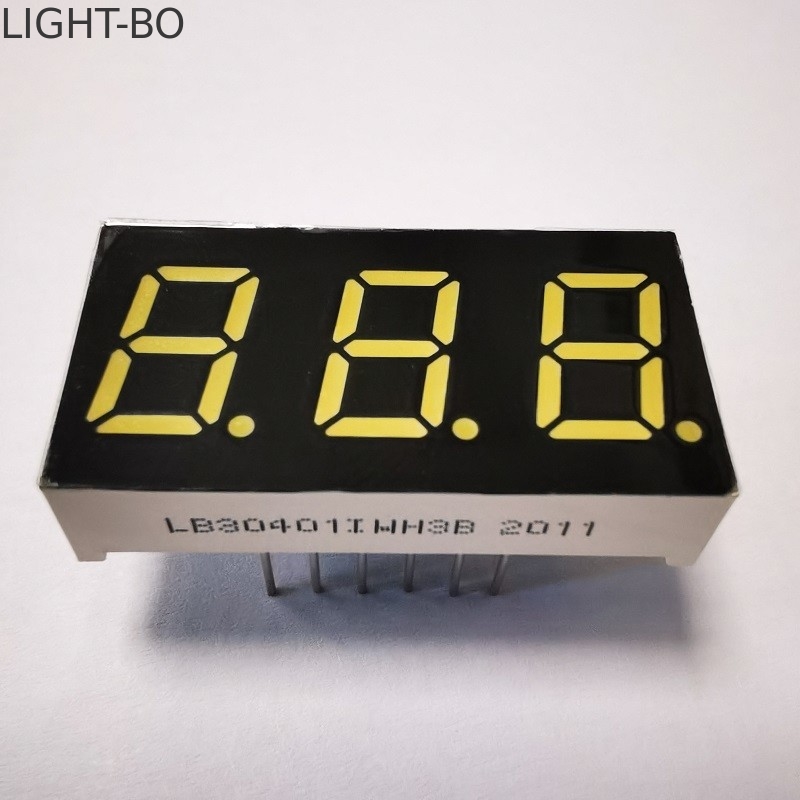

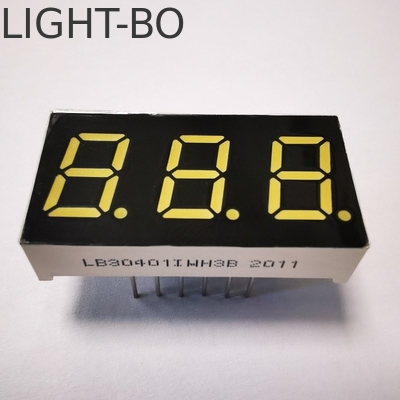

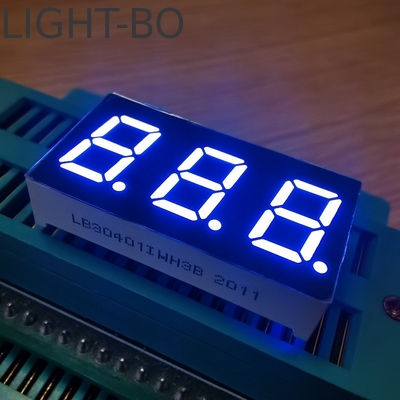

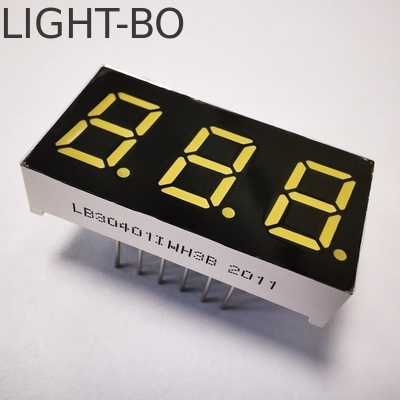

Triple Digit White7 Segment LED Display Common Cathode for Temperature Indicator

Triple Digit White7 Segment LED Display Common Cathode for Temperature Indicator

Brand Name:	LIGHT-BO
Model Number:	LB30401LWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Application Range:

Electrical Screen, Advertising

Interface Type:

Common Cathode

Outer Dimension:

30.1*16*7MM

Material:

PCB,Epoxy,LED Chip,plastic

Color:

Ultra Bright White

Character Height:

0.4"( 10.16mm)

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

0.4inch 7 Segment LED Display

Triple Digit 7 Segment LED Display

Common Cathode 7 Segment LED Display

Product Description

Triple Digit 7 Segment led display 0.4inch Common Cathode Ultra White for Temperature Indicator

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1*16*7MM

Polarity: Common cathode

Yellow Epoxy black surface

Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1;raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS
