Super Bright Red Common Cathode 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Super Bright Red Common Cathode 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Brand Name:	LIGHTBO
Model Number:	LB4722FR1B-T2
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Polarity:

Common Cathode

Transport Package:

EPE+Carton

LED Color:

Red

Location:

Shenzhen

Character Height:

9.92mm ( 0.38")

Input Voltage:

1.7~2.6V

Operating_Temperature:

-40°C To +85°C

Dimension:

49*15*8mm

Power_Consumption:

Low Power

Outline Dimension:

30.1*16*7MM

Ip Rating:

IP54

Digital Height:

20.32mm (0.80 Inch)

Digit Height:

0.23inch

Epoxy Color:

White / Clear

Package:

DIP

Type:

Standard

Feature:

Dual-Digit,Fast Heat-dissipation

Material:

Epoxy Resin

Item No:

ULT-3361AX/BX

Emitting Color:

Super Bright Red

Delivery Date:

7-15DAY

Display Color:

Red/Green/Blue/Yellow/White

Dimensions:

43.5 X 14.0 X 7mm

Light Points:

Elegant Design ,exquiste Craftmanship

Voltage:

1.8-2.4/2.8-3.4v

Operating Temperature:

-35 ~ +85 ℃,-20 +85,-40~80 ℃,-45-80℃

Package Dimensions:

61*43*20mm

Life Span:

80000hours

Wavelength:

515-525NM

Forward Voltage:

2.8-3.3V/led

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

3 Digit 7 Segment LED Display

Super Bright 7 Segment LED Display

Product Description

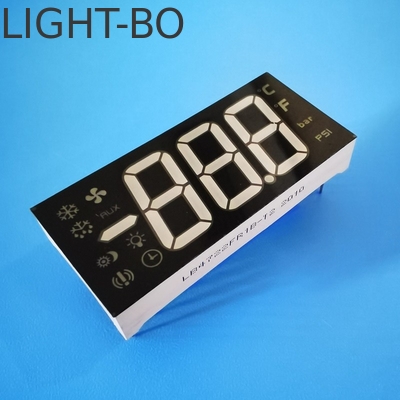

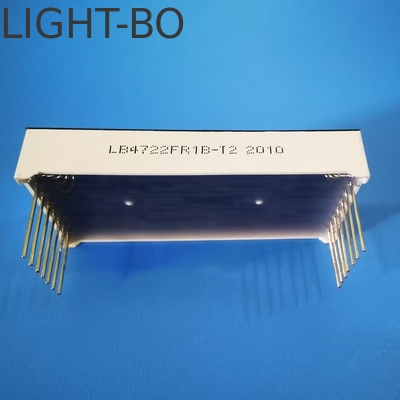

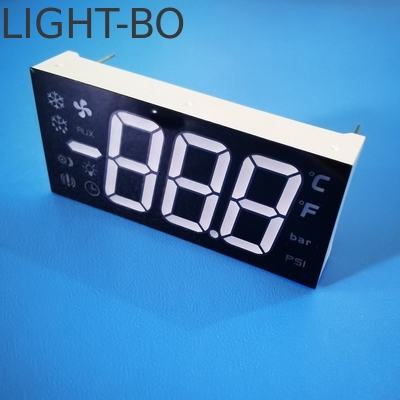

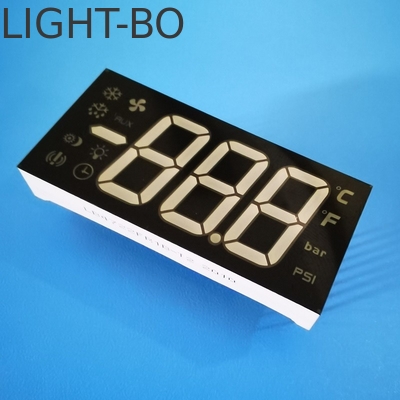

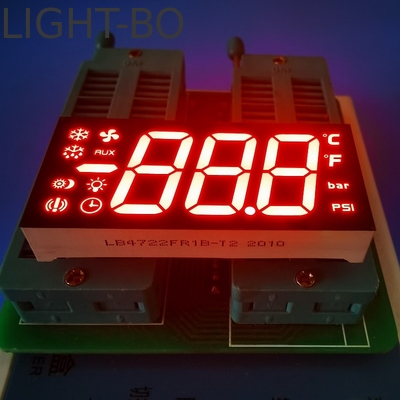

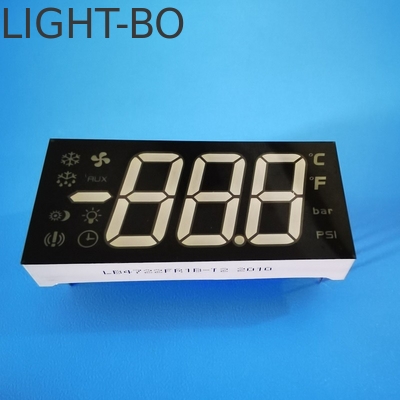

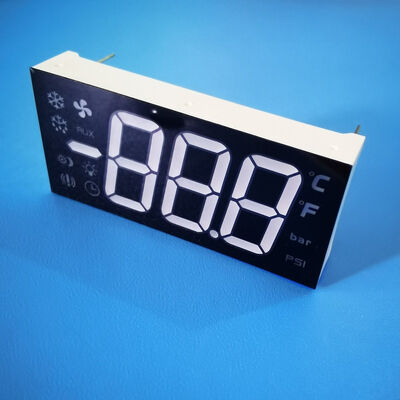

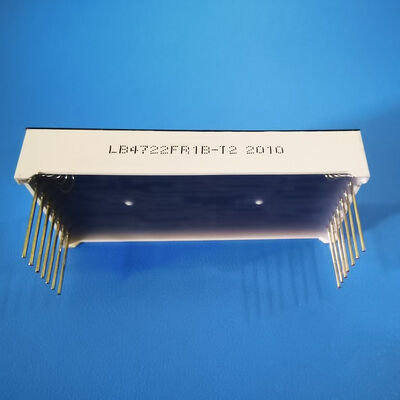

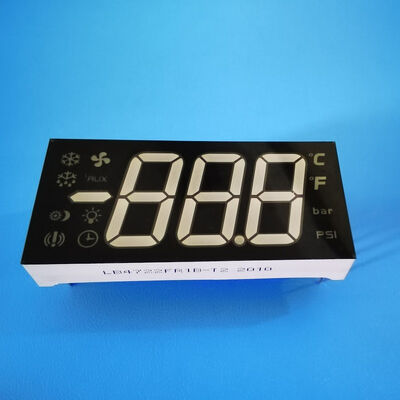

Super Bright Red Common Cathode 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Product Overview

High-performance 3-digit 7-segment LED display designed specifically for refrigeration control panels, featuring super bright red illumination and common cathode configuration.

Package dimension: 10×13×7mm
Character height: 9.9mm (0.39 inch)
Polarity: Common cathode
Color: Super bright red
Face color: Black/Grey
Wavelength: 630-635nm
Luminous intensity: 50-60mcd/dice
Forward voltage: 1.8-2.2V/led
Available colors: red, blue, yellow green, pure green, white, amber, orange, and yellow

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Technical Specifications by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control and more.
