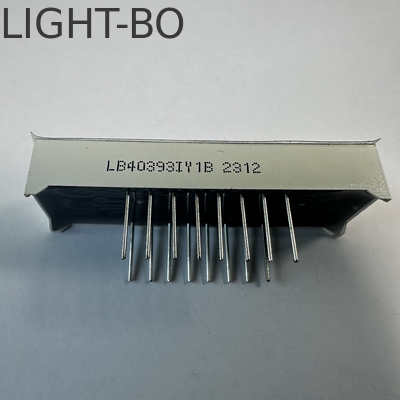

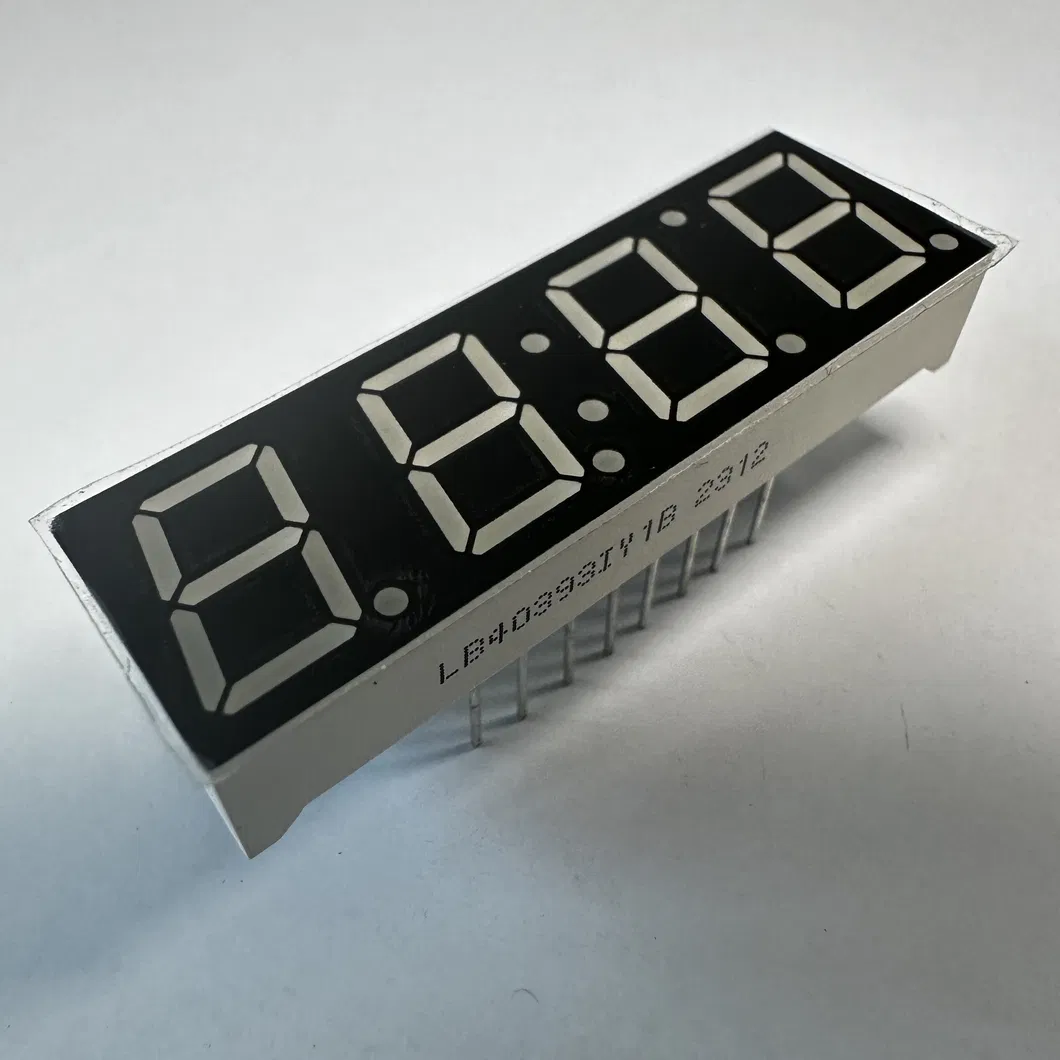

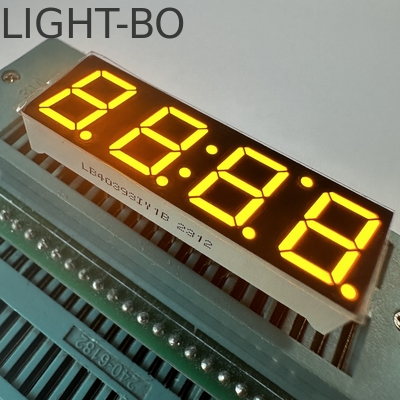

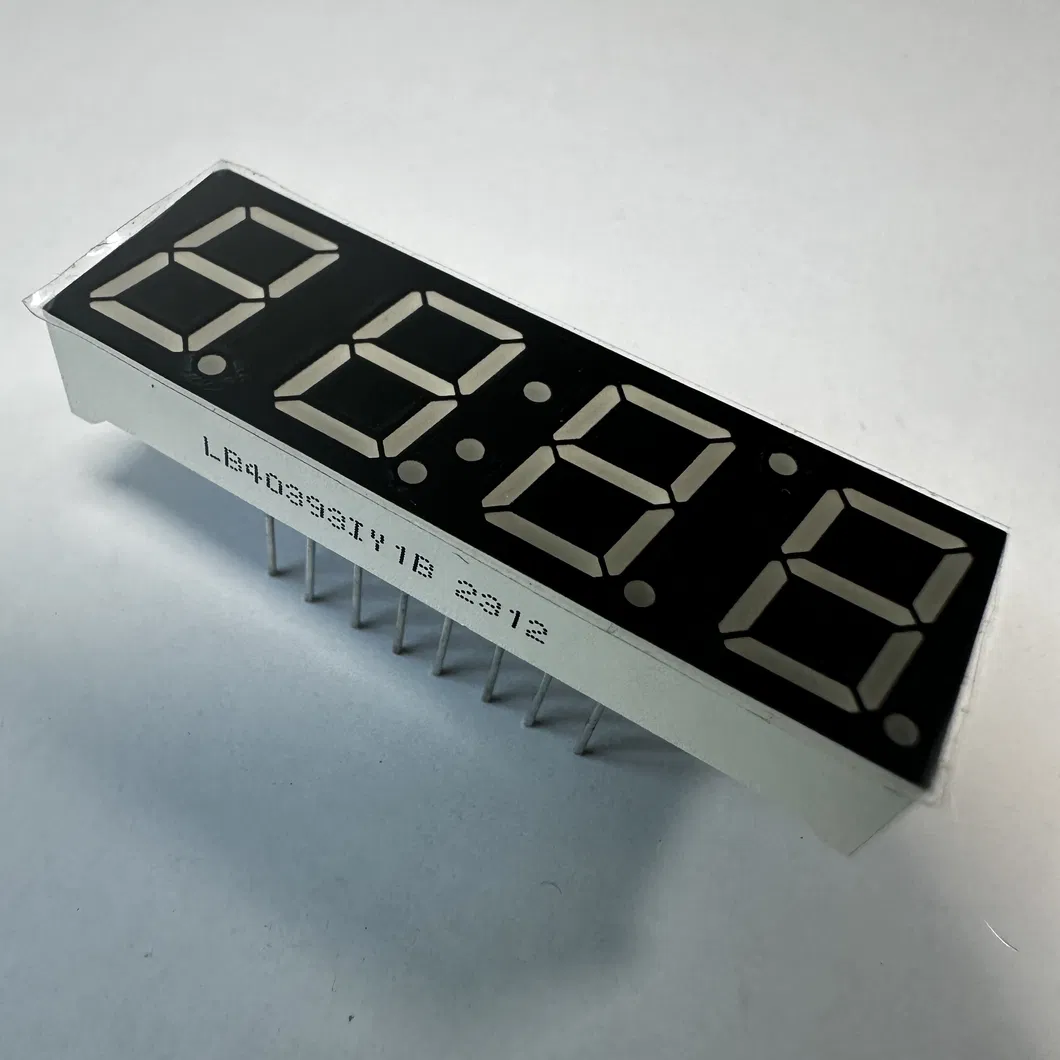

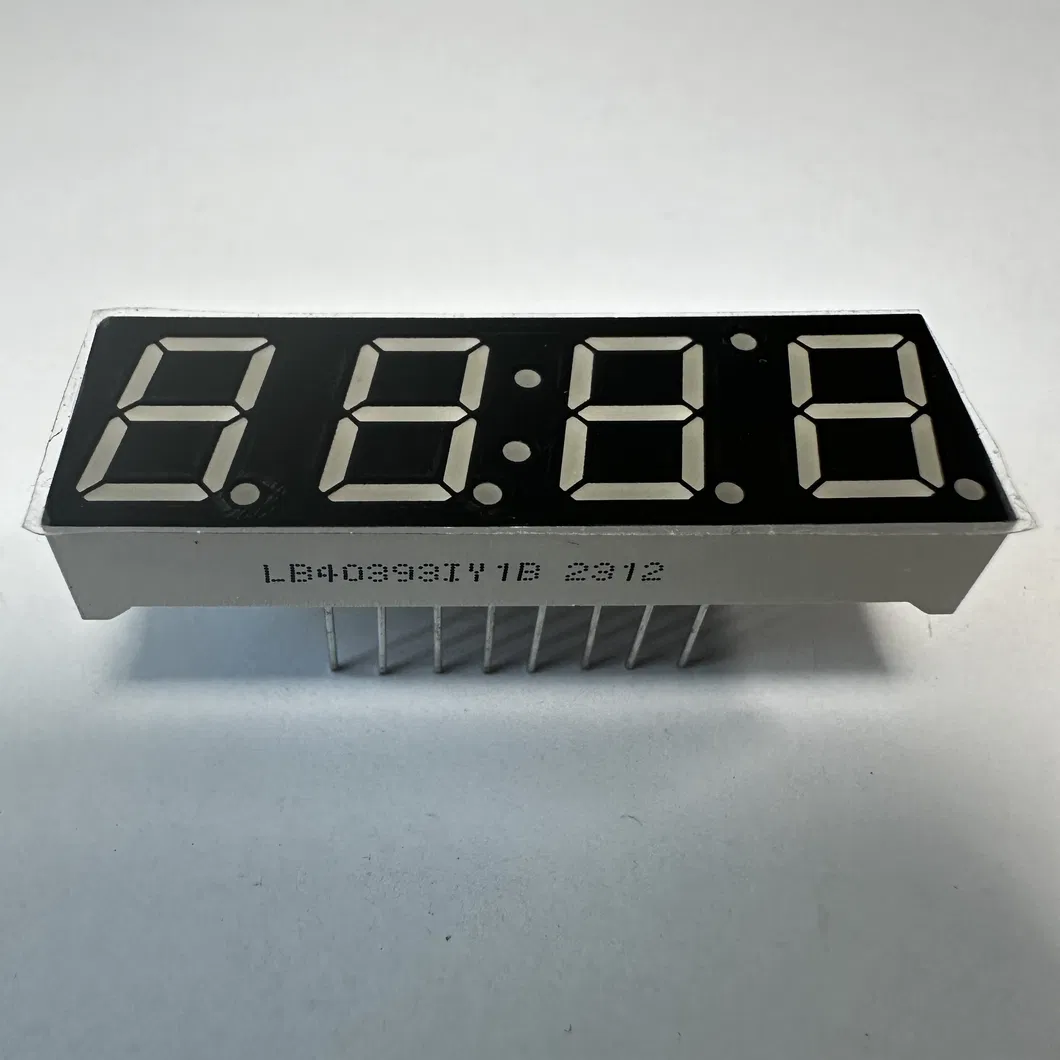

0.39"Yellow 7Segment LED Display Common Anode for Temperature Humidity Indicator

Name: 0.39"Yellow 7Segment LED Display Common Anode for Temperature Humidity Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40393IY1B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40393IY1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Features:

Competitive Price With High Quality

Forward Current:

5-10mA/LED

Digital Height:

9.9mm (0.39 Inch)

Package Dimensions:

40.18 X 12.8 X 7.2 Mm

Application:

Stage Performance, Shopping Guide, Home Applicates

Luminous Intensity:

50-60mcd

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

0.39inch 7 Segment LED Display

Super Bright 7 Segment LED Display

Product Description

0.39" Yellow 7-Segment LED Display - Common Anode

Super bright yellow 0.39-inch 4-digit 7-segment LED display with common anode configuration, specifically designed for temperature and humidity indicators.

Key Specifications

Package dimension: 40.18 x 12.8 x 7.2 mm
Character height: 9.9mm (0.39 inch)
Color: Super bright Yellow
Configuration: Common anode
Wavelength: 585-595nm
Luminous intensity: 50-60mcd
Forward voltage: 1.8-2.2V
Available colors: Red, blue, green, amber, orange, yellow, white

Product Features

High luminous intensity and reliability
Low power consumption
Extremely low current operation
Stable performance
Continuous uniform segments
Easy mounting on PC boards and sockets
IC compatible
Long lifetime
RoHS compliant

Applications

Widely used for set-top boxes, home appliances, temperature indicators, digital timers, instrument panels, and various industrial applications.

Technical Parameters

Yellow Green - J/JU

Vibrant yellow-green color option designed to enhance visual aesthetics and appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow hue providing excellent visibility and visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring optimal reliability under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing and global market advantages.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we also accept sample orders and small orders with quantity less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is typically 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can deliver within 7-10 days.
