0.4 Inch Super Bright Red 7 Segment LED Display Triple Digit Common Anode

0.4 Inch Super Bright Red 7 Segment LED Display Triple Digit Common Anode

Brand Name:	LIGHT-BO
Model Number:	LB30401IR1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Application:

Coffee Maker Machine

Polarity:

Common Anode

Operating Temperature:

-45-80℃

Outer Dimensions:

30.1*16*7mm

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Digits:

Life Span:

100000hours

Color:

Super Bright Red

Oem:

Yes

Digit Height:

0.4

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

Durable 7 Segment LED Display

Product Description

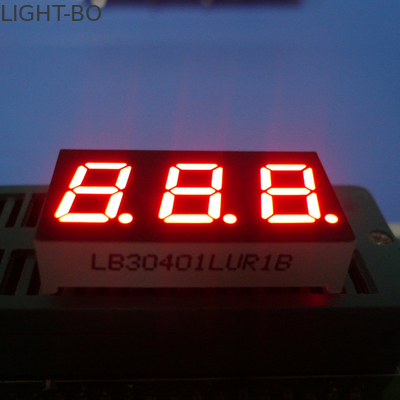

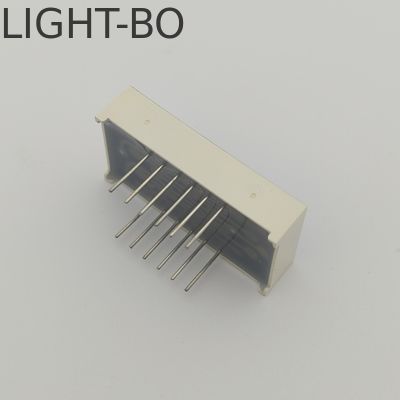

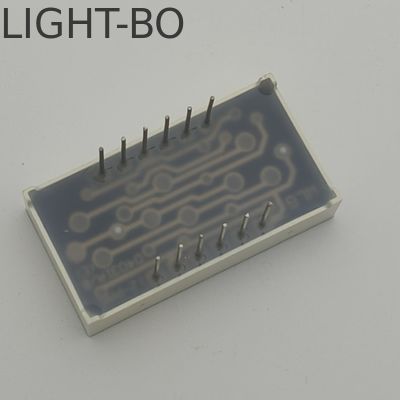

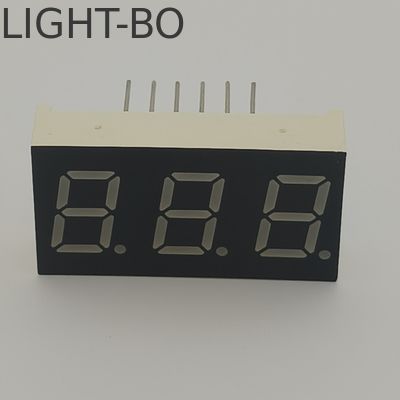

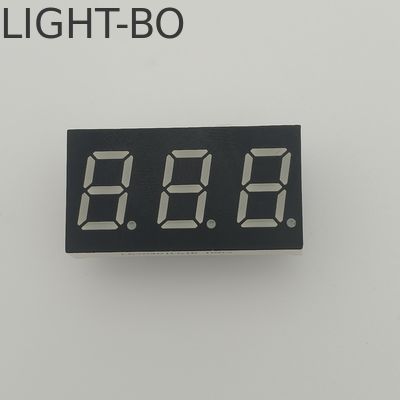

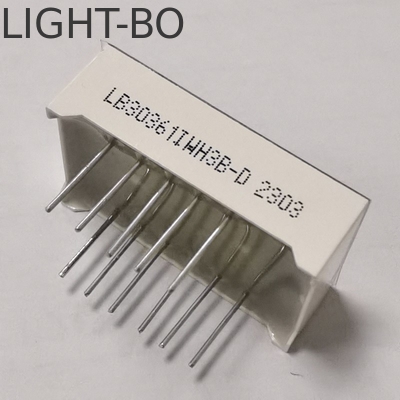

0.4 Inch Super Bright Red 7 Segment LED Display Triple Digit Common Anode

Product Description:

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1*16*7MM

Polarity: Common cathode

Yellow Epoxy black surface
Super Bright Red

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

0.4 Inch Super Bright Red 7 Segment LED Display Triple Digit Common Anode 0

0.4 Inch Super Bright Red 7 Segment LED Display Triple Digit Common Anode 1
