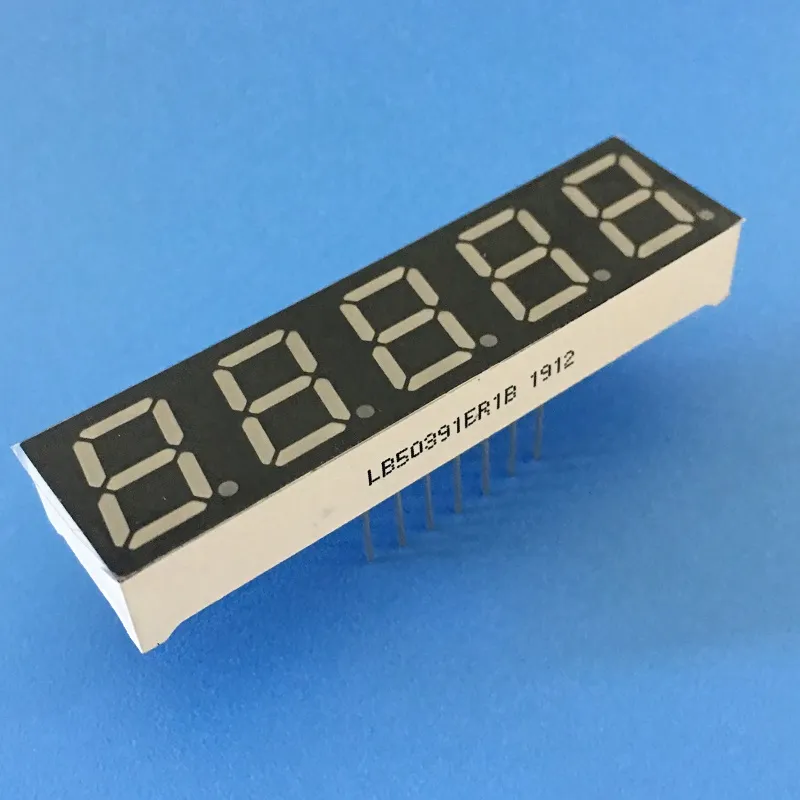

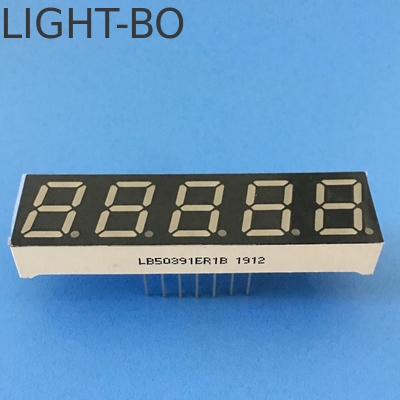

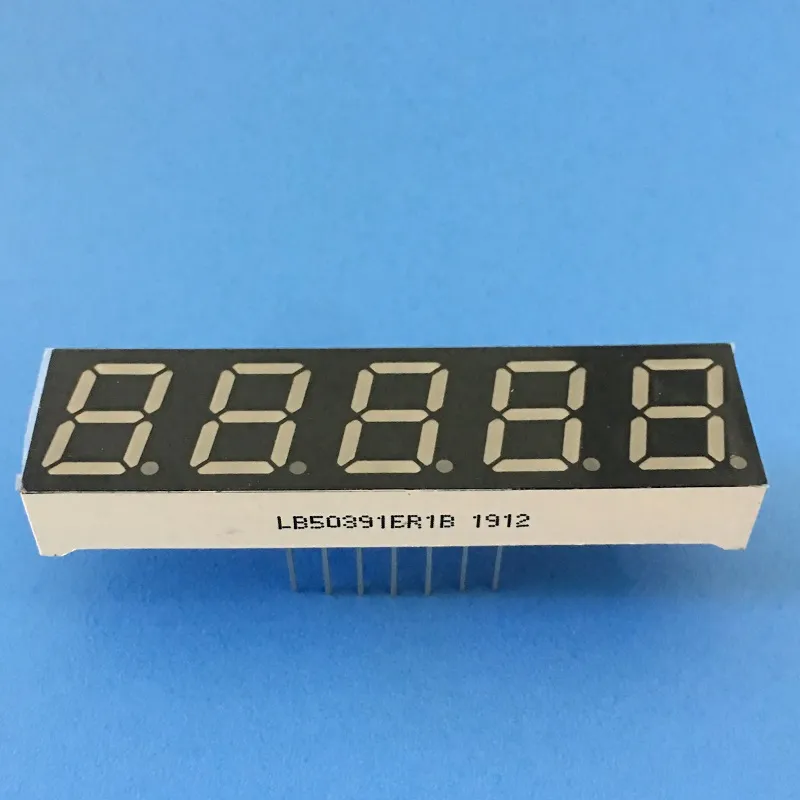

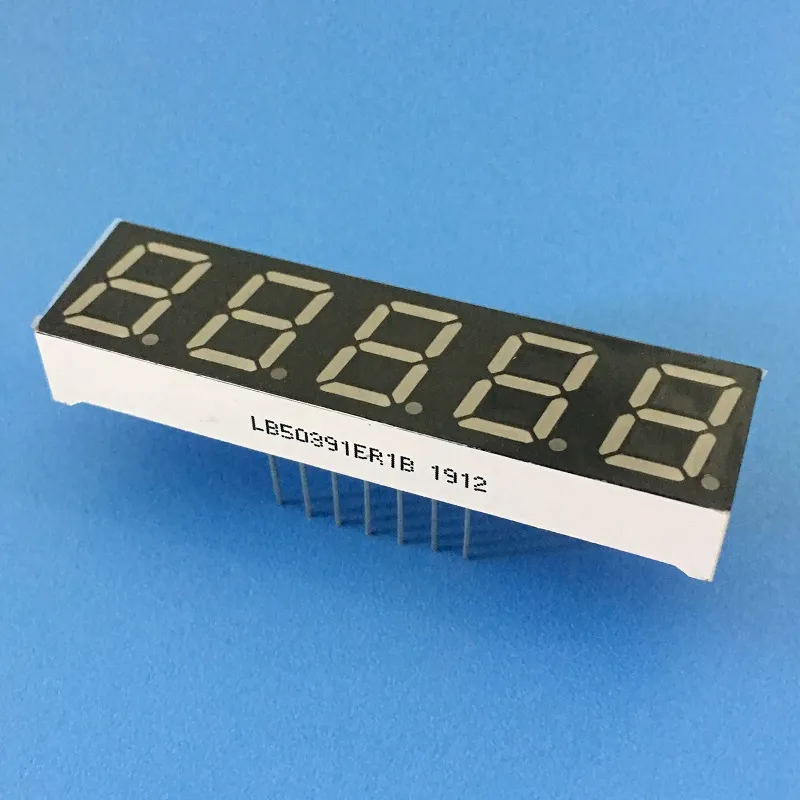

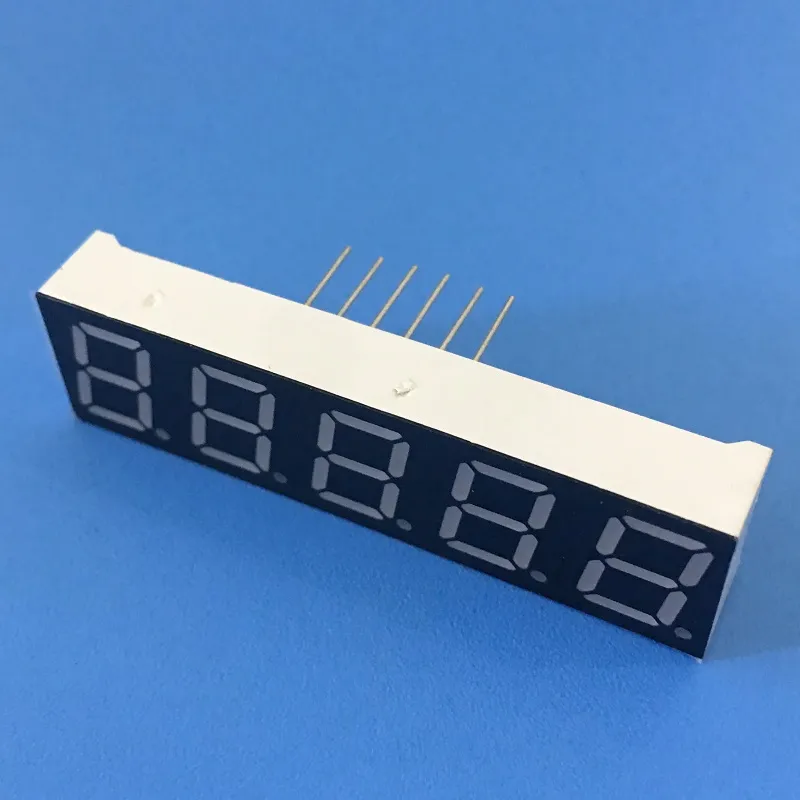

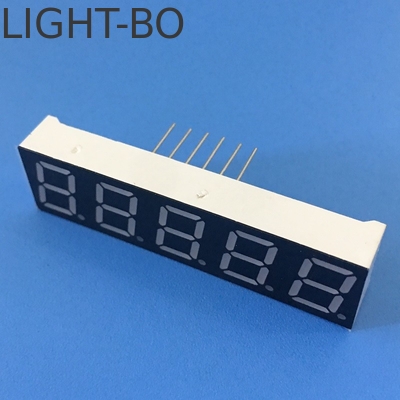

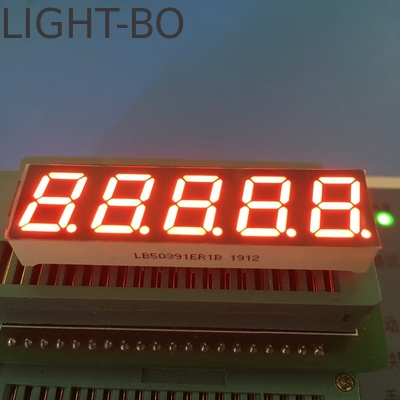

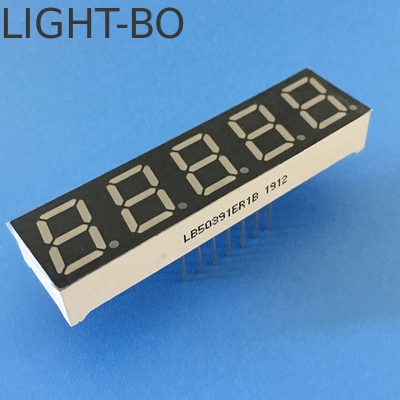

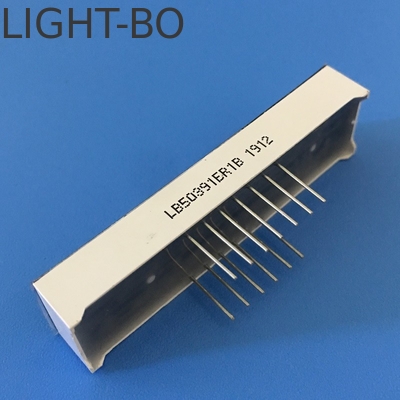

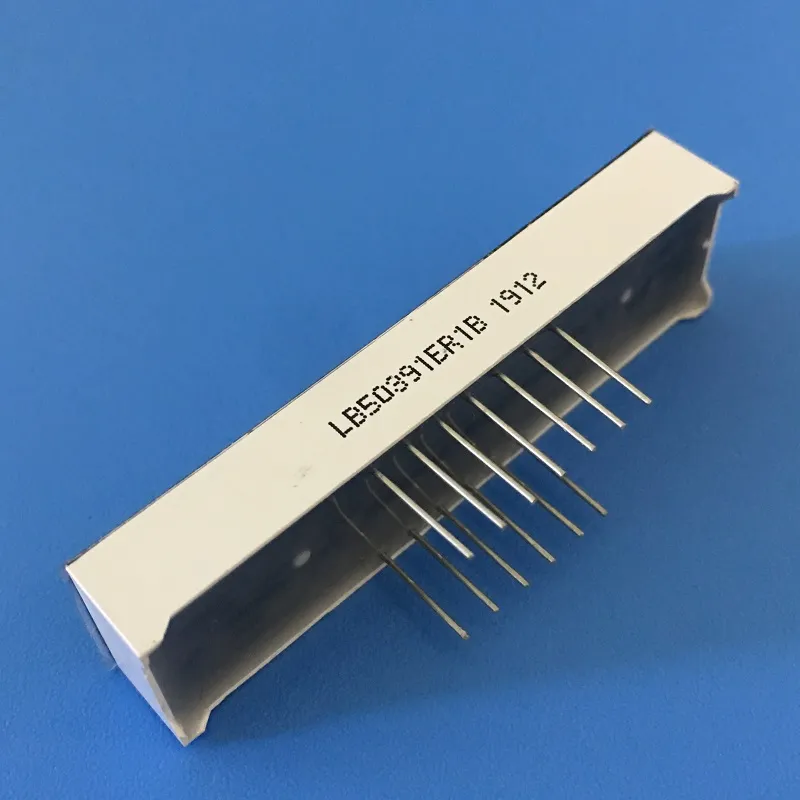

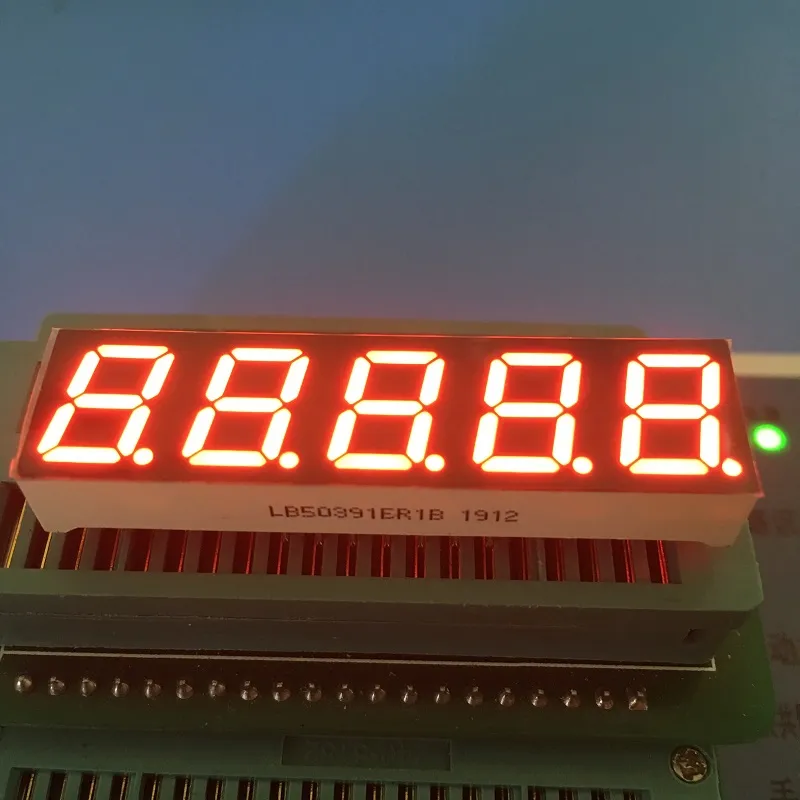

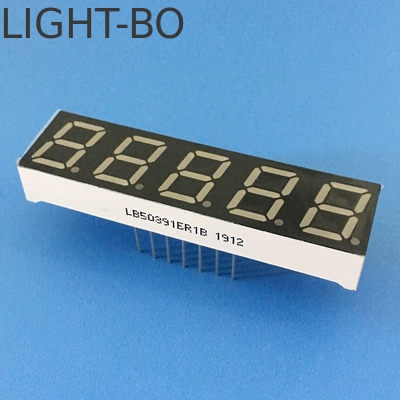

7 Segment LED Display 0.39inch 5 Digit common Anode Super bright red for digital frequency convertor

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 0

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 0

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 1

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 2

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 3

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 4

Super Bright Red 7 Segment LED Display 0.39inch 5 Digit Common Anode for Digital Frequency Convertor 5

Specifications:
Display: 5 digit, 0.39 inch 7 segment led display
Charcter height: 10mm (0.39 inch)
Outer dimensions: 49*12.9*7.3 mm
white segments black surface
With common anode
Emitting color: super bright red
Luminous intensity: 50-60 mcd
Forward voltage: 1.8-2.2V/led
Forward current:5-10mA/led
Colors: red, blue, yellow green, pure green, amber, orange and pure white

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Feature of Segment LED Displays

--White segment Black surface

--High luminous intensity

--Low current operation

--Stable performance

--Continuous uniform segments

--Easy mounting on PCB

--IC compatible

--RoHS compliant
Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 20"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment,14segment and16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red
