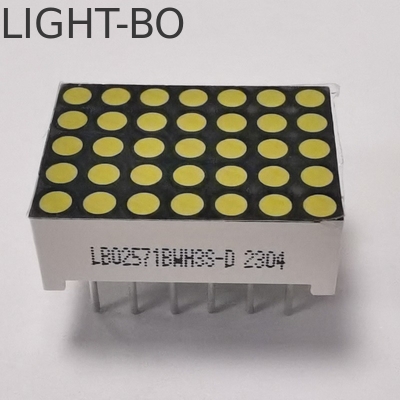

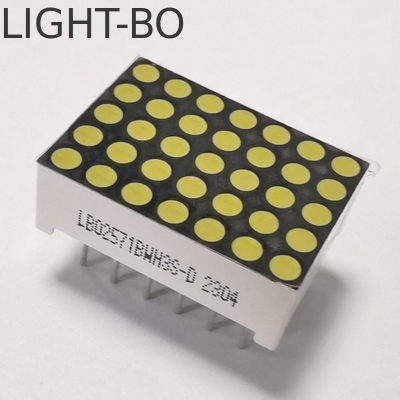

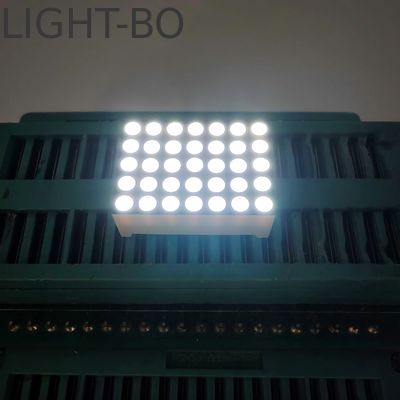

0.7inch 5 X 7 DOT Matrix Ultra White LED Display for Lift Floor Number Indicator

Name: 0.7inch 5 X 7 DOT Matrix Ultra White LED Display for Lift Floor Number Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB02571EWH3S-D
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB02571EWH3S-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Features:

Competitive Price With High Quality

Specification:

12.7 X 17.8 X 6.3 Mm

Brightness:

High

Polarity:

Row Cathode Column Anode

Application:

Lift Position Indicator

Description:

Excellent Dot Uniformity

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

5 X 7 DOT Matrix LED Display

Ultra Bright DOT Matrix LED Display

0.7inch DOT Matrix LED Display

Product Description

0.7inch 5 X 7 DOT Matrix Ultra White LED Display for Lift Floor Number Indicator

Product Overview

High-performance 0.7-inch 5x7 dot matrix ultra white LED display specifically designed for lift floor number indicators and industrial applications.

White segment with black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Applications

Audio equipment and instrument panels
Digital indicators and displays
Multimedia products
Bank exchange rate displays
LED clock displays
Gas station equipment displays
Industrial ovens and reliability test equipment
Analytical instruments and process control equipment
Test and measuring instruments
Temperature controllers and programmable logic controllers
Security systems

Product Specifications

Digit sizes available: 0.25" to 20"
Digit numbers: 1, 2, 3, 4, 5 and 6 digits
Segment types: 7 segment, 14 segment and 16 segment
Available emitting colors: Red, Yellow-green, Green, Blue, Yellow, Pink, White, Bi-color
Available surface colors: Black, Gray, Red

Technical Parameters

Yellow Green (Code: J/JU)

Vibrant yellow-green LED with excellent visibility and aesthetic appeal for various display applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing excellent visibility with a comfortable glow.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Energetic orange color offering high visibility and visual impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

High-intensity red LED for maximum visibility and attention-grabbing displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Maximum intensity red LED with unparalleled brightness and visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green LED ideal for eco-friendly designs and natural aesthetic applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant blue LED providing modern, sophisticated visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Premium white LED offering exceptional clarity and sophisticated appearance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25°C)

Advanced LED display technology ensuring optimal performance and reliability under demanding conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

About Manufacturer

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions built on a foundation of trust and technical expertise.

LIGHTBO provides cost-efficient custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic industry landscapes.

Product Applications

Our state-of-the-art 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays are engineered for seamless integration across diverse applications. Ideal for modern household appliances, precise temperature and humidity readings, refrigerator controllers, thermostats, and HVAC systems, delivering superior performance and unmatched quality.

Certifications & Facilities

Company Exhibitions

Shipping & Logistics

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Standard delivery time is 10-20 days, depending on order quantity and material availability. Urgent orders with available materials can be completed in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes, we provide quotes based on EXW, FOB, CIF, and DDP incoterms.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate prices?

A: Yes, we offer discounts for bulk orders.

Q10: How much are the shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Can you do custom design products?

A: Yes, we provide OEM & ODM services and can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for custom product samples?

A: Custom samples typically take 20-25 working days after receiving mold costs and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, air freight, and sea freight. Customers can choose their preferred method.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
