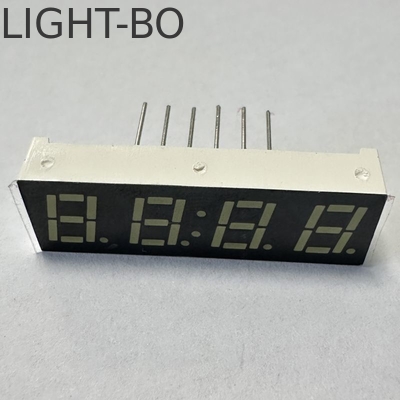

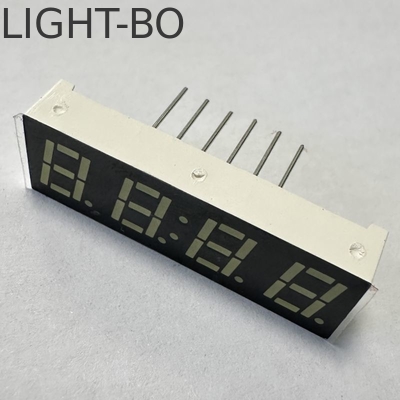

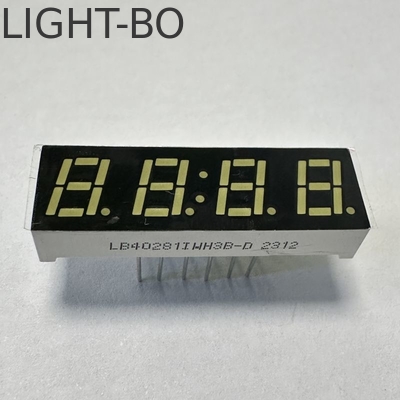

LED Display 7mm Ulrta Bright White 4 Digit 7segment Common Cathode for Multimeter Panel

LED Display 7mm Ulrta Bright White 4 Digit 7segment Common Cathode for Multimeter Panel

Brand Name:	LIGHT-BO
Model Number:	LB40281LWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Features:

Low Power Consumption, High Reliability

Polarity:

Common Cathode

Usage:

Fuel Gauge And Car Parking Sensor

Voltage:

2.8-3.2V/LED

Life Span:

500000hours

Service:

OEM / ODM Acceptable

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Multimeter Panel 7segment LED Display

7mm 7segment LED Display

4 Digit 7segment LED Display

Product Description

ULRTA BRIGHT WHITE LED DISPLAY 7MM 4 DIGIT 7SEGMENT COMMON CATHODE For Multimeter Panel

Product Description:

4 Digit 7 Segment LED Display

Character height: 0.28"( 7.mm)

Outer dimensions: 32.1*10.1*5.8mm

Polarity: Common cathode

White Epoxy black surface

Ultra bright WHITE LED

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		140	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Color Temperature		If=20mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Feature of Segment LED Displays

--White segment Black surface

--High luminous intensity

--Low current operation

--Stable performance

--Continuous uniform segments

--Easy mounting on PCB

--IC compatible

--RoHS compliant

Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1；raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS
