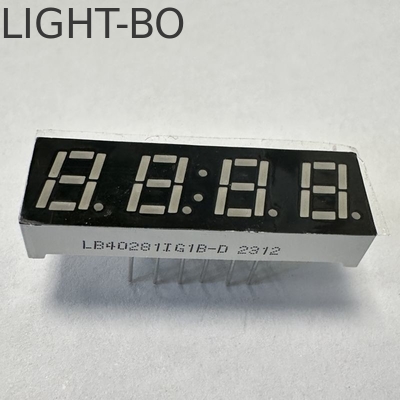

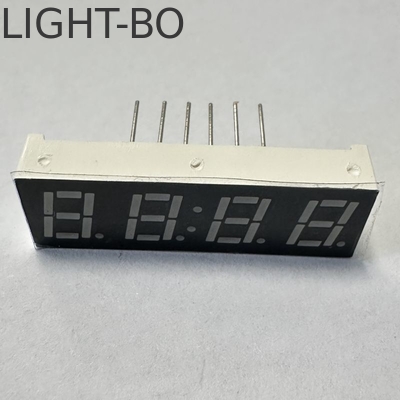

LED Display 7 Segment 4 Digit Pure Green Common Cathode for Temperature Humidity

LED Display 7 Segment 4 Digit Pure Green Common Cathode for Temperature Humidity

Brand Name:	LIGHT-BO
Model Number:	LB40281LG1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Features:

Low Power Consumption, High Reliability, Easy To Use

Surface:

White Epoxy Black Surface

Specification:

32.1*10.1*5.8mm

Pixels:

0.28"( 7.mm)

Face Color:

Black

Package Type:

DIP, SMD

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Temperature Humidity 7 Segment LED Display

Pure Green 7 Segment LED Display

4 Digit 7 Segment LED Display

Product Description

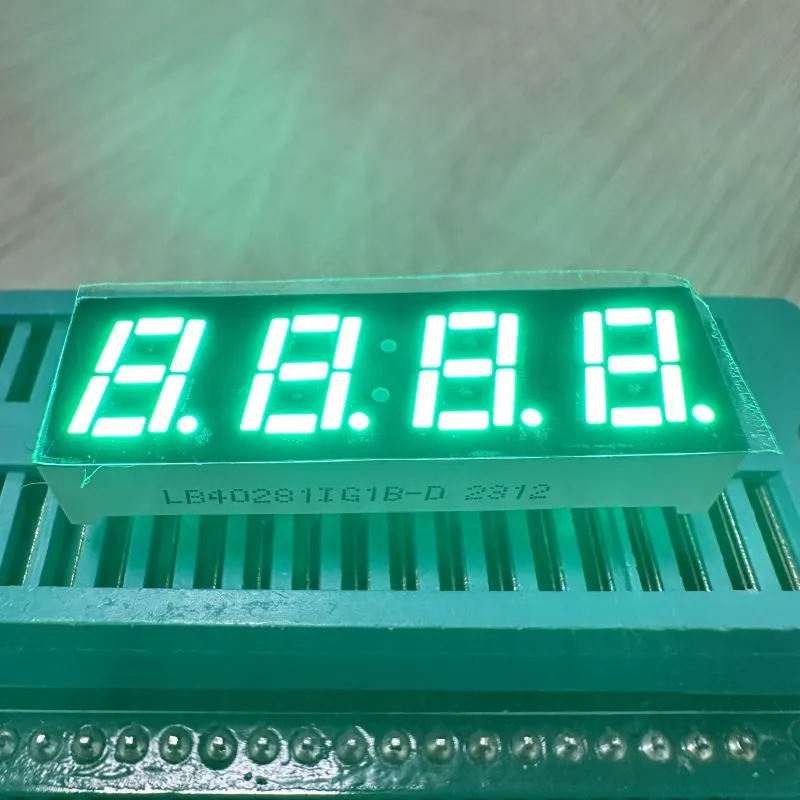

Pure Green 4 Digit 7mm LED Display 7 Segment Common Cathode for temperature controller

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.3	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		630	nm

Product Description:

4 Digit 7 Segment LED Display

Character height: 0.28"( 7.mm)

Outer dimensions: 32.1*10.1*5.8mm

Polarity: Common cathode

White Epoxy black surface

Pure Green LED

Emitting colours: red, blue, green, white, amber, orange and yellow

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		140	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Color Temperature		If=20mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.
