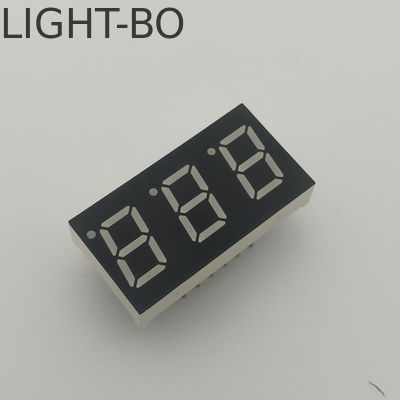

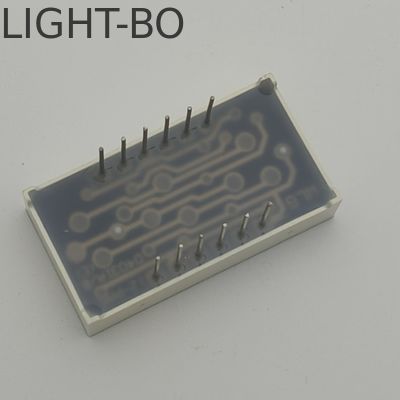

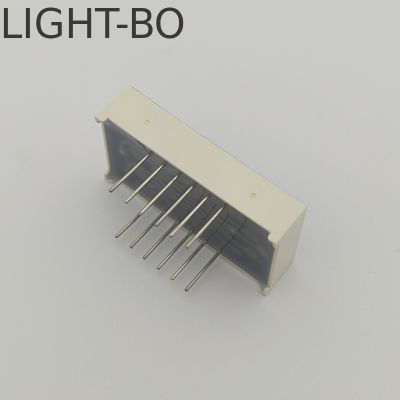

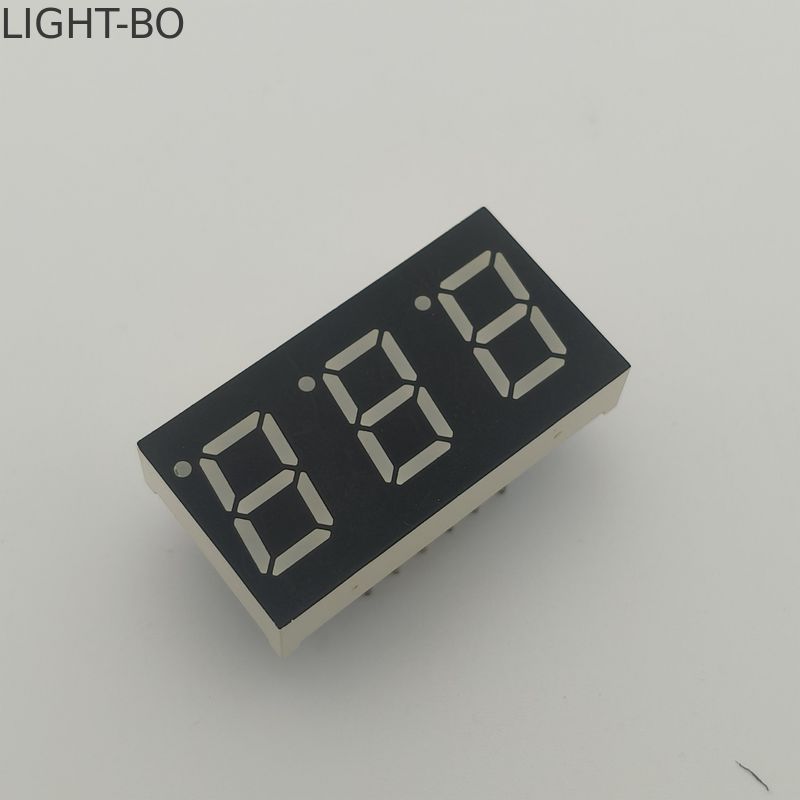

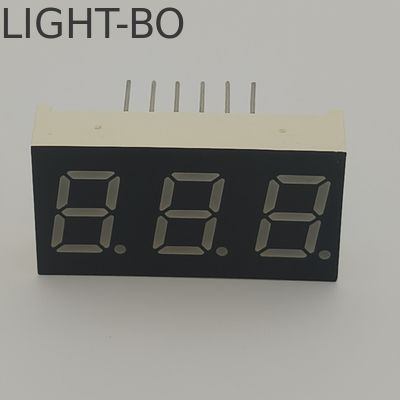

Yellow Green 0.4inch 7 Segment LED Display Common Cathode

Yellow Green 0.4inch 7 Segment LED Display Common Cathode

Brand Name:	LIGHT-BO
Model Number:	LB30401LJ3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Application:

Coffee Maker Machine

Color:

Yellow Green

Digits:

Operating Temperature:

-45-80℃

Brightness:

30-40

Wavelenght:

569-573

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Highlight:

0.4inch 7 Segment LED Display

Yellow Green 7 Segment LED Display

Common Cathode 7 Segment LED Display

Product Description

Triple Digit 0.4inch 7 Segment LED Display Ultra Bright White

Product Description:

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1*16*7MM

Forward Voltage: 1.8-2.2V

Forward Current: 5-10mA

Yellow Epoxy black surface
Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	100		140	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature		If=10mA	6000		6500	K

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Optimized forward voltage for high-efficiency luminosity

Energy-saving design with minimal power requirements

Ultra-low operating current consumption

Uniform segment illumination distribution

Compliant with global industrial dimensional standards

Maintains superior readability under intense ambient lighting

Consistent operational stability

Extended service lifespan exceeding industry averages

Meet RoHS/REACH compliant

Applications:

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

Yellow Green 0.4inch 7 Segment LED Display Common Cathode 0

Yellow Green 0.4inch 7 Segment LED Display Common Cathode 1

Yellow Green 0.4inch 7 Segment LED Display Common Cathode 2
