Yellow Green Triple Digit 7 Segment LED Display with 0.4 inch Digit Height and 100,000 Hours Lifespan for Wide Temperature Range Applications

Yellow Green Triple Digit 7 Segment LED Display with 0.4 inch Digit Height and 100,000 Hours Lifespan for Wide Temperature Range Applications

Brand Name:	LIGHT-BO
Model Number:	LB30401IJ3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Operating Temperature:

-45-80℃

Polarity:

Common Anode

Wavelenght:

569-573

Digit Height:

0.4 Inch

Forward Voltage:

1.8-2.2V

Forward Cuurent:

5-10

Material:

Yellow Epoxy Black Surface

Outer Dimensions:

30.1*16*7MM

Life Span:

100000hours

Oem:

Yes

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Highlight:

Common Anode 7 Segment LED Display

Triple Digit 7 Segment LED Display

Yellow Green 7 Segment LED Display

Product Description

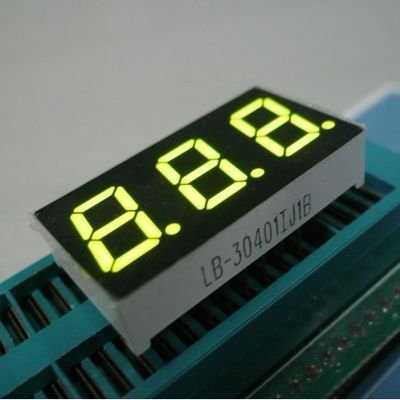

Yellow Green Triple Digit 7 Segment LED Display Common Anode

Product Overview

The Yellow Green 3-Digit 7-Segment Common Anode LED Display is a high-reliability numeric solution engineered for precision indicators (temperature, humidity, process) and general digital readouts. Designed for long-term performance, energy efficiency, and seamless integration, this display delivers consistent, glare-free values in demanding environments—from bright industrial floors to climate-controlled labs.

Its yellow green illumination balances visibility and eye comfort: vivid enough for high-light conditions yet soft enough for prolonged viewing. The common anode configuration simplifies compatibility with standard driver ICs, while the standardized footprint enables drop-in replacement—eliminating costly PCB redesigns. With 100,000+ hour MTBF and nano-amp current draw, it's built for maintenance-free operation in commercial and industrial settings.

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (3 sec)	Th	260	°C

Key Features

Precision Brightness & Visibility: Ensures consistent maximum brightness output across all segments with precision voltage regulation and anti-glare optimization.
Ultra-Low Energy & Sensitive Application Compatibility: 20-30% less power than standard displays with nano-amp level current draw for sensitive applications.
Durability & Easy Integration: 100,000+ hour MTBF rating with standardized footprint for drop-in replacement.
Reliable Operation Across Environments: Wide temperature tolerance (-20°C to 60°C) with basic IP40-rated protection (optional IP65).

Technical Specifications

Category	Parameter	Specification
Basic Design	Display Type	3-Digit 7-Segment LED Display
	Polarity	Common Anode
	Emitting Color	Yellow Green
	Footprint	Industry-Standard
Optical Performance	Brightness Regulation	Precision voltage-controlled
	Light Diffusion	Balanced (nano-coating)
	Anti-Glare Feature	Surface-treated
Electrical Parameters	Current Draw	Nano-amp level
	Power Efficiency	20-30% lower than standard
	Signal Integrity	Flawless operation
Quality & Durability	MTBF Rating	100,000+ hours
	Operating Temperature Range	-20°C to 60°C
	Environmental Protection	IP40 (standard); IP65 (optional)

Applications

• Temperature Indicators: Industrial process monitors, HVAC control panels, cold storage thermometers

• Humidity Indicators: Lab humidity controllers, warehouse moisture monitors, portable sensors

• Process Indicators: Manufacturing timers, assembly line counters, packaging machine monitors

• General Digital Indicators: Battery chargers, audio equipment, smart home hubs

Why Choose This Display?

100,000+ hour MTBF for maintenance-free operation
Nano-amp current draw safe for sensitive applications
Standardized footprint for easy upgrades
All-environment performance with wide temperature range
Cost-efficient with low energy use and long lifespan

Order & Logistics Information

Minimum Order Quantity (MOQ): 300 pieces (standard IP40); 500 pieces (IP65 industrial grade).
Packing: Anti-static EPE + reinforced cartons.
Delivery Time: 7-10 days (standard); 12-15 days (custom).
Transport: Express, Air, or Ocean shipping available.

Our team specializes in high-reliability LED displays for industrial and precision indicators, providing 24-hour support to help optimize your system's performance and longevity!
