Triple Digit 0.4inch 7 Segment LED Display Yelllow Common Anode

Name: Triple Digit 0.4inch 7 Segment LED Display Yelllow Common Anode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30401IY1B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB30401IY1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Color:

Yellow

Brightness:

50-60mcd

Product Name:

Led 7 Segment Led Display

Life Span:

About 12 Years

Wavelenght:

585-595

Operating Temperature:

-45-80℃

Forward Voltage:

1.8-2.4V

Forward Current:

5-10

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Highlight:

0.4inch 7 Segment LED Display

Triple Digit 7 Segment LED Display

Common Anode 7 Segment LED Display

Product Description

Triple-Digit 0.4-Inch 7-Segment LED Display

Yellow, Common Anode for Consumer Electronics & Appliances

Product Overview

This triple-digit 0.4-inch 7-segment LED display features common anode configuration and warm yellow emission, designed specifically for consumer electronics and household appliances requiring clear numeric readouts with low power consumption.

Core Specifications

Specification	Details
Display Type	Triple-digit 7-segment LED numeric display (000-999 range, supports decimal points)
Character Height	0.4 inches (10.16mm) - optimized for 0.5-2m readability
Polarity	Common Anode (CA) - compatible with mainstream CA driver circuits
Emitting Color	Yellow (warm, eye-friendly for prolonged use)
Power Efficiency	Energy Star compliant; Typical current requirement: <1mA
Reliability	<0.5% failure rate in accelerated life testing; 3x longer lifespan than conventional displays
Compliance	RoHS/REACH compliant - free from restricted substances
Key Trait	Low power, high durability, and uniform segment luminosity

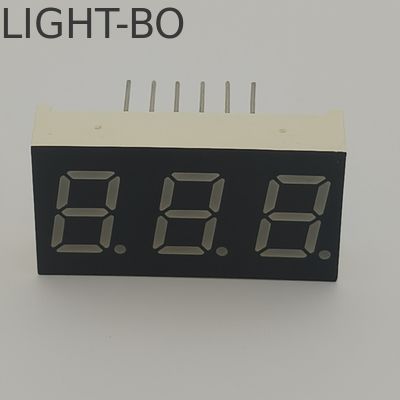

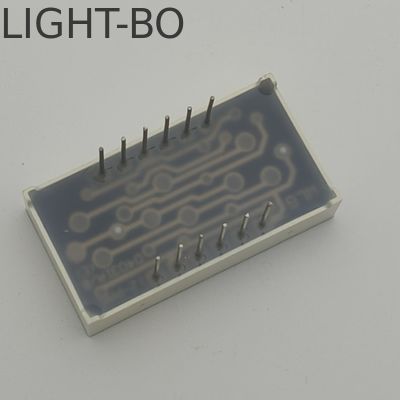

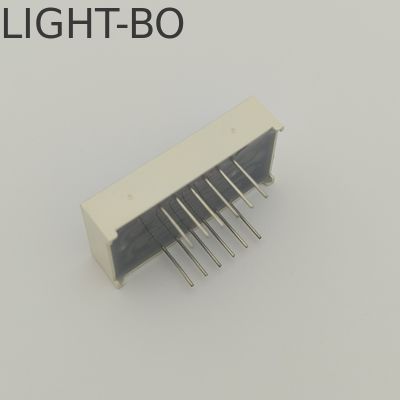

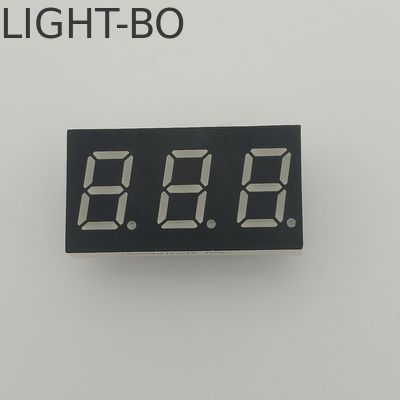

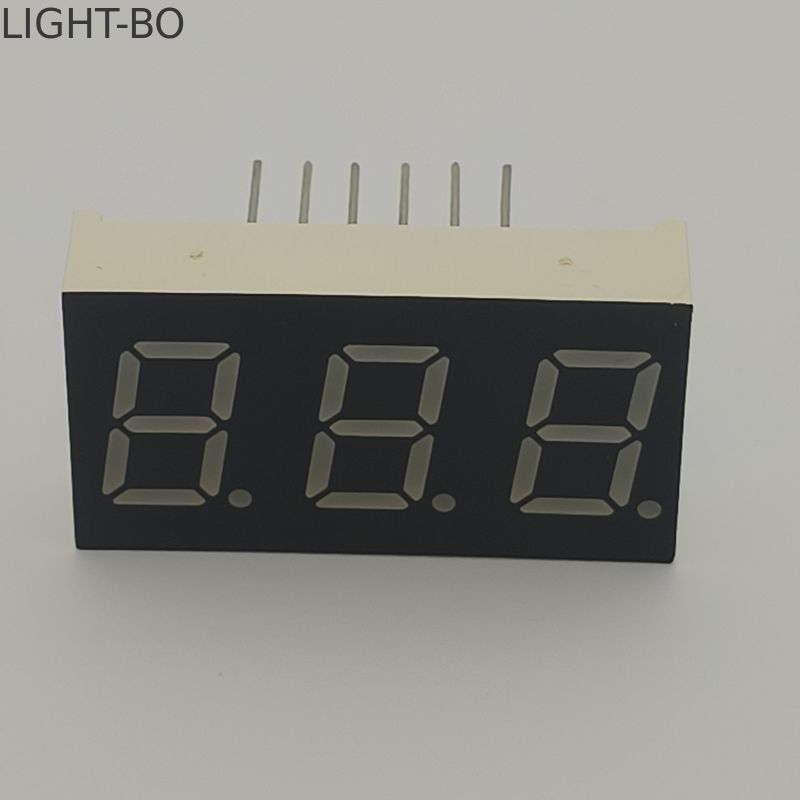

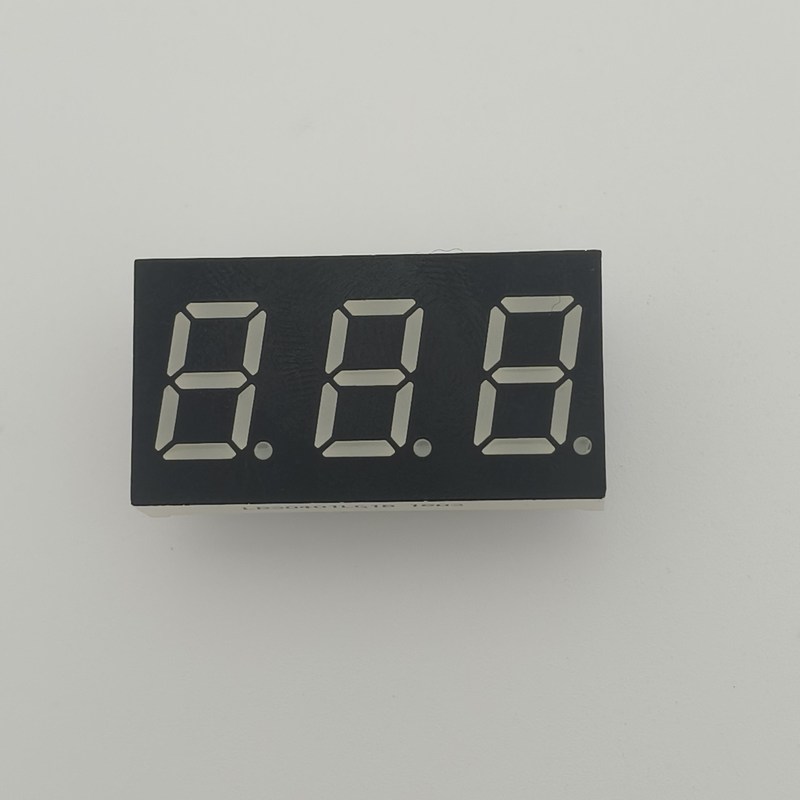

Product Images

Key Advantages

Energy Star Compliance & Ultra-Low Power: <1mA typical current extends battery life up to 5x compared to standard displays
Exceptional Reliability: <0.5% failure rate with 3x longer lifespan than conventional displays
User-Friendly Yellow Emission: Warm yellow light reduces eye fatigue while maintaining clear visibility
Wide Compatibility: Common Anode polarity works with most consumer electronics driver ICs
Global Compliance: RoHS/REACH compliant for international market access

Target Applications

Household Appliances

Smart thermostats, kitchen appliances, laundry devices, and humidifiers

Consumer Electronics

Portable measurement tools, wireless sensors, digital clocks, and fitness trackers

Industrial & Retail

DIY digital calipers, voltage testers, price counters, and inventory trackers

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics - Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)

Established in 2006, we are an ISO 9001:2015 certified manufacturer specializing in R&D, production, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, we provide high-quality, cost-effective customized solutions for consumer electronics and appliance applications.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

What is your main products?

Our main products include 7 Segment LED displays, SMD LED displays, Dot matrix LED displays, Arrow LED displays, and custom design LED solutions.

What is your MOQ?

Our MOQ is 1000 pieces, but we can also accept sample orders and small quantities below our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for testing, with freight costs borne by the customer.

How long is your delivery time?

Standard delivery time is 10-20 days, depending on order quantity and materials. Urgent orders with available materials can be ready in 7-10 days.
