7 Segment LED Display
Created with Pixso.

Customized Orange Color 7 Segment LED Display Triple Digit Common Anode

name

Customized Orange Color 7 Segment LED Display Triple Digit Common Anode

Brand Name: LIGHT-BO
Model Number: LB30401IF1B-D
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000PCS/Days
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Pixels:
9.20mm
Brightness:
Hight Brightness
Operating Temperature:
-45-80℃
Usage:
Indoor/Outdoor
LED Color:
Orange
Name:
4 Digit 7 Segment Display
Life Span:
Over 60000hours
Character Height:
0.4 Inch
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Days
Highlight:

Common Anode 7 Segment LED Display

,

Triple Digit 7 Segment LED Display

,

Orange Color 7 Segment LED Display

Product Description

Product Description:

Outer dimensions: 30.1*16*7MM

Polarity: Common cathode

Yellow Epoxy black surface

Emitting colours:Orange

Forward Current: 5-10mA

Forward Voltage: 1.8-2.4V

Oem: Yes


Absolute Maximum Ratings(Ta=25ºC)​

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(3 sec) Th 260 ºC


Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 600
605 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC


Product Feature:

High brightness achieved through advanced voltage control

Industry-leading power efficiency (consumption <0.5W typical)

Energy Star compliant power efficiency

Superior ambient light rejection technology

Meet RoHS/REACH compliant


Applications:

High-end audio visual equipment & control interfaces

Commercial-grade numeric presentation systems

Consumer electronics and household appliances

Alphanumeric display solutions

Digital media and entertainment devices

Precision digital measurement solutions and so on

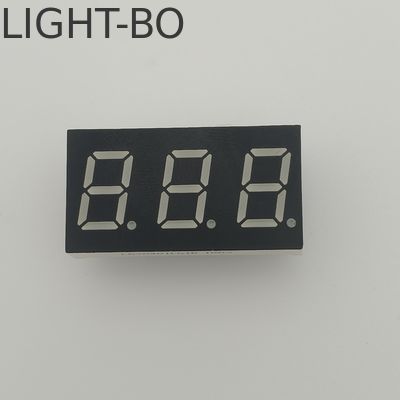

Customized Orange Color 7 Segment LED Display Triple Digit Common Anode 0

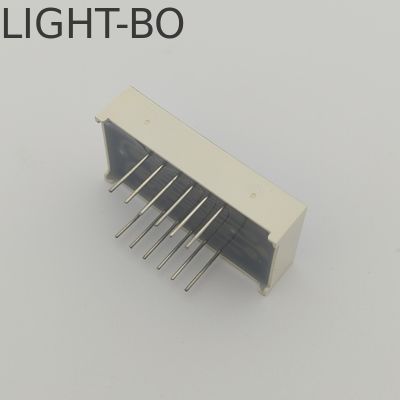

Customized Orange Color 7 Segment LED Display Triple Digit Common Anode 1

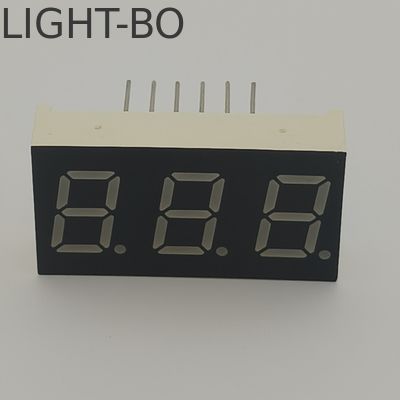

Customized Orange Color 7 Segment LED Display Triple Digit Common Anode 2
