Triple Digit Pure Green 7 Segment LED Display Common Cathode

Brand Name:	LIGHT-BO
Model Number:	LB30401LG3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

LED Color:

Pure Green

Digit Height:

0.4 Inch

Brightness:

120-160mcd

Outer Dimensions:

30.1*16*7mm

Life Span:

Over 90000 Hours

Wavelength:

515-525NM

Forward Current:

5-10mA

Forward Voltage:

2.5-3.0V

Application:

Household Appliances

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Product Description

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Energy Star compliant power efficiency

Current requirements below 1mA (typical)

Interchangeable with industry-standard packages

Superior ambient light rejection technology

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Consumer electronics and household appliances

Digital media and entertainment devices

Universal digital measurement indicators (temperature/humidity/process variables) and so on

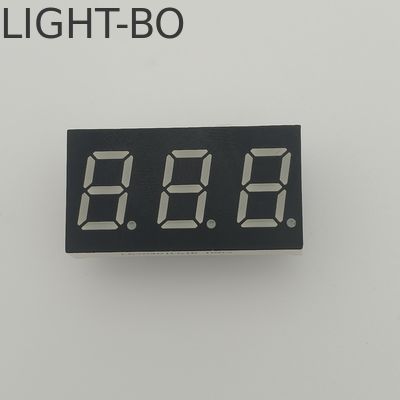

Triple Digit Pure Green 7 Segment LED Display Common Cathode 0

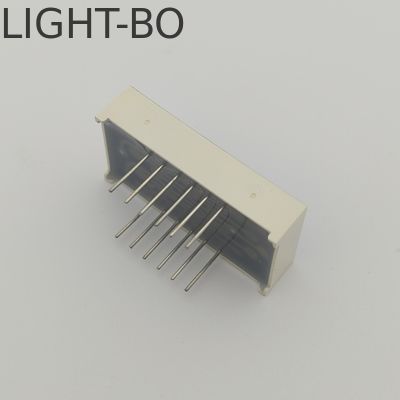

Triple Digit Pure Green 7 Segment LED Display Common Cathode 1

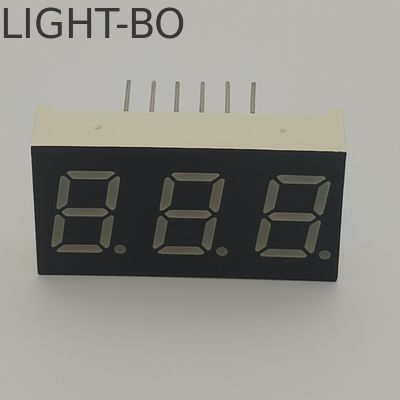

Triple Digit Pure Green 7 Segment LED Display Common Cathode 2

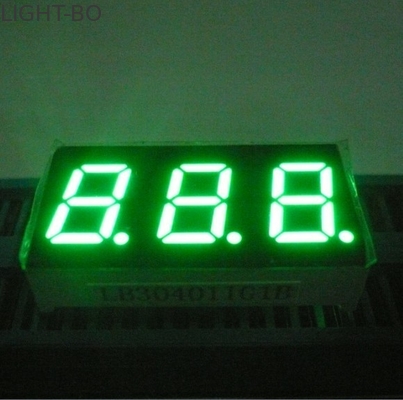

Triple Digit Pure Green 7 Segment LED Display Common Cathode 3
