Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode

Name: Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB50563LR1B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB50563LR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Life Time:

More Than 5 Years

Application:

Digital Clocks, Counters, Timers, Scoreboards

Life Span:

50000hs

Display Brightness:

High

Surface:

White Segments Black Surface

Package Dimension:

63*19*8mm

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14.2mm 7 Segment LED Display

Super Bright 7 Segment LED Display

Common Cathode 7 Segment LED Display

Product Description

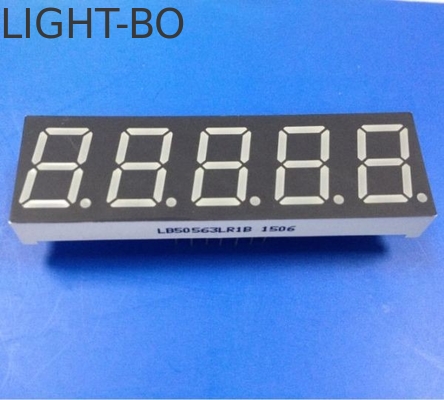

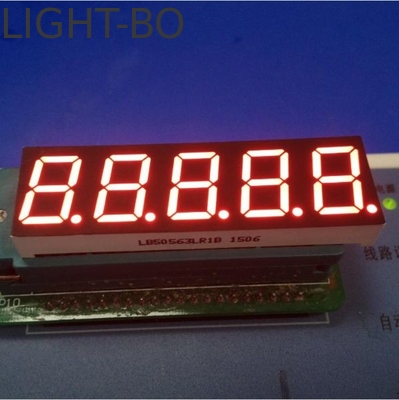

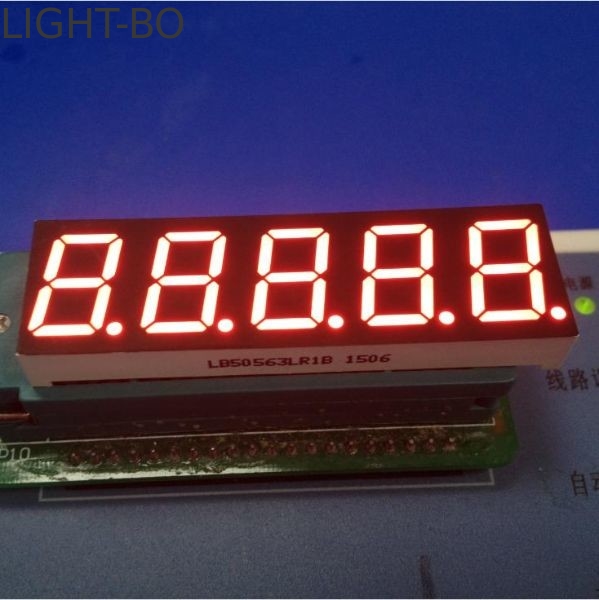

Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode

Super bright red 14.2mm 5-digit 7-segment LED display with common cathode configuration for digital indicators and instrumentation.

Product Specifications

Display: 5 digit, 0.56 inch 7 segment LED display
Character height: 14.2mm (0.56 inch)
Outer dimensions: 63×19×8mm
White segments on black surface
Configuration: Common cathode
Emitting color: Super bright red
Luminous intensity: 50-60 mcd
Forward voltage: 1.8-2.2V per LED
Forward current: 5-10mA per LED
Available colors: Red, blue, yellow green, pure green, amber, orange, and pure white

Electrical Parameters by Color Code

Yellow Green - J/JU

Vibrant yellow green LED display offering excellent visibility and energy efficiency for various display applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow LED display providing excellent readability with comfortable viewing experience.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

High-visibility orange LED display offering vibrant illumination for attention-grabbing applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

High-intensity red LED display delivering maximum visibility and impact for critical display applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Maximum brightness red LED display offering unparalleled visibility and commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp pure green LED display ideal for eco-friendly designs and applications requiring natural, refreshing appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Vibrant blue LED display providing modern, sophisticated aesthetics with excellent visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Pristine white LED display offering exceptional clarity and elegant appearance for premium applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Maximum performance specifications ensuring optimal reliability and durability under demanding conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we are committed to innovation and superior quality in LED display technology.

LIGHTBO delivers cost-efficient custom solutions that enhance competitive advantages in global markets, empowering clients to succeed with cutting-edge LED display technology.

Product Applications

Our state-of-the-art 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays are engineered for diverse applications including household appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and HVAC systems. These products combine superior performance with exceptional visual appeal for reliable display solutions.
