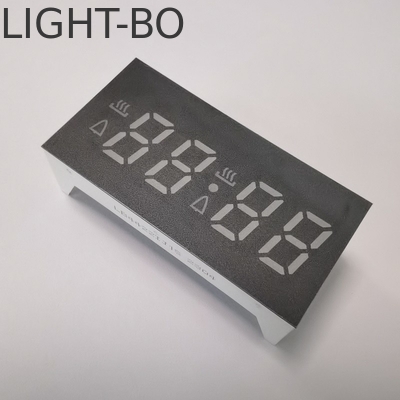

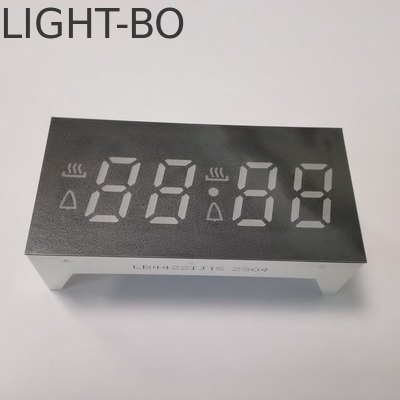

4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker

4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker

Brand Name:	LIGHT-BO
Model Number:	LB4422LJ1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Features:

Competitive Price With High Quality

Charater Height:

9.92mm (0.38")

Forward Voltage:

1.8-2.2V

Segment Type:

Common Cathode

Quality:

High Quality

Package Dimension:

44 X 22 Mm

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Gas Cooker 7 Segment LED Display

4 Digit 7 Segment LED Display

Super Bright 7 Segment LED Display

Product Description

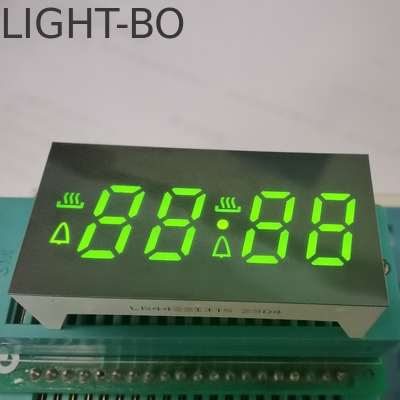

Super bright Green 4 Digit 7 Segment LED Display Common Cathode for Gas Cooker

Package dimensions	44 x 22 mm
Character Height	9.92mm (0.38")
Face Colour	Black
Polarity	Common Cathode
Emitting Colour	super bright green
Operating Temperature	Max. +105C ~ 120ºC
Pin type	SMD

High luminous intensity
Low power cumsuption
Stable perforance
Good consistency
Big viewing angle
Longe lifetime
IC compatible
Dispaly can withstand environment temperature +105C - 120C
Meet RoHS/REACH Compliant
LED color: abailable in red,blue, green, white, amber, orange

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.5		3.0	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	120		160	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	515		525	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃
