Ultra Bright White Microwave 7 Segment LED Display 4 Digit Common Cathode

Name: Ultra Bright White Microwave 7 Segment LED Display 4 Digit Common Cathode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB6143LWH3S-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB6143LWH3S-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Document:

LB6143LWH3S-D.pdf

Application:

Microwave

Voltage:

2.6-3.0v

Character Height:

0.49inch

Polarity:

Common Cathode

Wavelength:

585-595nm

Dimension:

61*43*20mm

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

4 Digit 7 Segment LED Display

Common Cathode 7 Segment LED Display

Product Description

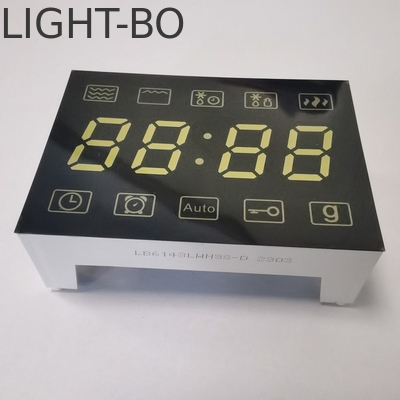

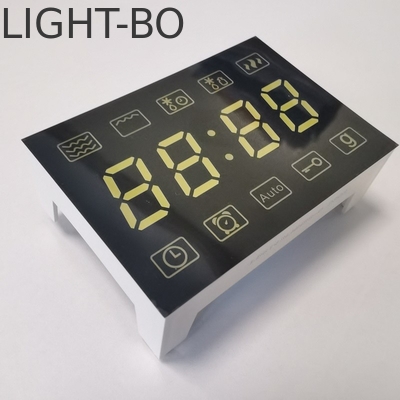

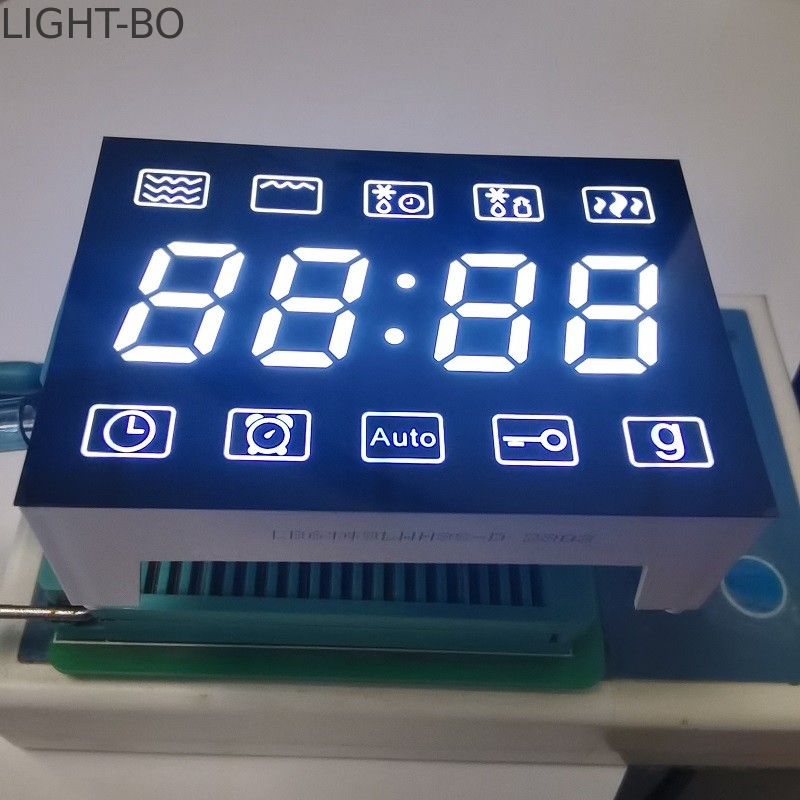

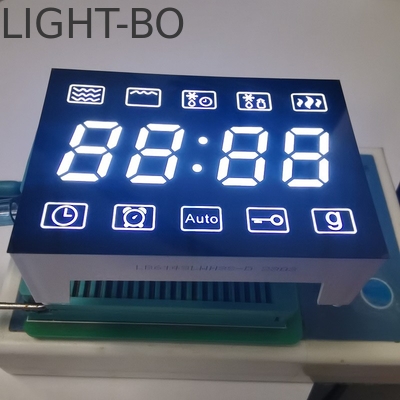

Ultra Bright White Microwave 7 Segment LED Display 4 Digit Common Cathode

Product Overview

Ultra bright white microwave 7 segment LED display with 4 digits and common cathode configuration, designed for high-performance applications requiring excellent visibility and reliability.

Technical Specifications

Package Dimensions	61×43×20mm
Character Height	0.49 inch
Face Color	Black
Polarity	Common Cathode
Emitting Color	Ultra Bright White
Operating Temperature	Max. +105°C ~ 120°C
Pin Type	SMD

Key Features

High luminous intensity
Low power consumption
Stable performance
Good consistency
Big viewing angle
Long lifetime
IC compatible
Display can withstand environment temperature +105°C - 120°C
Meet RoHS/REACH Compliant
LED color: Available in red, blue, green, white, amber, orange

Product Parameters

Yellow Green - J/JU

Transform your displays with our vibrant and dynamic colors, intricately designed to fulfill your specific design visions, enhancing both visual aesthetics and appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Craft displays that captivate and charm with this enticing, warm hue, radiating a cozy glow that magnetically draws attention.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25°C)

Delve into the impressive performance features that underscore the advanced capabilities of our state-of-the-art LED display technology.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

About Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO)

A paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification, our rich history of over 15 years highlights our unwavering commitment to innovation and superior quality. Our legacy is built on a foundation of trust and expertise, consistently delivering cutting-edge solutions that push the boundaries of technology.

LIGHTBO enriches its clients with top-tier, cost-efficient custom solutions, not only slashing costs but also boosting competitive edges in the global arena.

Product Applications

Ultra Red 5×7 DOT Matrix Display application example

Immerse yourself in the forefront of technological artistry with our cutting-edge Ultra Red 5×7 DOT Matrix Display, along with the versatile 7 Segment LED Display, Customized LED Display, and Numeric LED Display. These exceptional displays are expertly engineered to integrate effortlessly into an expansive range of applications, enhancing both functionality and aesthetic allure.

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
