Common Anode Ultra Bright Red 7 Segment LED Display 4 Digit Fo Microwave Control

Name: Common Anode Ultra Bright Red 7 Segment LED Display 4 Digit Fo Microwave Control
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB6143IR1S
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB6143IR1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Document:

LB6143LWH3S-D.pdf

Character Height:

0.49（"）

Life Span:

10000hrs

Face Colour:

Black

Type:

7 Segment LED Display

Outer Dimension:

61*43*20MM

Strengh:

Perfect Functional Perfermance

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

4 Digit 7 Segment LED Display

Microwave Control 7 Segment LED Display

Product Description

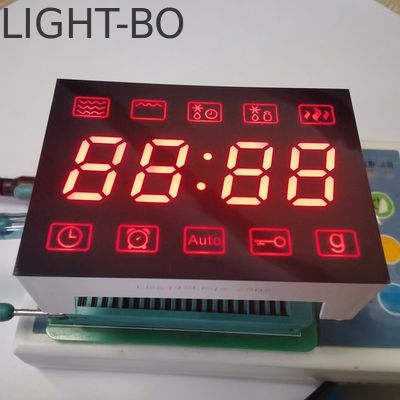

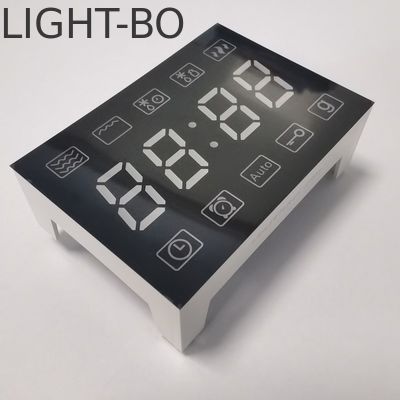

Common Anode Ultra Bright Red 7 Segment LED Display

4-digit microwave control display with common anode configuration and ultra bright red emission

Product Features

High forward voltage for superior luminous intensity output
Low power consumption design
Extremely low current operation
Evenly distributed luminous intensity across all segments
Industrial standard dimensions for compatibility
Excellent reliability in bright ambient light conditions
Stable performance across operating conditions
Long operational lifetime
Compliant with RoHS/REACH environmental standards

Product Specifications

Package dimensions	61×43×20mm
Character Height	0.49 inch
Face Colour	Black
Polarity	Common Anode
Emitting Colour	Ultra Bright Red
Operating Temperature	Max. +105°C ~ 120°C
Pin type	SMD

LED Color Options and Parameters

Yellow Green (Code: J/JU)

Vibrant yellow green color designed to enhance visual aesthetics and appeal with perfect blend of vibrancy and elegance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing cozy glow that attracts attention with comfort and engagement.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Vibrant orange color providing energy and excitement with flair and visual impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Captivating super bright red glow ideal for commanding attention and making powerful visual impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Intensely luminous ultra bright red offering unparalleled visibility and commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing crisp green perfect for eco-friendly designs with natural and revitalizing appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant cool blue infusing refreshing contemporary aesthetic with modern sophistication.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white providing unrivaled clarity and elegance with pure and distinguished appearance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25°C)

Advanced LED display technology ensuring optimal performance and reliability under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality solutions built on trust and expertise. Our cost-efficient custom solutions help clients enhance competitive advantages in global markets.

Product Applications

Ultra Red 5×7 DOT Matrix Display application example

Our cutting-edge Ultra Red 5×7 DOT Matrix Display, 7 Segment LED Display, Customized LED Display, and Numeric LED Display integrate seamlessly into various applications including household appliances, temperature and humidity monitoring, refrigerator controllers, thermostats, and HVAC systems. Engineered for outstanding performance and quality.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Transportation

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with over 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. Urgent orders with available materials can be ready in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes, we provide quotes based on incoterms including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate prices?

A: Yes, we consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping charges depend on shipment size and method. We provide quotes upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We customize sizes, LED colors, and functional icons according to requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and approved drawings.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. Customers can choose their preferred method.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing twice on all products before shipment.
