products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
7 Segment LED Display
Created with Pixso.

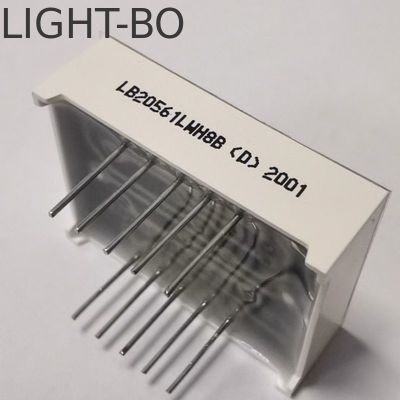

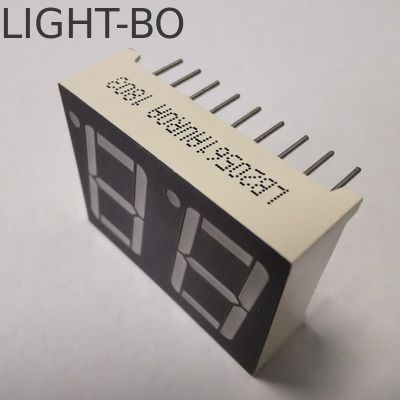

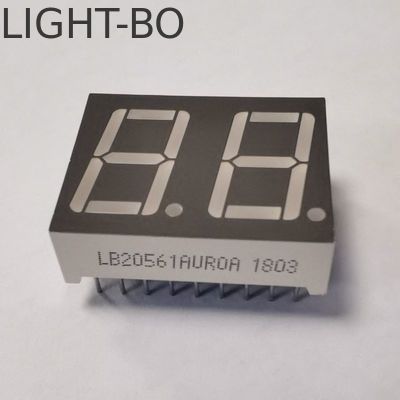

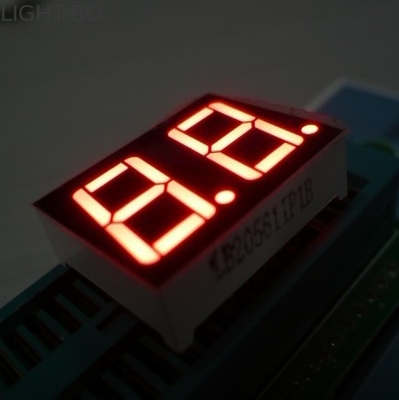

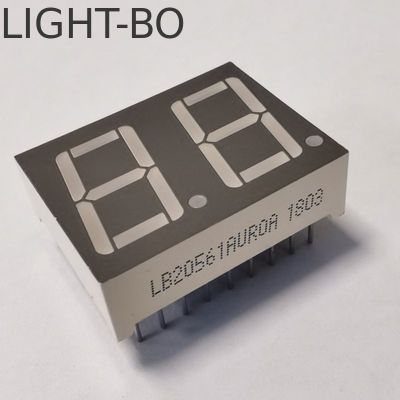

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit

name

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit

Brand Name: LIGHT-BO
Model Number: LB20561LR8B
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Usage:
Indoor Or Outdoor
Display Function:
Video,numeral 0-9
Brightness:
Super Brightness
Application:
Office Electronic Equipment,Household Appliances
Forward Voltage:
2.8-3.2V/Led
Foward Current:
5-10mA/Led
Packaging Details:
EPE+carton
Supply Ability:
50000 PCS/Day
Highlight:

Dual Digit 7-Segment LED Display

,

Amber Color 7-Segment LED Display

,

0.56inch 7-Segment LED Display

Product Description

 0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit

  • Customized dual digit 7 segment led display

  • Outer dimensions: 25*19*8mm

  • Yellow  segments black surface

  • Emitting color : Amber

  •  X / Y : 0.29-0.31

  • Plug-and-play compatibility with standard industrial enclosures

  • Sunlight-readable performance (1000nit minimum luminance)

  • Military-grade stability across temperature extremes

  • IC Compatible

  • Easy assembly

  • Meet RoHS Compliant

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 0

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 1

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 2

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 3

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 4


Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC


Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 50
60 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 630
635 nm


APPLICATIONS:

High-end audio visual equipment & control interfaces

Luxury home electronic displays

Commercial-grade numeric presentation systems

Multimedia exhibition technologies
