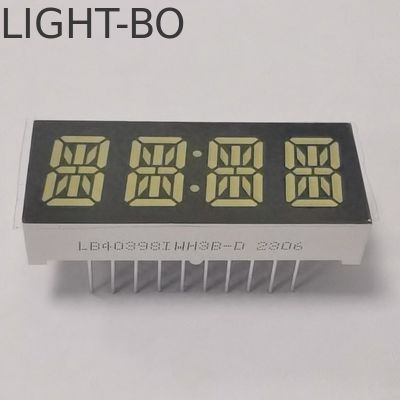

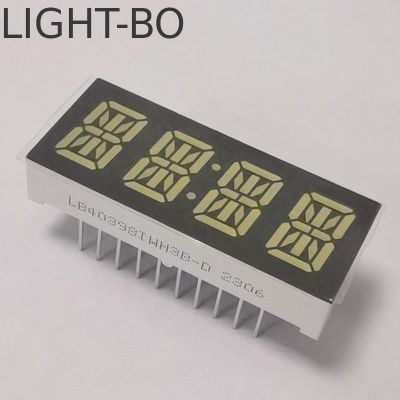

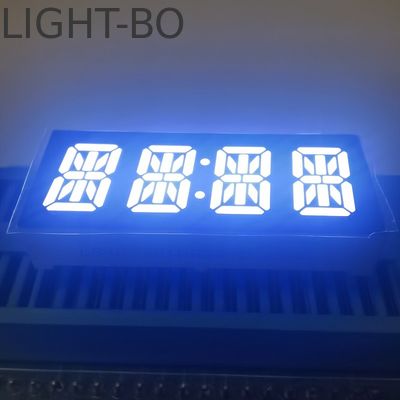

Ultra Bright White 4 digit 0.39inch Common Anode 14 Segment LED Clock Display

Name: Ultra Bright White 4 digit 0.39inch Common Anode 14 Segment LED Clock Display
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40398IWH3B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40398IWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Used:

Stage Performance, Digital Display Screens, Message Boards,Information

Lifespan:

600000hrs

Dimension:

36*15*7mm

Digit Height:

0.39 Inch

Advantage:

Prompt Delivery,Cost Competitive

Characteristic:

Raw Material With High Quality

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

0.39inch 14 Segment LED Display

Common Anode 14 Segment LED Display

14 Segment LED Clock Display

Product Description

Ultra Bright White 4 Digit 0.39inch Common Anode 14 Segment LED Clock Display

Product Overview

High-performance 4-digit 14-segment LED display with ultra bright white illumination, designed for clock applications and industrial displays.

Digit size range: 0.25" to 20"
Digit options: 1, 2, 3, 4, 5 and 6 digits
Segment types: 7 segment, 14 segment and 16 segment available
Available colors: Red, Yellow-green, Green, Blue, Yellow, Pink, White, Bi-color
Surface colors: Black, Gray or Red

Product Specifications

Parameter	Specification	Options
Part Number	LB40398IWH3B-D	Custom part numbers available
Digit Number	4 digit	1, 2, 4, 5, 6 digits
Digit Height	0.39 inch	0.25", 0.36", 0.39" to 5.0"
Color	Bright White	Blue, Pure Green, Yellow-green, Orange, etc.
Size	36×15×7mm	Custom sizes supported
Polarity	Common Anode	Common Cathode available
Life Span	80,000 hours

Technical Parameters by Color Code

Yellow Green (Code: J/JU)

Vibrant yellow-green LED designed for enhanced visual appeal and design flexibility.

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd
Wavelength	Dλ	If=10mA	569	574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing comfortable glow and excellent visibility.

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	585	595	nm

Ultra Bright White (Code: WH)

Pristine white LED offering exceptional clarity and sophisticated appearance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. As an ISO 9001:2015 certified manufacturer with over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing and custom capabilities.

Applications

Our LED displays are engineered for diverse applications including household appliances, temperature and humidity displays, refrigerator controllers, thermostats, HVAC systems, and industrial control panels.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces, but we can accept sample orders and small quantities for initial orders.

Q4: Can I get samples for testing?

A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Standard delivery time is 10-20 days, depending on order quantity and material availability. Urgent orders can be processed within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Do you offer custom design services?

A: Yes, we provide comprehensive OEM & ODM services and can customize sizes, LED colors, and functional icons according to your requirements.

Q8: How do you ensure product quality?

A: As ISO 9001 certified manufacturers, we conduct 100% testing of all products twice before shipment to ensure quality and reliability.
