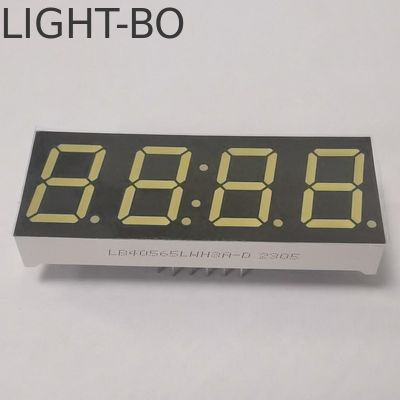

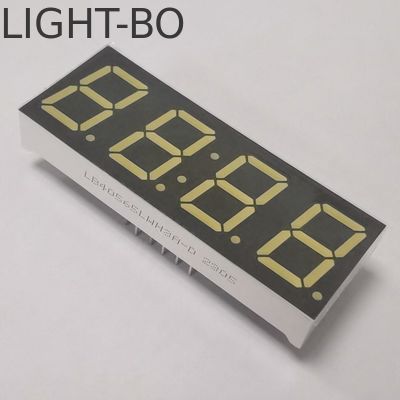

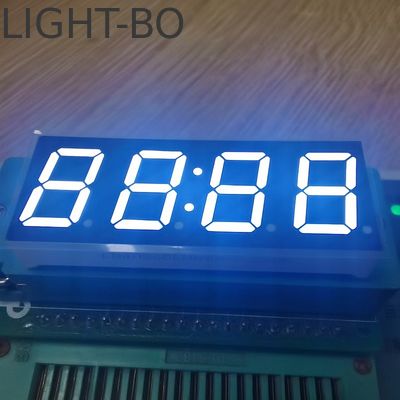

Ultra White 4 Digit 7 Segment LED Clock Display Common Cathode for Digital Timer

Name: Ultra White 4 Digit 7 Segment LED Clock Display Common Cathode for Digital Timer
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40565LWH3A-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40565LWH3A-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Lead Time:

Fast

Character:

Stable Quality And Perfect Performance

Digit Count:

1-9

Size:

50.4*19*8MM

Advange:

Timely Delivery

Digit Height:

14.2mm

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

14.2mm 7 Segment LED Display

Ultra White 7 Segment LED Display

Digital Timer 7 Segment LED Display

Product Description

Ultra White 4 Digit 7 Segment LED Clock Display

Ultra White 14.2mm 4 Digit 7 Segment LED Clock Display common cathode for Digital Timer

Product Specifications

Display: 4 digit, 0.56 inch 7 segment LED clock display
Digit height: 14.2mm (0.56 inch)
Outer dimensions: 50.3 x 19.0 x 8 mm
Configuration: White segments black surface with common cathode
Emitting color: Ultra bright white
Luminous intensity: 100-140mcd
Forward voltage: 2.8-2.3V/led
Forward current: 5-10mA/led
Available colors: red, blue, yellow green, pure green, amber, orange and pure white

LED Display Features

White segment black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Industrial Applications

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Technical Parameters

Yellow Green (Code: J/JU)

Vibrant yellow green color designed for enhanced visual appeal and design flexibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing comfortable glow and attention-grabbing visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Energetic orange color for displays requiring high visibility and visual impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Commanding super bright red for maximum attention and powerful visual presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Intensely luminous red offering unparalleled visibility and commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing crisp green ideal for eco-friendly designs and natural appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant cool blue adding modern sophistication and contemporary aesthetic.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white for unrivaled clarity, brilliance and sophisticated appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Advanced performance features ensuring optimal reliability under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) stands as a paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification, our rich history of over 15 years highlights our unwavering commitment to innovation and superior quality. Our legacy is built on a foundation of trust and expertise, consistently delivering cutting-edge solutions that push the boundaries of technology.

LIGHTBO enriches its clients with top-tier, cost-efficient custom solutions, not only slashing costs but also boosting competitive edges in the global arena. We empower our clients to thrive in a dynamic market landscape, offering them the tools they need to succeed.

Product Applications

Ultra Red 5×7 DOT Matrix LED Display application examples

Immerse yourself in the forefront of technological artistry with our cutting-edge Ultra Red 5×7 DOT Matrix Display, along with versatile 7 Segment LED Display, Customized LED Display, and Numeric LED Display. These exceptional displays are expertly engineered to integrate effortlessly into an expansive range of applications, enhancing both functionality and aesthetic allure. Whether you're modernizing household appliances for a contemporary edge, providing precise temperature and humidity readings, or devising sophisticated and dependable solutions for refrigerator controllers, thermostats, and HVAC systems, our displays set the standard for outstanding performance and peerless quality.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Transportation

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to any one else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
