Ultra Bright Pink 14.2mm (0.56") Single Digit 7 Segment LED Display Common Cathode for Digital Indicator

Name: Ultra Bright Pink 14.2mm (0.56") Single Digit 7 Segment LED Display Common Cathode for Digital Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB10561EP4B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB10561EP4B-D
MOQ:	1000
Price:	Negotiate
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Display Brightness:

High

Display Type:

7 Segment

Delivery:

Fast

Screen Dimension:

Custom Made

Usage:

Intrument Panel Indicator

Character:

Enviromental Protection Epoxy

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Digital Indicator Ultra Bright LED Display

Common Cathode Ultra Bright LED Display

14.2mm Ultra Bright LED Display

Product Description

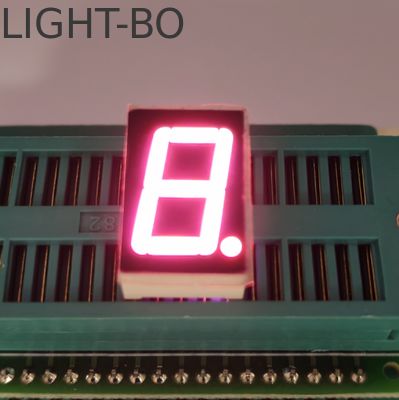

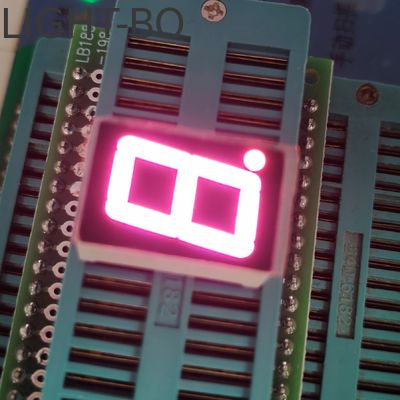

Ultra Bright Pink 14.2mm Single Digit 7 Segment LED Display

Ultra bright pink 14.2mm (0.56") single digit 7 segment LED display with common cathode configuration, designed for digital indicators and industrial applications.

Product Specifications

Package Dimension: 12.6 × 19 × 8mm

Character Height: 14.2mm (0.56 inch)

Polarity: Common Cathode

Color: Ultra Bright Pink

Face Color: Black

X & Y Coordinates: 0.29-0.31

Luminous Intensity: 100-120mcd/LED

Forward Voltage: 2.8-3.2V

Available Emitting Colors: Red, Blue, Yellow Green, Pure Green, White, Amber, Orange, and Yellow

Detailed Technical Parameters

Yellow Green (Code: J/JU)

Transform your displays with vibrant yellow green color, designed to enhance visual aesthetics and appeal for your specific design requirements.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing a cozy glow that attracts attention and enhances display engagement.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

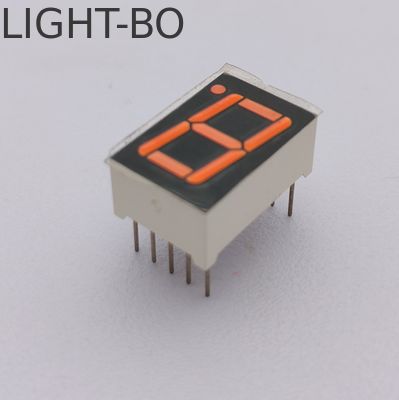

Orange (Code: F)

Vibrant orange color that injects energy and excitement into visual displays with flair and vigor.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Captivating super bright red color ideal for commanding attention and making a powerful visual impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Intensely luminous red offering unparalleled visibility and commanding presence for maximum impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing and crisp pure green color perfect for eco-friendly designs and conveying growth and sustainability.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant cool blue color that infuses a refreshing and contemporary aesthetic into any display environment.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white color providing unrivaled clarity and elegance for displays requiring sophisticated appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring optimal reliability and operation under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we are committed to innovation and superior quality. Our legacy is built on trust and expertise, consistently delivering cutting-edge solutions that push technological boundaries.

LIGHT-BO provides top-tier, cost-efficient custom solutions that enhance competitive advantages in global markets. We empower clients to succeed in dynamic market landscapes with the tools they need for success.

Product Applications

Our cutting-edge LED displays including Ultra Red 5×7 DOT Matrix Display, 7 Segment LED Display, Customized LED Display, and Numeric LED Display are engineered for seamless integration into various applications. These displays enhance functionality and aesthetic appeal for household appliances, temperature and humidity monitoring, refrigerator controllers, thermostats, and HVAC systems, delivering outstanding performance and quality.

Certifications & Quality Assurance

Office and Factory Overview

Company Exhibitions

Shipping & Transportation

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with available materials, we can adjust production to 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are the shipping charges?

A: Shipping charges depend on shipment size and method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and approved mold drawings.

Q14: What are your shipping methods?

A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing on all products before shipment.
