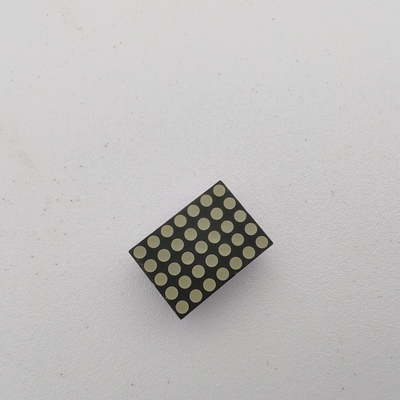

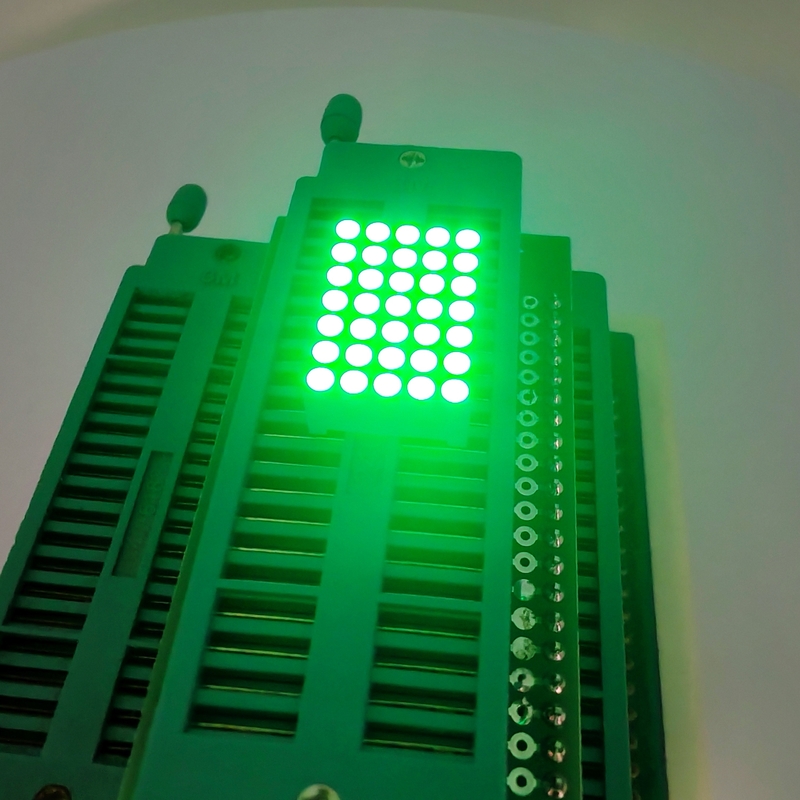

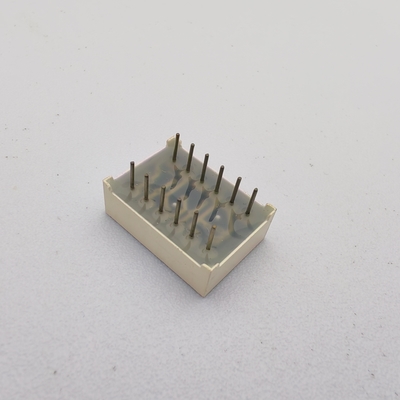

0.7inch Pure Green 5X7 DOT Matrix LED Lift Display

Name: 0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB02571BG1S-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB02571BG1S-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Pixel Pitch:

1.9mm

Storage Temperature:

-40°C To +85°C

Current:

20mA

Material:

PCB,Epoxy,LED Chip,plastic

Light Points:

Elegant Design ,exquiste Craftmanship

Polarity:

Common Anode

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

0.7inch DOT Matrix LED Lift Display

7 DOT Matrix LED Lift Display

Product Description

0.7inch Pure Green 5X7 DOT Matrix LED Lift Display

Transform your displays with vibrant, dynamic colors designed to fulfill specific design visions and enhance visual aesthetics. Our LED displays offer a perfect blend of vibrancy and elegance to elevate the overall look and feel of your applications.

Available Color Options & Technical Specifications

Yellow Green (Code: J/JU)

Vibrant yellow-green hue crafted to bring creative ideas to life with enhanced visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow color that radiates a cozy glow, magnetically drawing attention and inviting engagement.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Vibrant orange hue that injects energy and excitement into visual displays with flair and vigor.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Captivating robust red color ideal for commanding attention and leaving a powerful impression.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Intensely luminous red offering unparalleled visibility and commanding presence for maximum impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing crisp green perfect for eco-friendly designs, conveying growth and sustainability with natural appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant cool blue infusing a refreshing contemporary aesthetic that enriches any environment with modernity.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white offering unrivaled clarity and elegance, perfect for displays aiming for clean and distinguished looks.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Advanced performance features ensuring optimal reliability and performance under challenging conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we maintain an unwavering commitment to innovation and superior quality. Our legacy is built on trust and expertise, consistently delivering cutting-edge solutions that push technological boundaries.

Product Applications

Our cutting-edge Ultra Red 5*7 DOT Matrix Display, along with versatile 7 Segment LED Display, Customized LED Display, and Numeric LED Display, are expertly engineered for seamless integration into various applications. These displays enhance both functionality and aesthetic appeal in household appliances, temperature and humidity monitoring systems, refrigerator controllers, thermostats, and HVAC systems, setting the standard for outstanding performance and peerless quality.

Certifications & Quality Assurance

Office and Factory Overview

Company Exhibitions

Shipping & Logistics

Frequently Asked Questions

Are you a trading company or manufacturer?

We are original manufacturers with over 20 years of experience in optoelectronic LED displays.

What are your main products?

Our main products include 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

What is your MOQ?

Our MOQ is 1000 pieces, but we accept sample orders and small quantities below our MOQ.

Can I get samples for testing before placing an order?

Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

How long is your delivery time?

Delivery time is typically 10-20 days, depending on order quantity and raw material availability. Urgent orders with available materials can be ready in 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Can you provide FOB prices?

Yes, we quote prices based on incoterms EXW, FOB, CIF, and DDP.

How can I get your catalogue and price list?

Please provide your email address or contact us directly through our website for our catalogue and price list.

Can I negotiate prices?

Yes, we consider discounts for bulk orders.

How much are shipping charges?

Shipping charges depend on shipment size and method. We provide quotes based on your requirements.

Can you do custom design products?

Yes, OEM & ODM services are available. We customize sizes, LED colors, and functional icons according to your requirements.

If I send my design, will you keep it confidential?

Yes, we will not show or sell your design to others without your authorization.

What is the lead time for customized product samples?

Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval.

What shipping methods do you use?

We ship via DHL, FEDEX, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

How do you ensure product quality?

As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
