Row Anode Column Cathode Super Bright Red DOT Matrix LED Display

Ultra bright yellow 1.2" 5*7 dot matrix led display row cathode for digital time zone clocks

Product Overview

This Ultra bright yellow 1.2" 5*7 dot matrix LED display adopts a row cathode and column anode connection method, specially designed for digital time zone clocks. It emits ultra-bright yellow light, ensuring clear display in various environments. Moreover, it boasts numerous advantages such as high efficiency, low power consumption, and strong stability, making it an ideal choice in the field of digital display.

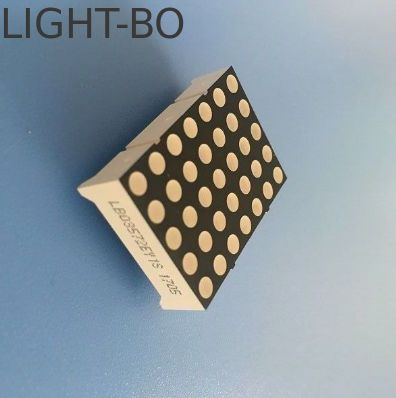

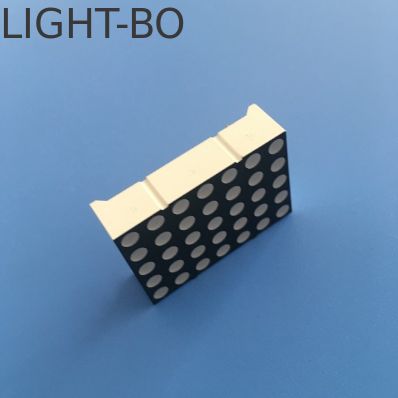

Main Image Display

Core Advantages of the Product

Ultra-high Brightness, Clear Visibility；High Efficiency and Low Power Consumption；Ultra-low Current, Stable Operation；Wide Viewing Angle, Comfortable Viewing；Stable Performance, Good Consistency；Long Service Life, Durable；Easy Assembly, Strong Compatibility；Compliant with Standards, Safe and Reliable

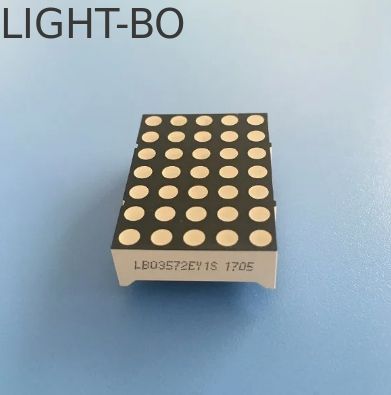

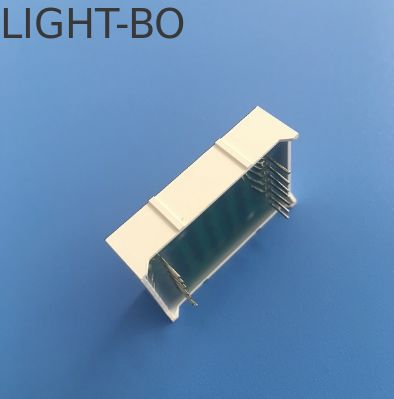

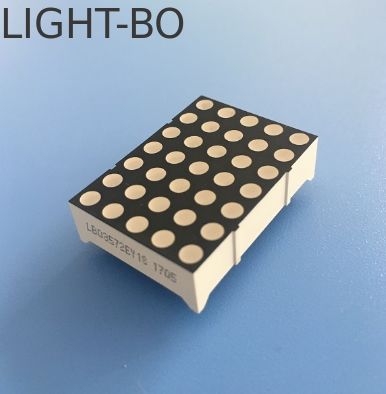

Detail Display Image

Specification Parameters​
Brand Name: Light-Bo​
Product Type: Standard​
Emitting Dot Diameter: 3mm​
Outer Dimensions: 22.75 x 31.8 x 8.5mm​
Connection Method: Row cathode, column anode​
Emitting Color: Ultra bright yellow​
Wavelength: 585-595nm​
Luminous Intensity: 70-80mcd​
Forward Voltage: 1.8-2.5V per dot​
Forward Current: 12-15mA​
Dot Diameter: 3.0mm​
Surface Feature: White dots on black surface​
Viewing Angle: Large viewing angle vertically and horizontally

Application Scenarios​
This 5*7 dot matrix LED display has a wide range of applications. In addition to being very suitable for digital time zone clocks, it is also applicable to elevator floor indicators, position indicators, digital displays and screens, moving signs, message boards and other scenarios, providing high-quality solutions for different display needs.

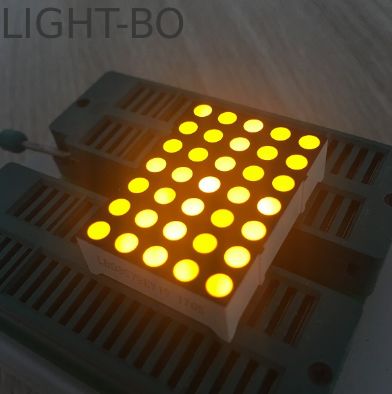

Application Scenario Image

Order Information​
Minimum Order Quantity: 1000 pieces​
Payment Terms: T/T, WU​
Place of Origin: Guangdong, China (Mainland)​
Means of Transport: Ocean, Air, Land​
Production Capacity: 20,000 pcs/day​
Packing Method: Standard packing​
Delivery Date: 5-7 days

​

More Color Options​
In addition to ultra-bright yellow, a variety of emitting colors are available, including red, blue, green, amber, orange, pure green, and pure white, to meet your different display needs.​
