Ultra White Common Anode 4 Digit 0.56" 7-Segment LED Display

High-performance LED display specifically designed for digital oven timer controls and built-in oven applications.

Product Overview

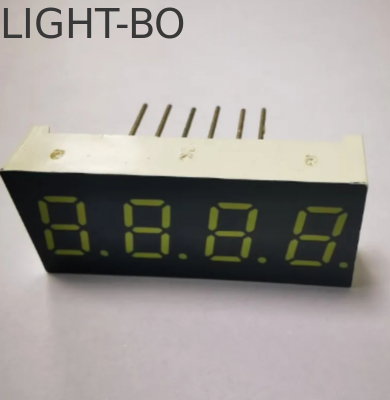

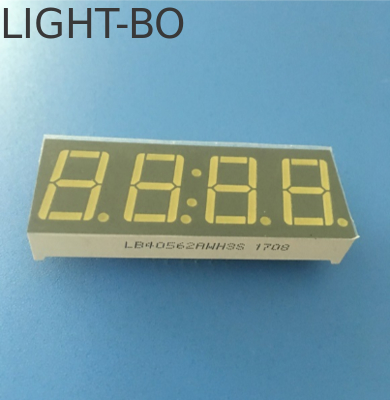

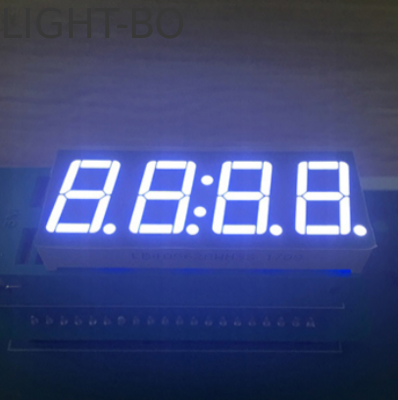

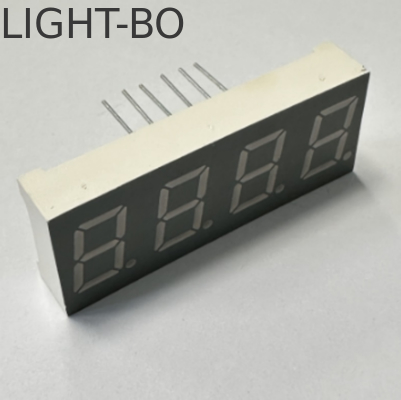

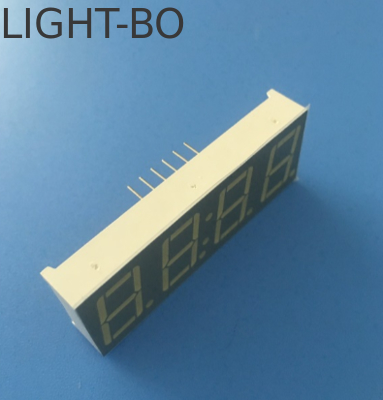

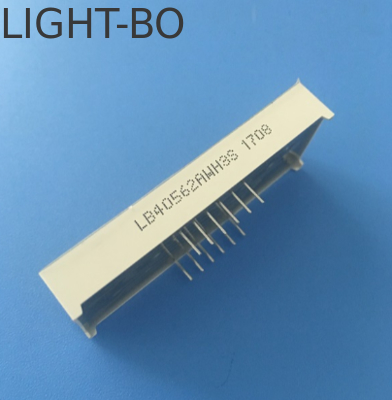

Light-Bo's standard-type LED display is engineered for multifunction digital oven timers and built-in oven controls, combining high performance with exceptional durability. Featuring a 0.56-inch (14.2mm) character height and compact package dimensions (58x19x13.5mm), it delivers ultra bright white emission with crisp white segments on a black surface, enhanced by protective film/sticker coverage.

Designed with SMD pins for easy PCB mounting, this display supports both common cathode and common anode configurations, providing adaptability to diverse oven control systems. Withstanding temperatures up to +120°C, it ensures reliable operation in high-heat environments—making it ideal for home appliances and oven timer applications.

Product Images

Key Features

Ultra Bright White Emission: Delivers vivid illumination for clear readability with multiple color options including red, yellow green, pure green, blue, amber, and orange
High-Temperature Resistance: Operates reliably at up to +120°C, ideal for built-in ovens and high-heat home appliances
SMD Pin Design: Enables easy, secure mounting on PCBs, streamlining assembly for manufacturers
Uniform Segments: Continuous, evenly lit segments ensure crisp numeric display with wide viewing angles
Energy Efficient: Low power consumption reduces energy usage with long lifespan minimizing replacement needs
Versatile Polarity: Supports both common cathode and common anode configurations for flexible integration
Protective Surface: White segments on black surface with protective film/sticker for added durability and scratch resistance
RoHS Compliant: Meets global environmental standards ensuring safety and sustainability

Technical Specifications

Specification	Details
Brand Name	Light-Bo
Type	Standard
Character Height	14.2mm (0.56 inch)
Package Dimensions	58x19x13.5mm
Emitting Color	Ultra bright white (multi-color options)
Pin Type	SMD
Polarity	Common Cathode / Common Anode
Operating Temperature	Max. +120°C
Surface Design	White segments, black surface with film/sticker
Compliance	RoHS

Applications

Multifunction digital oven timers
Built-in oven controls
Home appliances (microwaves, high-heat devices)
Kitchen electronic displays requiring high-temperature resistance

Order & Logistics

Parameter	Details
Minimum Order	1000 pieces
Trade Term	EXW
Payment Terms	L/C, T/T, WU
Origin	Guangdong, China (Mainland)
Transport Options	Ocean, Air, Land
Production Capacity	20,000 pcs/day
Packing	Plastic Tray (secure protection for transit)
Delivery Time	10-15 days

Why Choose This Display?

Light-Bo's LED display is engineered to thrive in high-heat environments, making it the perfect choice for oven timers and built-in appliances. With SMD pins for easy installation, versatile color options, and RoHS compliance, it balances performance, durability, and sustainability. Backed by a production capacity of 20,000 pcs/day and fast 10-15 day delivery, it ensures timely supply for your manufacturing needs.

Product Parameters

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
