Red 3 digit 7segment LED Display for Refrigerator Controller

Red 3 digit 7segment LED Display for Refrigerator Controller

Brand Name:	LIGHT-BO
Model Number:	LB30523IR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Emitting Colour:

Super Bright Red

Digital Height:

13.2mm

Description:

Small And Light, Easy Assembl

Segment Type:

Common Anode

Luminous Intensity:

50-60mcd

Panel Size:

Customized

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Product Description

Red 3 digit 7segment LED Display for Refrigerator Controller

Product Descripition

Part NO.	LB30523IR1B	Can print your part number
Digit number	3 digit	2digits,3digits, 4digits,5digits,6 digits
Digit height	13.2mm	0.25,0.36,0.39....5.0(inch)
Color	RED	White, blue,pure green, yellow-green, orange,etc.
Size	40198mm	Other size are supported
Polarity	Common Anode	Common Cathode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer’s drawing or idea
LOGO printing	Support	Based on customer’s drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Quick Specifications

1. Display Types & Sizes

7-segment LED displays in various configurations:

Digit sizes: 0.25" to 20" (wide range for different applications)

Digit count: Single-digit (1) up to 6-digit displays

2. Segment Variations

Available in 7-segment, 14-segment, and 16-segment designs for enhanced character display flexibility.

3. Emitting Colors

Multiple color options: Red, Yellow-Green, Green, Blue, Yellow, Pink, White, and Bi-Color LEDs.

4. Surface Colors

Customizable housing finishes: Black, Gray, or Red to match different design requirements.

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Key Features of Our Segment LED Displays:

• High Brightness Output - Optimized forward voltage delivers superior luminous intensity

• Energy Efficient - Ultra-low power consumption with minimal operating current

• Uniform Illumination - Perfectly balanced brightness across all segments

• Standard Industrial Sizing - Compatible with most industry applications

• High Visibility - Maintains excellent readability even in bright ambient light

• Reliable Performance - Stable operation with consistent output

• Extended Durability - Engineered for long operational lifespan

• Eco-Compliant - Meets all RoHS and REACH environmental standards

Applications:

Elevator & Lift Systems

Floor position indicators

Directional displays

Digital Signage Solutions

Moving message boards

Public information displays

Consumer Electronics

Home appliance interfaces

Control panel indicators

Industrial Equipment

Process control displays

Measurement readouts

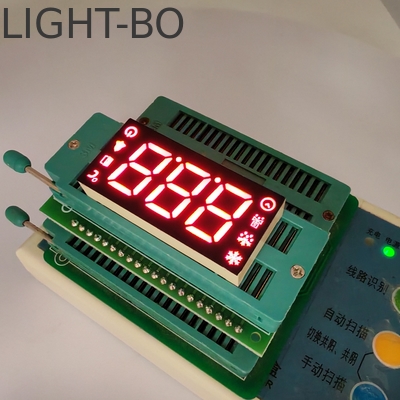

Red 3 digit 7segment LED Display for Refrigerator Controller 0

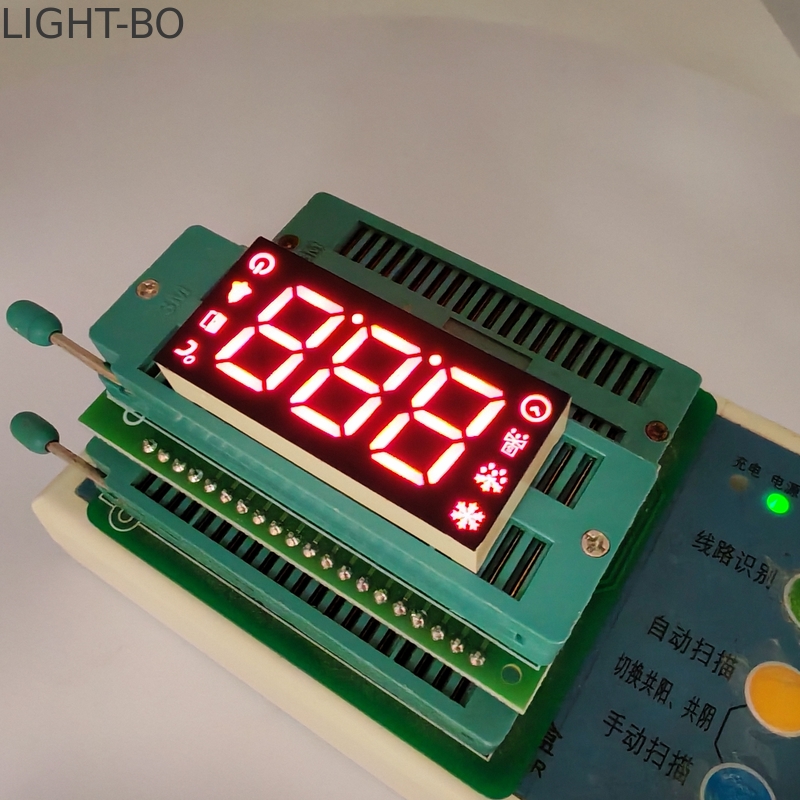

Red 3 digit 7segment LED Display for Refrigerator Controller 1

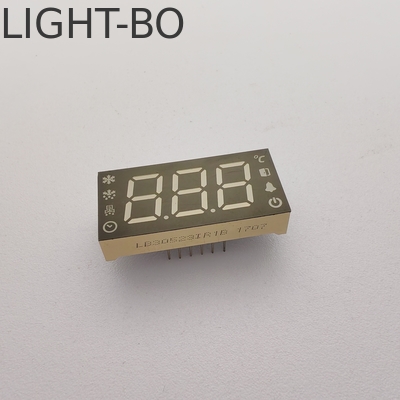

Red 3 digit 7segment LED Display for Refrigerator Controller 2

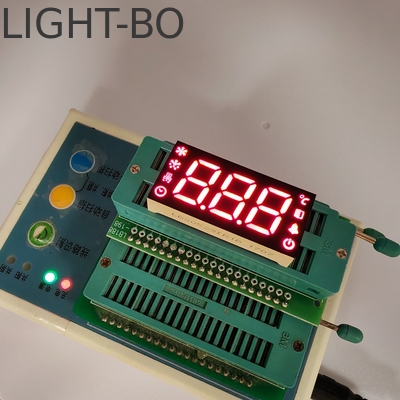

Red 3 digit 7segment LED Display for Refrigerator Controller 3
