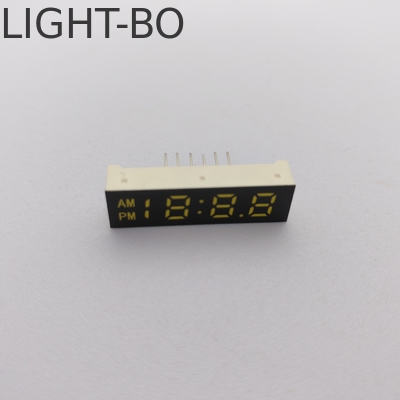

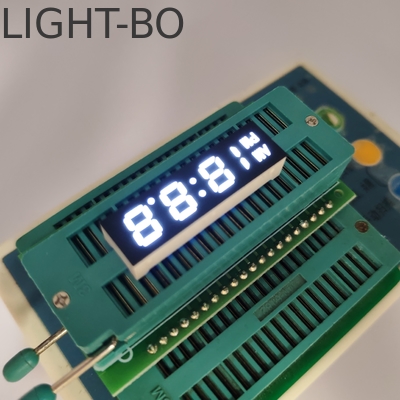

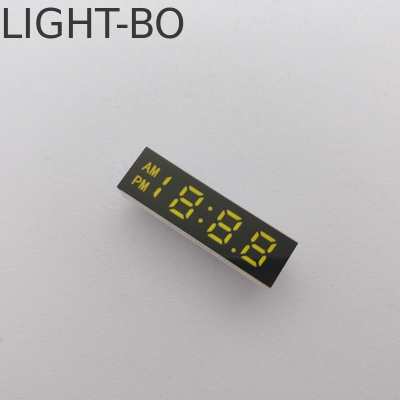

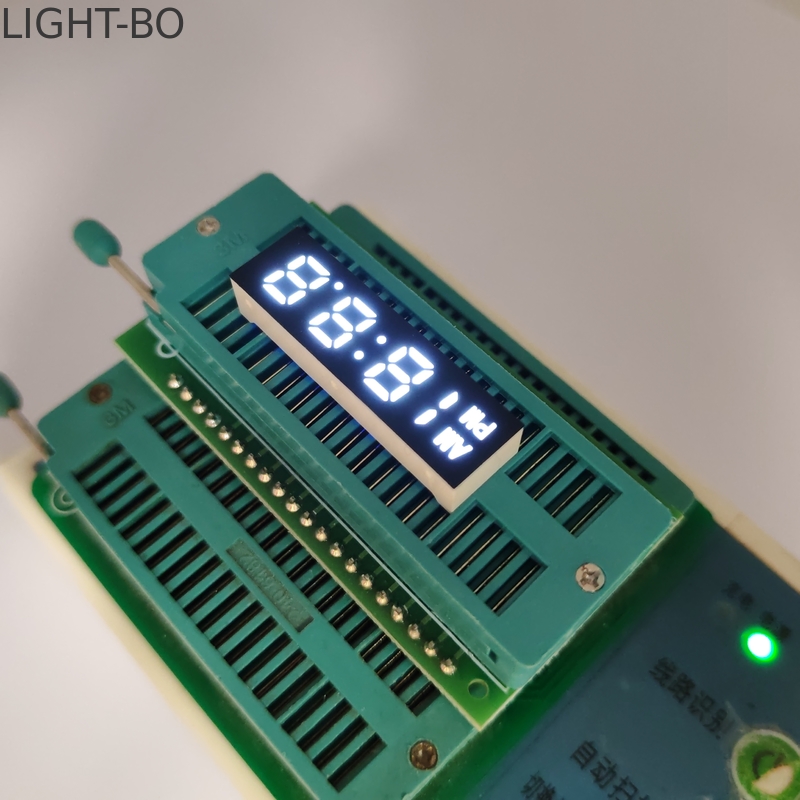

3 Digit 7 Segment LED Display for Timer Control

Name: 3 Digit 7 Segment LED Display for Timer Control
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB3510LWH1S
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB3510LWH1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Packing Size:

35*10*7.2mm

Advantage:

Prompt Delovery,Stable Quality

Segment Color:

Ultra Bright White

Forward Voltage:

2.6-3.0V

Storage Temperature:

-40°C To +85°C

Materials:

Waterproof

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

3 digit 7 segment LED display

7 segment LED display for timer

LED display with timer control

Product Description

3 Digit 7 Segment LED Display for Timer Control

This 3-digit 7-segment LED display is specifically designed for timer control applications, offering excellent visibility and reliability in various industrial and commercial settings.

Product Specifications

Dimensions	35×10×7.2mm
Digit Height	6.5mm
Polarity	Common Cathode
Pin Type	SMD
Emitting Color	Ultra Bright White
Application	Timer Control
Working Temperature	+105°C to +120°C
Available Colors	Red, Blue, Green, White, Amber, Orange

LED Color Options & Technical Parameters

Yellow Green (Code: J/JU)

Vibrant yellow-green display offering optimal visibility with warm, inviting illumination perfect for timer applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	30	-	40	mcd
Wavelength	Dλ	If=10mA	569	-	574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing excellent visibility with comfortable, attention-grabbing illumination.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.5	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Wavelength	Dλ	If=10mA	585	-	595	nm

Orange (Code: F)

Energetic orange color delivering high visibility with vibrant, dynamic illumination.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Wavelength	Dλ	If=10mA	600	-	605	nm

Super Bright Red (Code: R)

High-intensity red display offering maximum visibility and attention-commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.2	V
Luminous Intensity	Iv	If=10mA	50	-	60	mcd
Wavelength	Dλ	If=10mA	630	-	635	nm

Ultra Bright Red (Code: UR)

Maximum intensity red with unparalleled brightness for critical visibility applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.2	V
Luminous Intensity	Iv	If=10mA	80	-	100	mcd
Wavelength	Dλ	If=10mA	625	-	635	nm

Pure Green

Crisp green illumination ideal for eco-friendly designs and applications requiring natural, refreshing visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	-	3.2	V
Luminous Intensity	Iv	If=10mA	120	-	180	mcd
Wavelength	Dλ	If=10mA	515	-	525	nm

Ultra Bright Blue (Code: BH)

Vibrant blue illumination providing modern, sophisticated aesthetic with excellent visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	-	3.2	V
Luminous Intensity	Iv	If=10mA	120	-	140	mcd
Wavelength	Dλ	If=10mA	460	-	465	nm

Ultra Bright White (Code: WH)

Pristine white illumination offering maximum clarity and sophisticated visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	-	3.2	V
Luminous Intensity	Iv	If=10mA	120	-	140	mcd
Color Temperature	K	If=10mA	5500	20	6800	K

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with unwavering commitment to excellence and reliability.

Product Applications

Our 3-digit 7-segment LED displays are engineered for seamless integration into various applications including household appliances, temperature and humidity monitoring systems, refrigerator controllers, thermostats, and HVAC systems. These displays combine advanced technology with elegant design to deliver outstanding performance and peerless quality.

Certifications & Facilities

Office and Factory Overview

Company Exhibitions

Shipping & Logistics

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are the original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED displays, Dot matrix LED displays, Arrow LED displays, Custom Design LED displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we can provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with materials in stock, we can deliver within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes, we can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are the shipping charges?

A: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and approved mold drawings.

Q14: What shipping methods do you use?

A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
