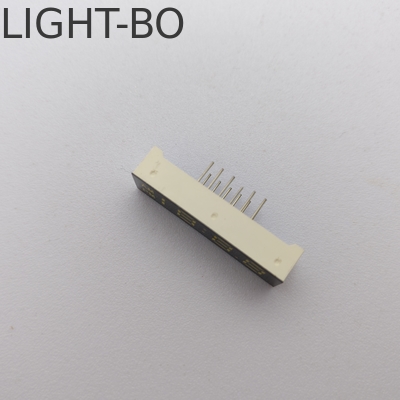

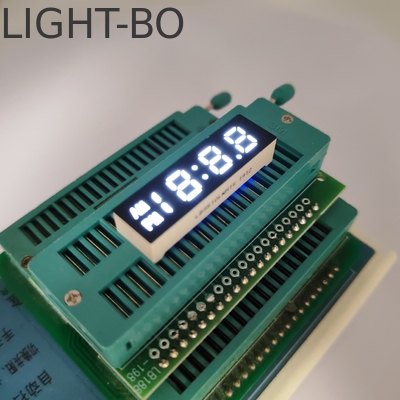

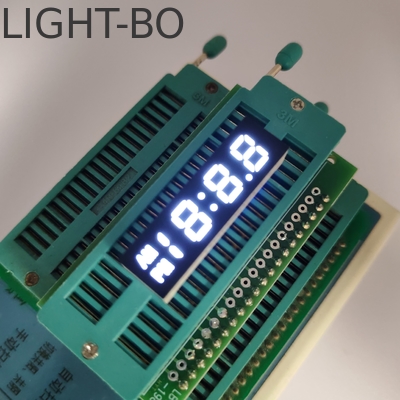

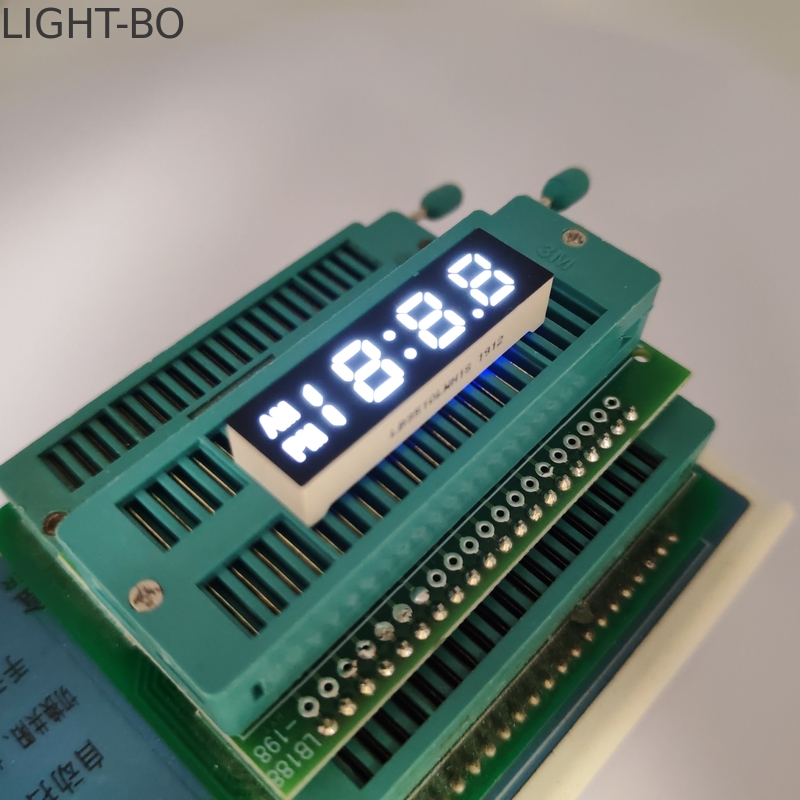

Ultra Bright white 3 Digit 7 Segment LED Display for Timer Control

Name: Ultra Bright white 3 Digit 7 Segment LED Display for Timer Control
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB3510IWH1S
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB3510IWH1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Packing:

35*10*7.2MM

Advantage:

Prompt Delovery,stable Quality

Segment Color:

Ultra Bright White

Forward Voltage:

2.6-3.0v

Storage Temperature:

-40°C To +85°C

Materials:

Waterproof

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

ultra bright white 7 segment LED display

3 digit LED display for timer control

7 segment LED display with warranty

Product Description

Ultra Bright White 3 Digit 7 Segment LED Display for Timer Control

High-performance 3-digit 7-segment LED display designed specifically for timer control applications with ultra bright white illumination.

Product Specifications

Dimensions	35×10×7.2mm
Digit Height	6.5mm
Polarity	Common Anode
Pin Type	SMD
Emitting Color	Ultra Bright White
Application	Timer Control
Working Temperature	+105°C to +120°C
Available Colors	Red, Blue, Green, White, Amber, Orange

Key Features

High-contrast design with white segments on black background for optimal readability
Superior brightness with high luminous intensity for clear visibility in all lighting conditions
Energy efficient with low current consumption to reduce power requirements
Dependable performance with stable operation across temperature ranges
Uniform illumination with consistent light distribution across all segments
Easy integration with PCB-mountable package for simplified assembly
Driver compatibility with direct interface to common ICs
Eco-friendly RoHS compliant construction

Technical Parameters by Color Code

Yellow Green (Code: J/JU)

Dynamic and vivid yellow green color for enhanced visual aesthetics

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd
Wavelength	Dλ	If=10mA	569	574	nm

Amber/Yellow (Code: Y)

Warm, cozy hue with inviting glow and magnetic appeal

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	585	595	nm

Orange (Code: F)

Striking, vibrant orange for energy and excitement

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	600	605	nm

Super Bright Red (Code: R)

Vibrant red for displays that demand attention

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	50	60	mcd
Wavelength	Dλ	If=10mA	630	635	nm

Ultra Bright Red (Code: UR)

Intensely luminous red for unmatched visibility

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	80	100	mcd
Wavelength	Dλ	If=10mA	625	635	nm

Pure Green

Refreshing, crisp green for eco-friendly themes

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	180	mcd
Wavelength	Dλ	If=10mA	515	525	nm

Ultra Bright Blue (Code: BH)

Cool, vibrant blue for modern aesthetics

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	140	mcd
Wavelength	Dλ	If=10mA	460	465	nm

Ultra Bright White (Code: WH)

Pristine white for unmatched clarity and sophistication

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

About Manufacturer

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) is a beacon of excellence in OEM and ODM services since 2006. Certified under ISO 9001:2015, our legacy of over 15 years showcases our relentless pursuit of innovation and quality.

LIGHTBO empowers its clients with premier, budget-friendly custom solutions that not only reduce expenses but also enhance competitive advantages in the global marketplace.

Product Applications

Our 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are at the forefront of innovation and design. They integrate seamlessly into diverse applications, enhancing both function and style. Whether you're upgrading home appliances, providing exact temperature and humidity readings, or developing robust solutions for refrigerator controllers, thermostats, and HVAC systems, our products exemplify superior performance and quality.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
