5 Digit 7mm 7 Segment LED Display Common Anode Ultra Bright White for Frequency Converter

5 Digit 7mm 7 Segment LED Display Common Anode Ultra Bright White for Frequency Converter

Product Description

Product Overview

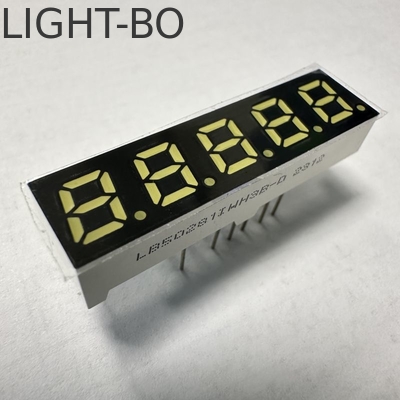

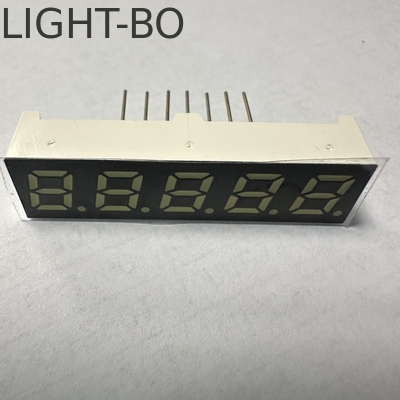

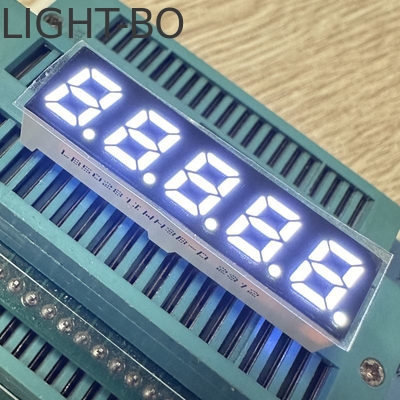

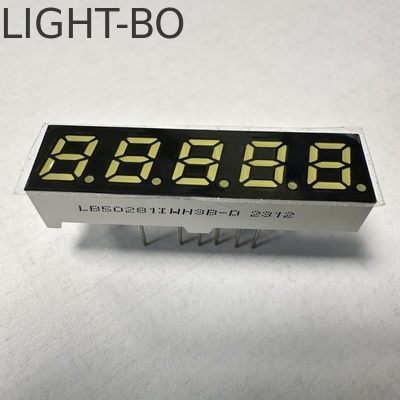

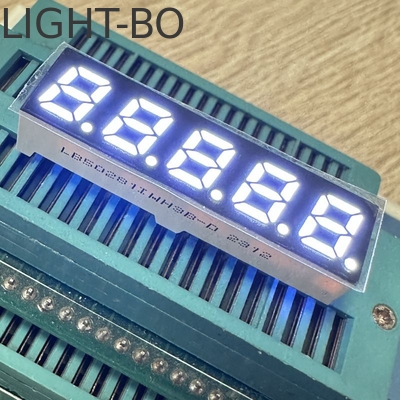

Light-Bo's 5-digit 7-segment LED display, featuring a 0.28-inch (7mm) character height and ultra bright white emission, is engineered for precision in space-constrained devices. With compact outer dimensions (38.6×10.2×8mm) and a high-contrast design—white segments on a black surface—it delivers exceptional luminous intensity (120-160mcd) while maintaining low power consumption. Configured as common anode, this display combines stable performance, easy assembly, and RoHS compliance, making it ideal for instrument panels, home appliances, digital indicators, LED clock displays, and set-top boxes.

Product Image

Key Features

5-Digit Compact Design: 0.28-inch (7mm) character height and 38.6×10.2×8mm dimensions provide ample space for extended numeric readouts (e.g., timestamps, codes) without occupying excess space—perfect for set-top boxes and LED clocks.

Ultra Bright White Emission: Vivid white light with 120-160mcd intensity ensures high visibility in both bright and dim environments, with uniform illumination across all 5 digits for crisp display quality.

High Contrast Aesthetics: White segments on a black surface enhance readability, ensuring digits stand out clearly—critical for instrument panels and home appliances used in diverse lighting conditions.

Energy Efficiency: Low forward voltage (2.8-3.2V/LED) and optimized current (5-10mA/LED) minimize power usage, paired with stable performance for long-term reliability.

Easy Integration: Common anode configuration, IC compatibility, and simple assembly streamline installation into PC boards, reducing manufacturing complexity.

Durable & Compliant: Long lifespan, RoHS compliance, and resistance to wear ensure safety and reliability in household and industrial applications.

Detail Image

Technical Specifications

Applications

Ideal for:

Instrument panels and multi-digit indicators

Home appliances (compact numeric displays)

Digital indicators and LED clock displays

Set-top boxes and electronic devices requiring 5-digit readouts

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

•
