Ultra blue 0.56" single digit common anode surface mount 7 segment LED display for home appliance

Ultra blue 0.56 " single digit common anode surface mount 7 segment LED display for home appliance

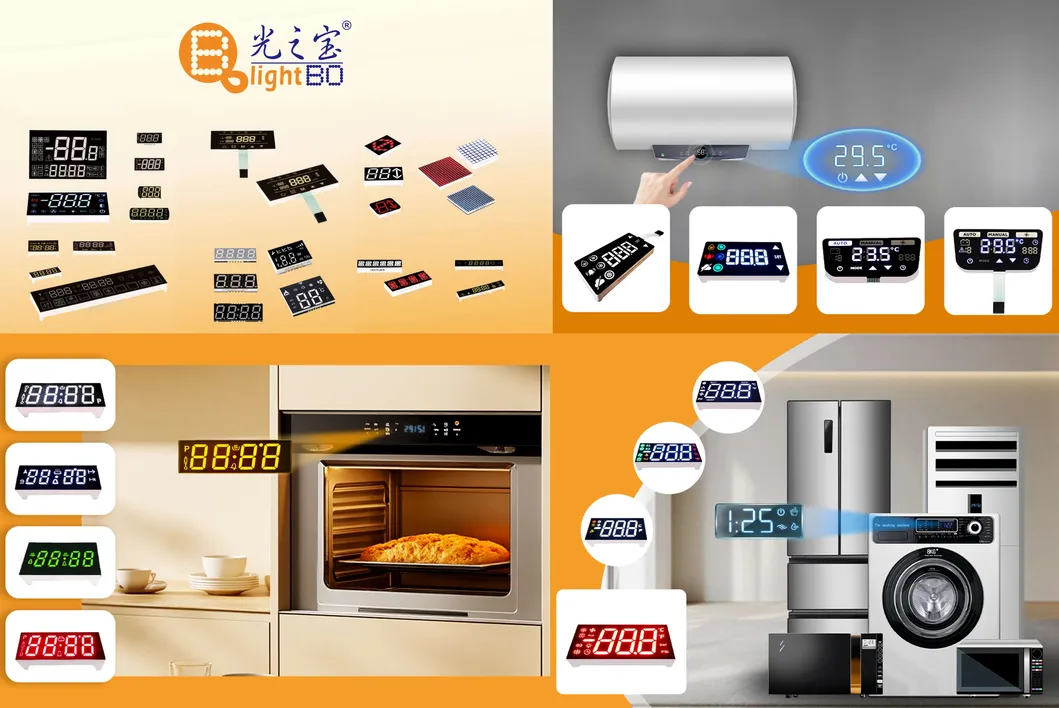

Discover the versatility of our LED solutions, from dynamic LED displays and high-precision dot-matrix LED displays to reliable LED segment displays-including the popular 7-segment LED displays-all available as ready-to-integrate LED display modules to elevate your projects!

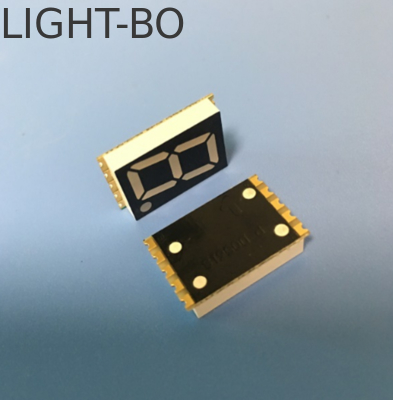

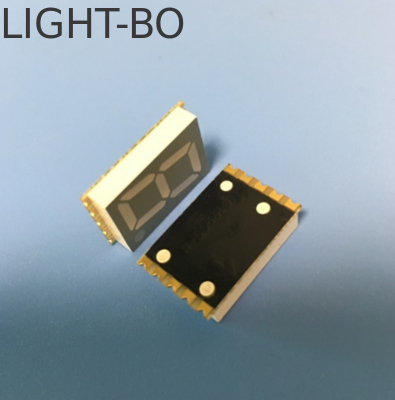

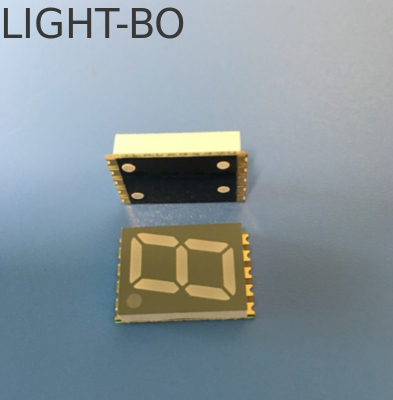

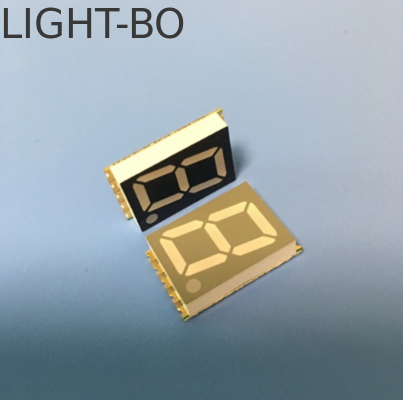

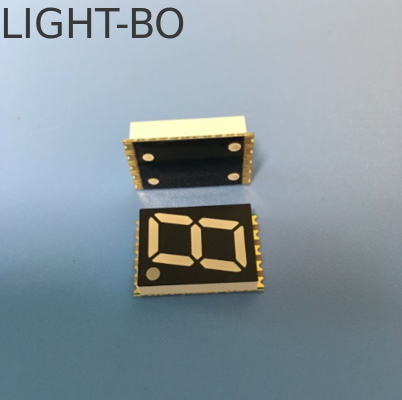

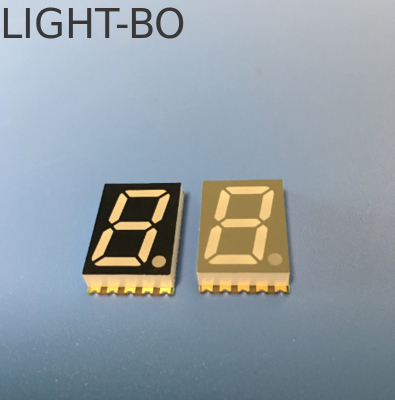

This surface mount device (SMD) 7-segment LED display is engineered for seamless integration into home appliances, instrument panels, and digital indicators-featuring a 0.56-inch (14.2mm) character height and ultra-slim outer dimensions (12.4×19×3.75mm).

1. SMD Design for Space-Saving Integration
   Ultra-slim 3.75mm depth: Fits into the thin enclosures of modern home appliances (e.g., slim microwaves, compact air fryers) or dense instrument panels-no need for bulky through-hole cutouts, reducing overall device thickness.
2. Optimal Visibility for Home Environments
   Ultra-bright blue emission: 460-465nm wavelength and 80-100mcd intensity cut through kitchen ambient light (overhead lamps, sunlight) while maintaining a comfortable glow-ideal for reading microwave timers (e.g., "02:30") or oven temperature settings (e.g., "180°C") at a glance.
3. Efficient & Reliable Performance
   Low power consumption: 2.8-3.5V/LED forward voltage and 10-15mA current draw reduce energy usage, aligning with eco-friendly home appliance standards (e.g., ENERGY STAR) and lowering long-term operational costs for end-users.
4. Versatility & Compliance
   Multi-color & panel options: Beyond ultra-bright blue, 6 additional colors let brands match appliance aesthetics (e.g., red for "error" alerts, green for "normal" status). Customizable panel colors (e.g., white, gray) further blend the display with device designs.

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

•
