15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building

Name: 15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: GZB-GFA5W
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	GZB-GFA5W
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Power Rating:

15W

Physical Size:

195×195mm

Input Voltage:

AC100-240V

LED Quantity:

75 LEDs

Color Rendering Index (Ra):

≥80

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

15W ultra thin LED downlights

195x195mm high efficiency LED light bar

120 degree beam angle downlights

Product Description

GZB-GFA15W 15W Ultra-Thin LED Downlight - 195x195mm, 120° Beam Angle for Building Indoor Lighting

The GZB-GFA15W ultra-thin LED downlight is a high-efficiency lighting solution engineered for modern building interiors, combining sleek design (195x195mm size) with powerful performance. Operating at 15W with 75 LEDs, it delivers 1275lm of soft, flicker-free light across three adjustable color temperatures (3000K warm white, 4500K natural white, 6000K cool white) and a high color rendering index (Ra≥80)--ensuring true-to-life color representation for spaces like supermarkets, hospitals, and offices.

Key Specifications

Specification	Details
Model Number	GZB-GFA15W
Power Rating	15W (high efficiency for energy savings)
Physical Size	195×195mm (ultra-thin profile for unobtrusive installation)
Input Voltage	AC100-240V (wide range for global compatibility) / 50Hz
LED Quantity	75 LEDs (ensures high lumen output and uniform light)
Color Temperature (CCT)	3000K (warm white), 4500K (natural white), 6000K (cool white)
Color Rendering Index (Ra)	≥80 (high CR for accurate color reproduction)
Luminous Flux	1275lm (bright enough for large spaces)
Beam Angle	120° (wide coverage for uniform lighting)
Power Factor (PF)	≥0.9 (high power efficiency, minimizes energy waste)
Housing Color	Spray white (blends with most ceiling designs)

Core Product Features

1. Exceptional Energy Efficiency & Long Lifespan

80% Light Conversion Rate: Unlike traditional downlights that waste energy as heat, this LED downlight converts 80% of electrical energy into light--cutting power consumption by 70%. For example, a supermarket using 100 units would save ~5,000kWh annually compared to traditional lighting.

50,000-Hour Lifespan: Calculated by half luminous decay, it lasts 5-10 times longer than incandescent or fluorescent downlights. This is critical for hard-to-replace areas (e.g., high ceilings in office buildings or hospital operating rooms), reducing maintenance costs and downtime.

2. Superior Luminous Performance

Soft, Flicker-Free Light: Instant start (no warm-up time) and zero flicker prevent eye strain--essential for spaces with prolonged use, such as school classrooms, office workstations, or hospital waiting areas.

High Color Rendering (Ra ≥80): Ensures colors appear true to life: ideal for supermarkets (to make produce look fresh), art exhibitions (to preserve artwork colors), or hospitals (for accurate patient skin tone observation).

120° Wide Beam Angle: Provides broad, uniform coverage without harsh shadows. A single unit can illuminate ~6-8 square meters, reducing the number of fixtures needed for large spaces like conference halls.

3. Easy Installation & Strong Compatibility

Retrofit-Friendly Design: Installation dimensions match traditional downlights exactly--no need to modify ceilings or electrical circuits. Simply replace old fixtures with this LED downlight and connect to power for immediate use, saving time and renovation costs.

Wide Voltage Compatibility (AC100-240V): Works seamlessly across global voltage standards, making it suitable for international projects (e.g., offices in Europe, schools in Asia, or supermarkets in North America).

4. Green & Safe Operation

No Harmful Radiation/Substances: Free from UV and IR radiation (prevents fading of furniture, fabrics, or artwork)--meeting environmental standards and ensuring safe disposal.

Low Heat Emission: Efficient heat dissipation design keeps the fixture cool to the touch, reducing fire risks and protecting ceiling materials. This is especially important for enclosed spaces like false ceilings in offices or homes.

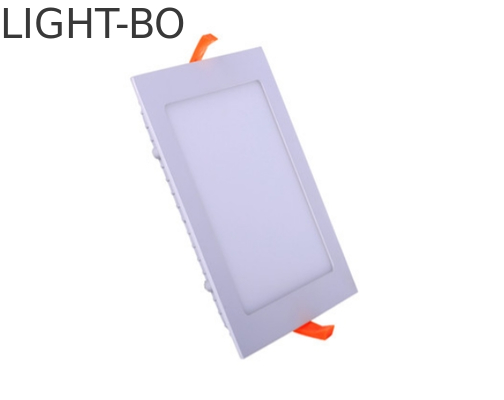

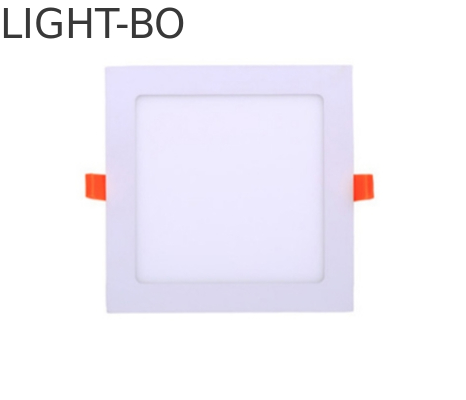

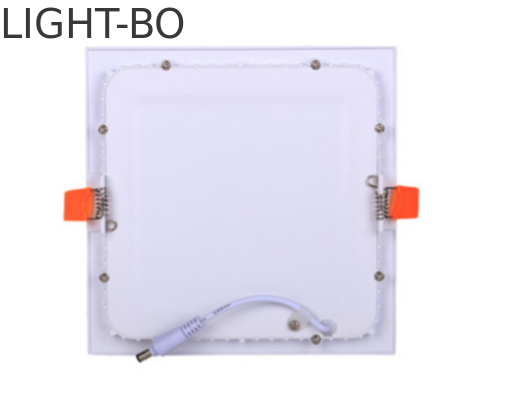

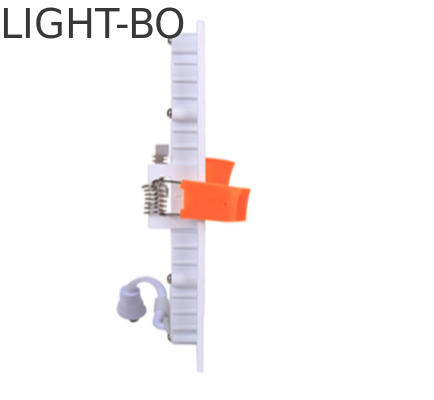

Product Image

Applications

Tailored for indoor building lighting where efficiency, durability, and aesthetics matter:

Commercial Spaces: Supermarkets, office buildings, and exhibition halls

Public Facilities: Schools, hospitals, and municipal buildings

Residential Areas: Living rooms, bedrooms, and kitchens

Why Choose the GZB-GFA15W LED Downlight?

This downlight solves key pain points for building lighting:

Cost Savings: 70% energy reduction and 50,000-hour lifespan lower long-term electricity and maintenance costs

Versatility: 3 CCT options and 120° beam angle adapt to diverse spaces

Ease of Retrofit: No circuit/ceiling modifications mean fast, low-cost upgrades

For architects, contractors, or facility managers seeking a high-performance, eco-friendly lighting solution for buildings, the GZB-GFA15W delivers unbeatable value in efficiency, durability, and design.

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 3

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 4

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 5

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 6

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 7

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 8

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 9

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 10

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 11

15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building 12

FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 What will be the samples lead time for customzied products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
