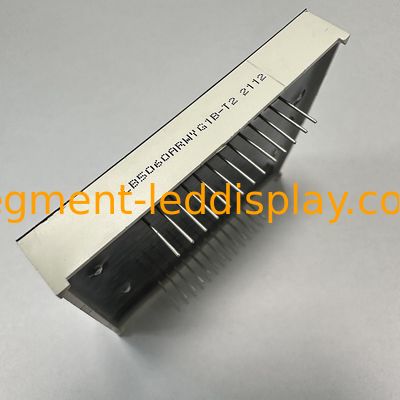

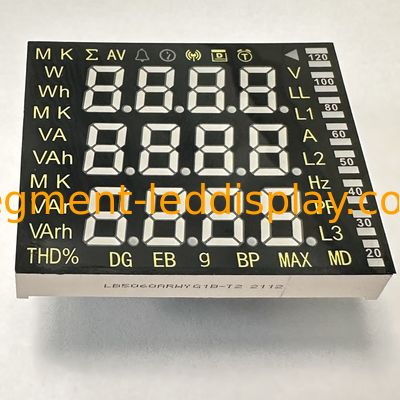

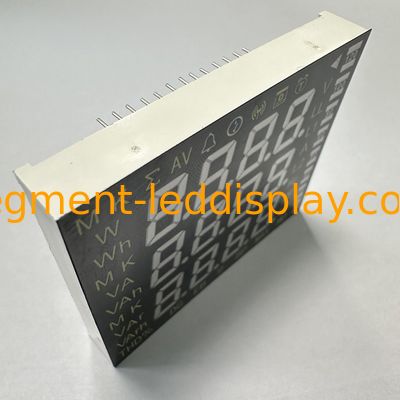

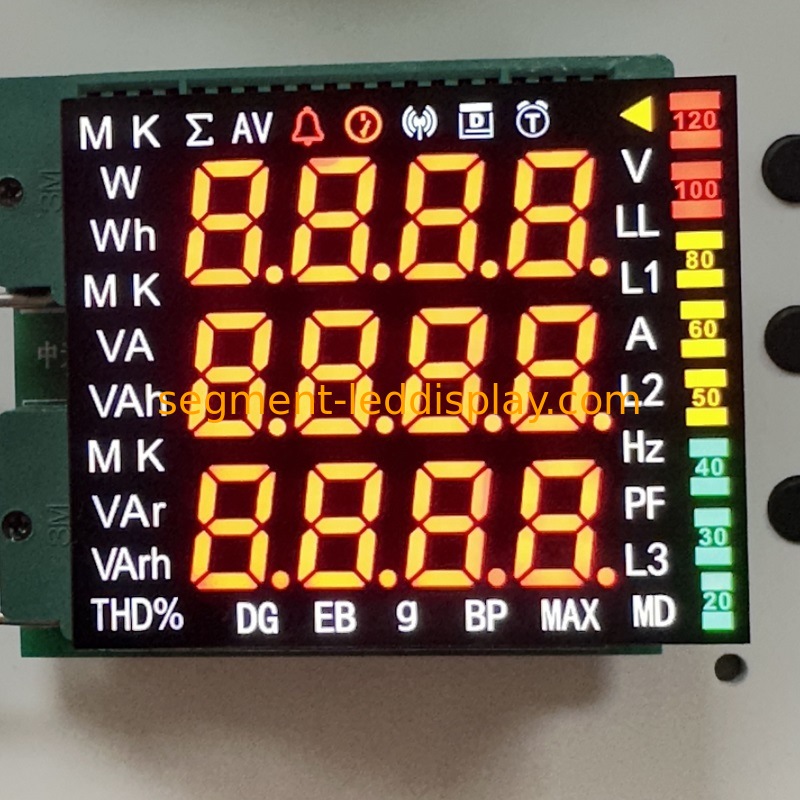

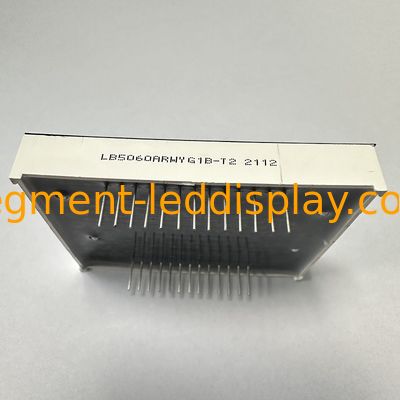

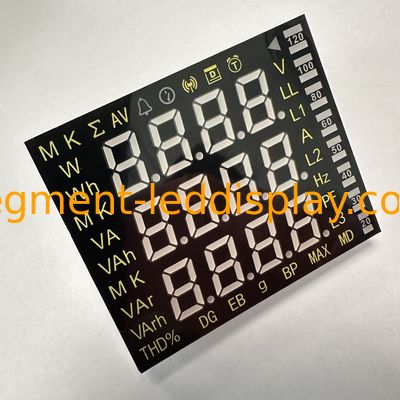

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters

Name: Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB5060ARWYG1B-T2
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB5060ARWYG1B-T2
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union,
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Polarity:

Common Cathode

Type:

Standard

Character Height:

12mm ( 0.47")

Trade Term:

EXW

Packing:

Epe+carton

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

multicolor 3 row LED display

4 digit LED display for multimeters

7 segment LED display with warranty

Product Description

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters

Product Overview
Light-Bo's multicolor 3-row 4-digit 7-segment LED display is a professional multi-parameter readout solution dedicated to electrical multimeters and precision instrumentation. It supports simultaneous multi-value display with color‑coded rows for intuitive identification, featuring ultra‑bright illumination, wide viewing angle, low power consumption, and long‑term stability—ideal for workshop, industrial, and portable test equipment.

Technical Specifications (Table Format)

Category	Parameter	Specification
Basic Design	Display Type	3‑Row 4‑Digit 7‑Segment LED Display
	Polarity	Common Cathode
	Digit Height	11 mm (0.43 inch)
	Outer Dimensions (L×W×H)	50 × 60 × 9 mm
	Segment / Surface	Yellow segments, black surface
Optical Performance	Main Colors	Ultra bright white, red, yellow, pure green
	Optional Colors	Ultra bright blue, yellow green, amber, orange
Electrical Parameters	Forward Voltage (VF)	White / Blue / Green: 2.8–3.2 V/LED Red / Amber / Orange: 1.8–2.2 V/LED
	Forward Current	5–10 mA per LED
Quality & Compliance	Key Features	High luminous intensity, stable performance, IC compatible, long lifespan (50,000+ hours)
	Certification	RoHS compliant

Key Features (Multimeter‑Optimized)
3‑row × 4‑digit structure – Simultaneously displays voltage (V), current (A), frequency (Hz), resistance (Ω) and multiple parameters.
Row‑specific multicolor coding – Improves reading efficiency and reduces misoperation in workshop environments.
Ultra bright & wide viewing angle – Clear visibility under various ambient light conditions.
Low power consumption – 5–10 mA/LED, suitable for battery‑powered multimeters.
Long lifetime & high reliability – 50,000+ hours lifespan, stable under continuous operation.
Common cathode design – Easy to drive with mainstream MCU and driver ICs.
Compact profile – 50×60×9 mm, easy to embed in multimeter housings.

Order & Logistics Information

Item	Details
Brand	Light‑Bo
MOQ	1000 pieces
Trade Term	EXW (Guangdong, China)
Production Capacity	20,000 pcs/day
Packaging	EPE foam + carton (anti‑static, shockproof)
Lead Time	10-15 days (standard models)

Applications
Electrical multimeters (voltage, current, resistance, frequency display)
Industrial power monitoring instruments
Home appliance test equipment
Multi‑parameter sensor digital indicators
Portable measurement & diagnostic equipment

Product Parameters

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .

Light Bo has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Products Applications

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 0

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.

Certifications

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 1

Office and Factory Overview

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 2

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 3

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 4

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 5

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 6

Company Exhibitions

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 7

Multicolour 3 Row 4 Digit LED Display for Electrical Multimeters 8

Shipping Services

FAQ

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ?

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment?

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list?

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.

Q11 Can you do custom design products?

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else?

A: Yes , we will not show it or sell to others without your authorization.

Q13 What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods?

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products?

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
