Ultra Bright White 14.2mm (0.56-Inch) 4-Digit 7-Segment Common Cathode LED Display for Multimeters

Name: Ultra Bright White 14.2mm (0.56-Inch) 4-Digit 7-Segment Common Cathode LED Display for Multimeters
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40561LWH1B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40561LWH1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union,
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Charcter Height:

14.2mm (0.56 Inch)

Outer Dimensions:

50.3 X 19.0 X 8 Mm

Luminous Intensity:

120-160mcd

Forward Voltage:

2.8-3.2V/led

Polarity:

Common Anode

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

14.2mm 7-segment LED display

common cathode LED display for multimeters

ultra bright white 4-digit LED

Product Description

Ultra Bright White 14.2mm (0.56-Inch) 4-Digit 7-Segment Common Cathode LED Display for Multimeters

Product Overview
Introducing the Ultra Bright White 4-Digit 7-Segment Common Cathode LED Display—a precision-focused numeric solution engineered for multimeters, instrument panels, and home appliances. Designed to prioritize high visibility, accurate measurement readouts, and seamless integration, this 4-digit display excels at showing complex metrics: multimeter values, instrument panel data, or home appliance temps.
Its 14.2mm (0.56-inch) character height ensures exceptional readability from 0.5–2 meters, while the 50.3×19.0×8mm form factor fits standard multimeter enclosures—no bulky redesigns required. The white segments on a black surface create sharp contrast with ultra bright white light, cutting through bright ambient light without eye strain.
With common cathode polarity, low power consumption, and RoHS compliance, this display balances durability, energy efficiency, and performance—ideal for 24/7 operation in multimeters and precision measurement devices.

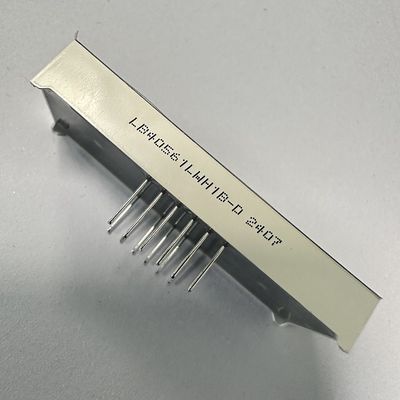

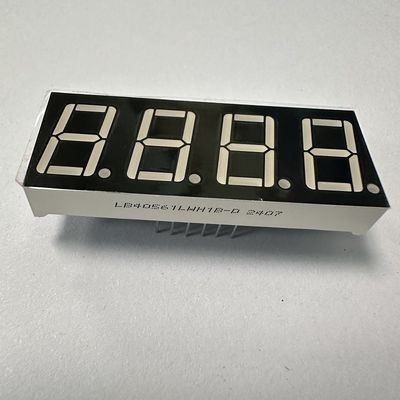

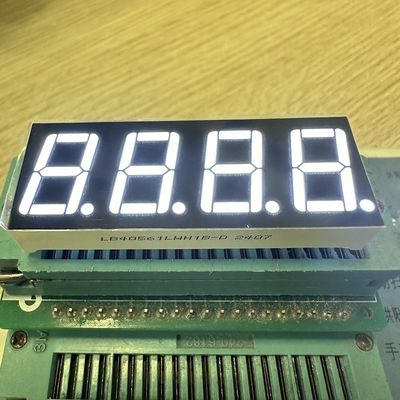

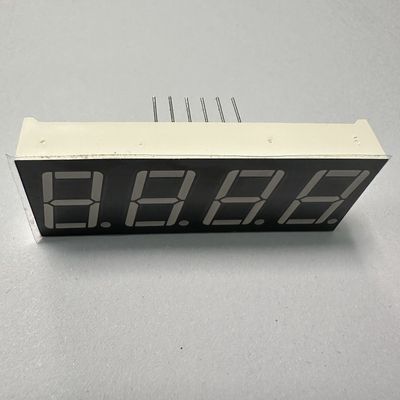

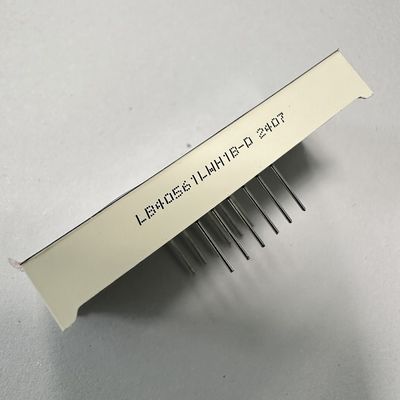

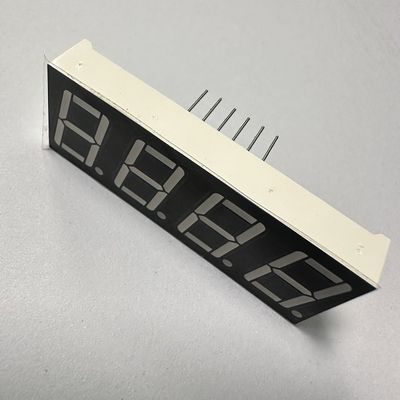

Product Image

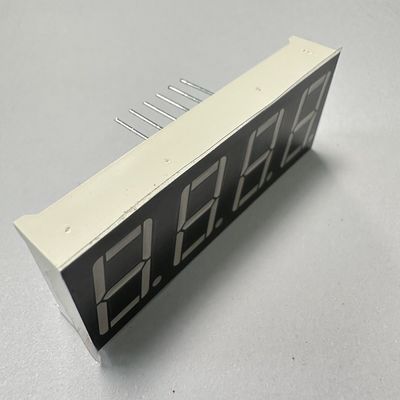

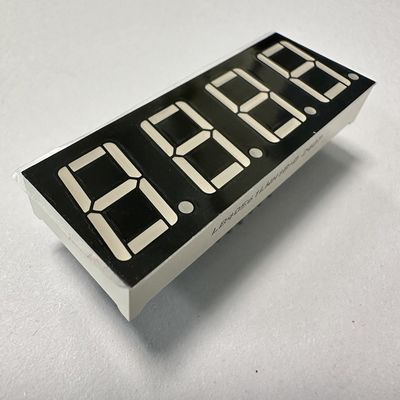

Ultra Bright White 14.2mm (0.56-Inch) 4-Digit 7-Segment Common Cathode LED Display for Multimeters 0

Ultra Bright White 14.2mm (0.56-Inch) 4-Digit 7-Segment Common Cathode LED Display for Multimeters 1

Key Features
1. High Visibility for Precision Measurements
Ultra Bright White Illumination (120-160mcd): Among the brightest in its class, it ensures fine measurement details stay clear in harsh lighting—no squinting to distinguish “0.05A” from “0.50A”.
White Segments on Black Surface: High contrast eliminates “washout” and fuzzy edges, making every digit (0-9) and decimal point sharp—avoids measurement errors that could damage components or mislead technicians.
4-Digit Precision: Supports 4-digit readouts with decimal point flexibility, matching the accuracy needs of professional multimeters—critical for testing sensitive electronics or low-current circuits.
2. Energy Efficiency & Stable Performance
Low Power Consumption (5-10mA/LED): Extremely low current draw minimizes energy use, extending battery life for portable multimeters—essential for field technicians working away from power outlets.
Optimized Forward Voltage: Compatible with standard 5V/12V power supplies used in multimeters and instrument panels—no need for custom voltage converters, simplifying circuit design.
Stable Operation in Variable Environments: Withstands temperature fluctuations and minor vibrations—maintains consistent brightness, no flickering during value updates.
3. Easy Integration & Durability
Common Cathode Polarity: Works with standard multimeter driver ICs —simplifies circuit design for manufacturers and integrates seamlessly with multimeter firmware.
Easy-to-Assemble Design: Compatible with PCB direct-mounting and automated production lines—ensures consistent alignment in multimeter panels, reducing manual labor errors and speeding up manufacturing.
Long Lifespan (50,000+ Hours): High-quality white LEDs match the 8–10 year service life of most multimeters—eliminates downtime from frequent display replacements, lowering maintenance costs for users.
4. Versatility & Compliance
Multi-Color Options: Beyond ultra bright white, available in red, blue, yellow green, pure green, amber, and orange—flexible for functional cues or brand-specific instrument designs.
RoHS Compliant: Free from lead, mercury, and harmful substances—safe for professional and home use, and export to global markets, meeting electrical equipment safety standards.

Technical Specifications

Category	Parameter	Specification (Multimeter-Optimized)
Basic Design	Display Type	4-Digit 7-Segment LED Display (supports decimal points for precision metrics)
	Polarity	Common Cathode
	Character Height	14.2mm (0.56 inch)
	Outer Dimensions (L×W×H)	50.3 × 19.0 × 8mm
	Segment/Surface Finish	White segments on Black Surface
Optical Performance	Emitting Color	Primary: Ultra Bright White; Optional: Red/blue/yellow green/pure green/amber/orange
	Luminous Intensity	120-160 mcd
Electrical Parameters	Forward Voltage (VF)	2.8-3.2V per LED (white/blue/green); 1.8-2.2V (red/amber/orange)
	Forward Current	5-10mA per LED
	Power Consumption	Low (energy-efficient for portable use)
Quality & Compliance	Core Advantages	High visibility, stable performance, IC compatible, easy assembly
	Compliance	RoHS Compliant

Applications
This display is purpose-built for precision measurement and instrument devices, including:
Multimeters: Professional/portable multimeters
Instrument Panels: Industrial power monitors, lab sensors.
Home Appliances: Smart ovens, precision coffee makers or air purifiers.
Digital Indicators: Battery testers, weight scales, or flow meters

Why Choose This Display for Multimeters?
Precision Readability: 4-digit support + high contrast ensure accurate measurement of fine values—avoids costly errors in circuit testing.
Battery-Friendly: Low current use extends portable multimeter life—critical for field technicians without easy power access.
Multimeter-Sized Fit: Slim dimensions fit standard multimeter enclosures—no need to redesign devices for better visibility.
Easy Manufacturing: Common cathode polarity + standard size fit existing multimeter PCBs—saves manufacturers time and cost.
Global Compliance: RoHS certification ensures export to key markets, aligning with electrical equipment safety standards.

Order & Logistics Information
Minimum Order Quantity (MOQ): 300 pieces for standard ultra bright white models; 500 pieces for custom colors/configurations.
Packing: Anti-static EPE + reinforced cartons (protects segments and pins during shipping).
Delivery Time: 5–7 days for standard orders; 10–12 days for custom color variants.
Transport: Express (FedEx/DHL for urgent prototypes), Air (medium-volume shipments), Ocean (bulk production runs for multimeter manufacturers).

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
