Customized Ultra White/Red 4 Digit 7 Segment LED Display module common anode for electrical meter panel

Name: Customized Ultra White/Red 4 Digit 7 Segment LED Display module common anode for electrical meter panel
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB6020IRW1B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB6020IRW1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union,
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Trade Term:

EXW

Payment Terms:

L/C, T/T, WU

Packing:

Epe+carton

Type:

Standard

Brand Name:

Light-Bo

Character Height:

14.2mm ( 0.56")

Outer Dimensions:

60x20x8mm

Polarity:

Common Cathode

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

customized 7 segment LED display

common anode LED display module

ultra white red LED display

Product Description

Customized Ultra White/Red 4-Digit 7-Segment LED Display Module

This customized 4-digit 7-segment LED display module is specially designed for electrical meter panels, featuring stable performance, high brightness, and low power consumption. It supports ultra white and ultra red emitting colors, with customizable options to meet different application requirements.

Product Specifications

Display Type	4-digit 7-segment LED display module
Outer Dimensions	60 × 20 × 8 mm
Digit Height	14.2 mm (0.56")
Emitting Color	Ultra white / Ultra red
Polarity	Common Anode
Other Colors	Various colors available upon request

Key Advantages

High luminous intensity output
High efficiency & low power consumption
Extremely low current operation
Uniform luminous distribution on each segment
Stable performance & long service life
Easy PCB mounting & IC compatible
Customizable colors and specifications
Suitable for electrical meters and instrument panels

Applications

Electrical meter panels
Instrument and measurement equipment
Industrial control panels
Digital numeric indicators
Various meter display systems

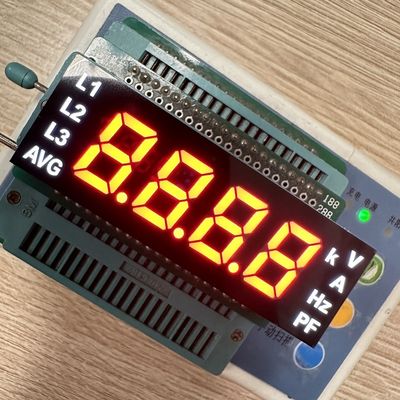

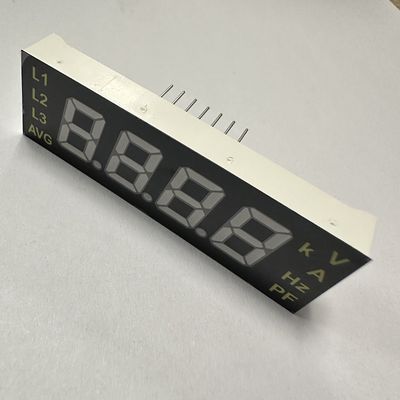

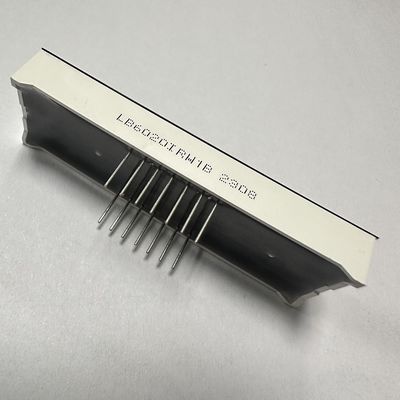

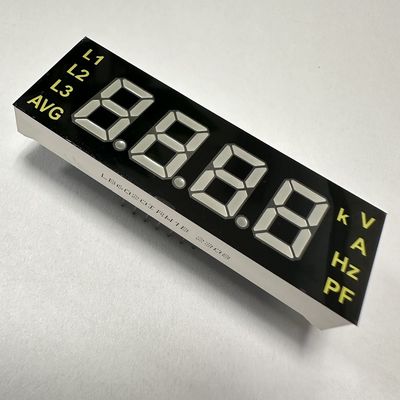

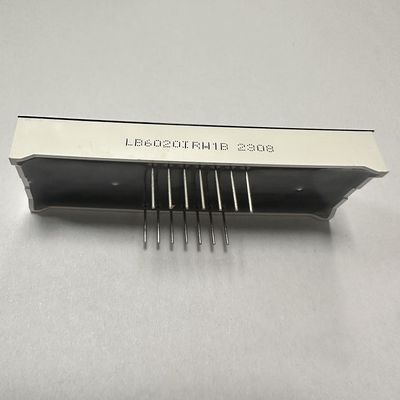

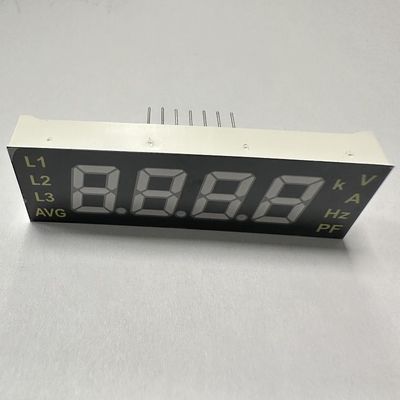

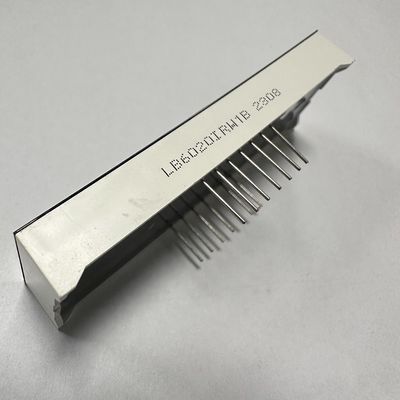

Product Images

Delivery Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Estimated Delivery Time (days)	5	15	Pending

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)
Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control and more.

Certifications

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.
