7 Segment LED Display
Created with Pixso.

Ultra bright white 4 Digit 7 Segment LED Display 0.39inch Common Anode for instrument panel

Ultra bright white 4 Digit 7 Segment LED Display 0.39inch Common Anode for instrument panel

Brand Name: LIGHT-BO
Model Number: LB40391-3-EWH3B-D
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 20000 PCS/Day
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Trade Term:
EXW
Packing:
EPE+Carton
Type:
COB
Digit Height:
9.9 Mm ( 0.39 Inch)
Outer Dimensions:
39*14*7.2mm
Polarity:
Common Cathode
Packaging Details:
EPE+CARTON
Supply Ability:
20000 PCS/Day
Highlight:

0.39 Inch 4 Digit Display

,

Ultra Bright White Emission

,

Common Anode Design

Product Description
Ultra Bright White 4 Digit 7 Segment LED Display 0.39inch Common Anode for instrument panel

0.39-inch Common Cathode LED display designed for instrument panels with ultra-bright white illumination and stable performance.

Product Overview

This 0.39-inch 4-digit 7-segment LED display features ultra-bright white illumination and stable performance, specially designed for instrument panels, meters, and various digital indication equipment. With high luminous efficiency, low power consumption, and uniform brightness, it provides clear and reliable reading in different working environments.

Key Features
  • Display Type: 4 Digit 7 Segment LED Display
  • Digit Height: 9.9 mm (0.39 inch)
  • Outer Dimensions: 39 × 14 × 7.2 mm
  • Polarity: Common Cathde
  • Emitting Color: Ultra bright white
  • Other Colors Available: Red, green, blue, amber, yellow, orange and multi-color
Product Advantages
  • High-luminous intensity output for excellent visibility
  • High electro-optical conversion efficiency
  • Low power consumption and extremely low working current
  • Uniform luminous distribution on each segment
  • Stable performance and long service life
  • Easy PCB mounting and assembly
  • Fully compatible with mainstream driver ICs
  • RoHS compliant, suitable for industrial and consumer electronics
Applications
  • Instrument panels
  • Measuring meters and equipment
  • Industrial control displays
  • Home appliance digital indicators
  • Temperature and humidity instruments
  • Various digital display modules
Product Images

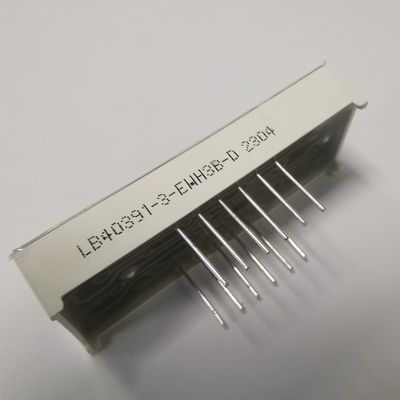

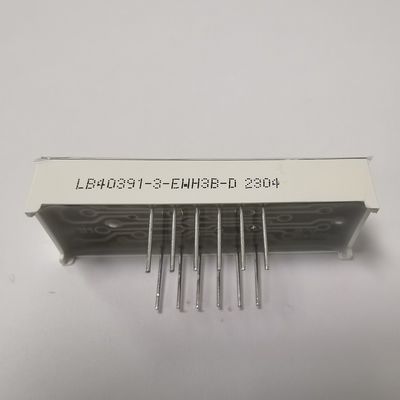

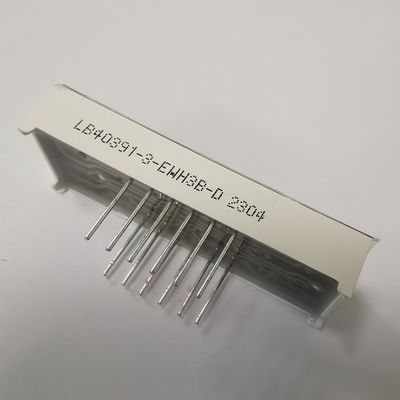

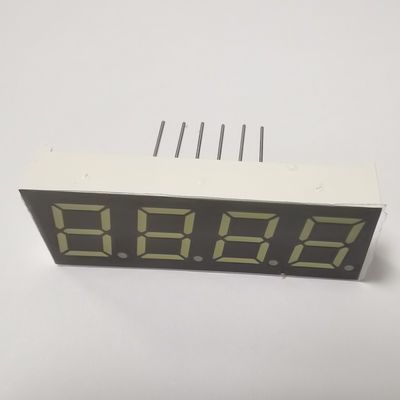

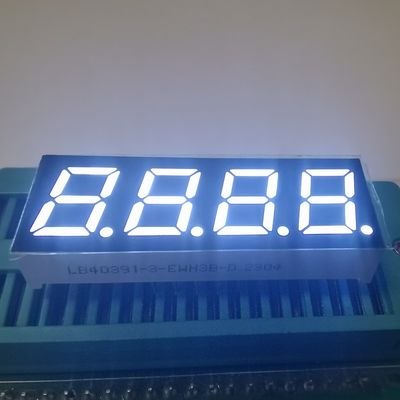

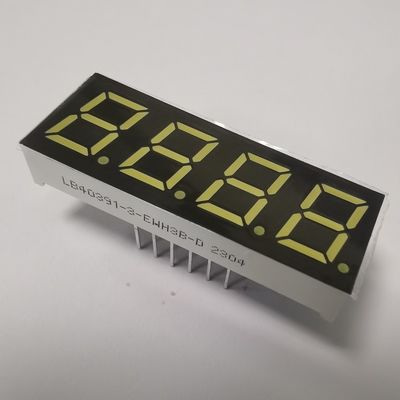

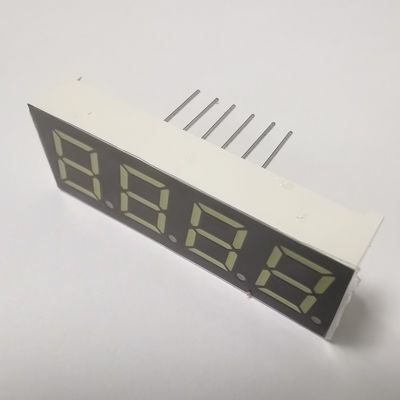

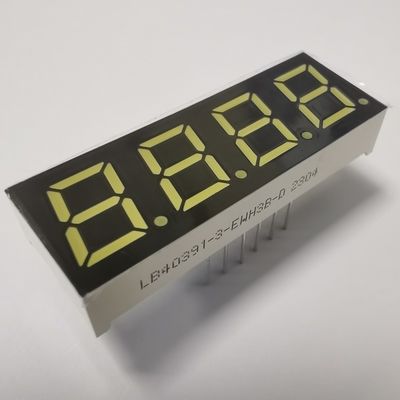

Ultra bright white 4 digit 7 segment LED display front viewUltra bright white 4 digit 7 segment LED display side view
Technical Specifications
Character Height 0.39-inch (9.9mm)
Outer Dimensions 39 x 14 x 7.2mm
Polarity Common Cathode
Segment Material Yellow epoxy on black surface
Emitting Color  Ultra bright white(with options: red, blue, green, white, amber, orange, yellow)
Key Features High luminous intensity, low power consumption, RoHS/REACH compliant
Compliance RoHS/REACH compliant
Absolute Maximum Ratings (Ta=25°C)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 °C
Storage Temperature Range Tstg -40~+85 °C
Solder Temperature (≤3 seconds) Th 260 °C
Electrical & Optical Characteristics

Yellow Green (Code: J)

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 30
40 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 569
574 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 600
605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 50
60 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 630
635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 80
100 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 625
635 nm

Code:Pure Green -G

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
180 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 515
525 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 460
465 nm

Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32
0.30,0.33 nm

Detailed specifications available for Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Pure Green, Ultra Bright Blue, and Ultra Bright White variants.

Product Advantages
  • High-luminous intensity output for excellent visibility
  • High electro-optical conversion efficiency
  • Low power consumption and extremely low working current
  • Uniform luminous distribution on each segment
  • Stable performance and long service life
  • Easy PCB mounting and assembly
  • Fully compatible with mainstream driver ICs
  • RoHS compliant, suitable for industrial and consumer electronics
Applications
  • Instrument panels
  • Measuring meters and equipment
  • Industrial control displays
  • Home appliance digital indicators
  • Temperature and humidity instruments
  • Various digital display modules
