0.56 Inch 7 Segment LED Display for Temperature Indicators

Name: 0.56 Inch 7 Segment LED Display for Temperature Indicators
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30562LY0B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO

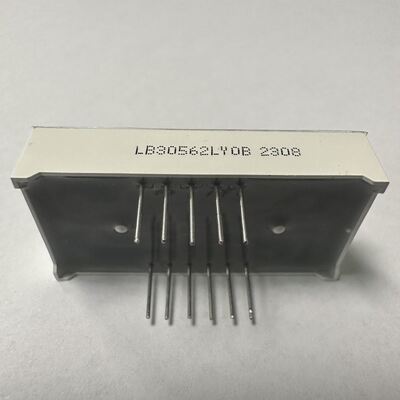

Model Number:	LB30562LY0B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union,
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Packing:

Epe+Carton

Outer Dimensions:

37.6*19*8MM

Brandname:

LIGHT-BO

Origin Of Place:

Shenzhen, China

Forward Voltage:

1.8-2.2V/LED

Pority:

Common Anode

Packaging Details:

Epe+Carton

Supply Ability:

20000 PCS/Day

Highlight:

0.56 inch 7 segment LED display

7 segment LED display for temperature

small 7 segment LED display

Product Description

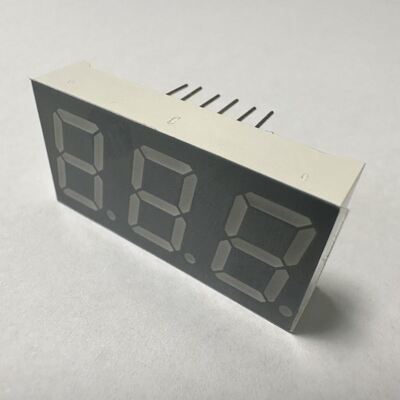

0.56 Inch 7 Segment LED Display for Temperature Indicators

This 0.56-inch 7-segment LED display is engineered specifically for temperature monitoring applications in thermostats, industrial controllers, refrigeration units, and environmental sensors. Designed for optimal readability, energy efficiency, and stable performance across various environments, this display excels at presenting critical temperature data with exceptional clarity.

Key Features

Precision Visibility for Temperature Data

Targeted Wavelength & Brightness: 620-625nm red light provides high contrast against typical black indicator surfaces, ensuring crisp digit and negative sign visibility
Even Luminous Distribution: Uniform segment brightness eliminates hot spots and dim edges that could distort temperature values
Multi-Color Options: Red (default), Green (optimal range cues), Blue (smart thermostats), White, Amber, Orange, Yellow for brand customization

Industrial-Standard Design & Easy Integration

Compact Industrial Size: Fits standard temperature indicator PCBs with 0.56-inch mounting footprints
Low Power Consumption: 5-10mA per LED extends battery life by up to 30% in portable devices
Broad Voltage Compatibility: 1.8-2.2V per LED matches standard temperature sensor power supplies

Stable Performance Across Environments

Temperature Resilience: Operates reliably from -10°C to 60°C with optional high-temperature upgrades to 85°C
Long Lifetime: 50,000+ hours matches the 8-10 year service life of most temperature indicators
Bright Ambient Light Resistance: Industrial-grade design prevents washout from sunlight or factory lighting

Compliance & Versatility

RoHS/REACH Compliant: Free from lead, mercury, and harmful substances for global market compliance
Multi-Scenario Compatibility: Works with humidity monitors, industrial process indicators, home appliances, and audio equipment
IC Compatibility: Seamlessly pairs with standard driver ICs and temperature sensors

Technical Specifications

Category	Parameter	Specification
Basic Design	Display Type	7-Segment LED Display
Basic Design	Character Height	0.56 inch (≈14.2mm)
Optical Performance	Emitting Colors	Red, Blue, Green, White, Amber, Orange, Yellow
Optical Performance	Luminous Intensity	80-100 mcd
Electrical Parameters	Forward Voltage	1.8-2.2V per LED (red/amber/orange/yellow); 2.8-3.2V (blue/green/white)
	Forward Current	5-10mA per LED
	Power Consumption	Low (extremely low current draw)
Quality & Compliance	Core Advantages	High luminous intensity, even distribution, stable performance, long lifetime
Quality & Compliance	Compliance	RoHS Compliant, REACH Compliant

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Luminous Intensity	Iv	If=10mA	30	40	mcd
Wavelength	Dλ	If=10mA	569	574	nm

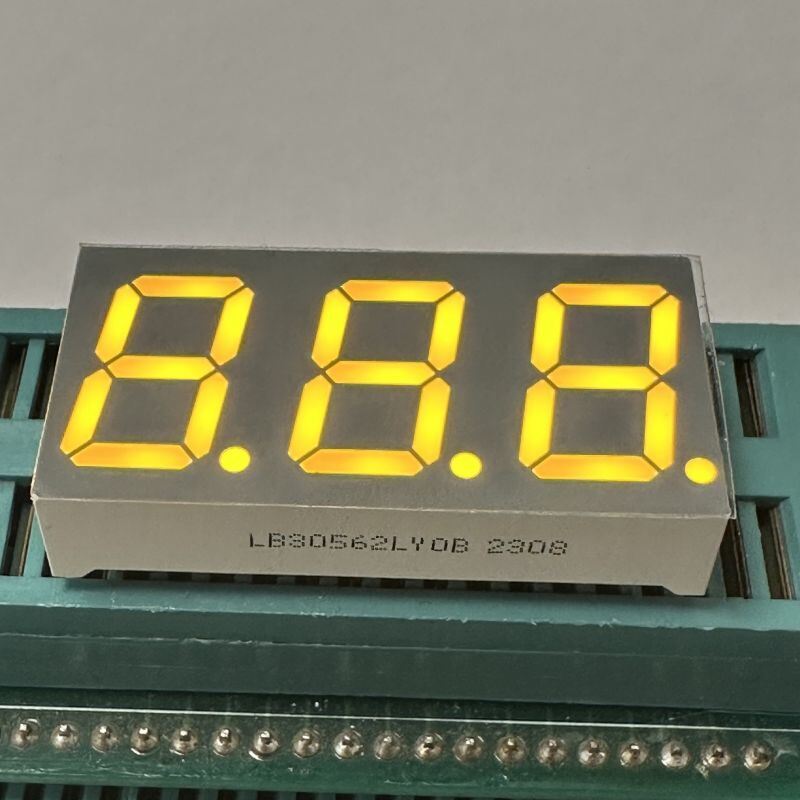

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	585	595	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Luminous Intensity	Iv	If=10mA	50	60	mcd
Wavelength	Dλ	If=10mA	630	635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Luminous Intensity	Iv	If=10mA	80	100	mcd
Wavelength	Dλ	If=10mA	625	635	nm

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)
Established in 2006, we are an ISO 9001:2015 certified company specializing in R&D, manufacturing, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, LightBo is committed to providing high-quality, cost-effective customized solutions to help customers reduce costs and enhance competitiveness.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems, and more.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot Matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through Hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pieces, but we can also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

How long is your delivery time?

Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Can you provide FOB prices?

Yes, we can quote prices based on incoterms EXW, FOB, CIF, DDP.

Can you do custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

How do you ensure product quality?

As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
