Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances

Brand Name:	LIGHTBO
Model Number:	LB46139LWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Digit:

Luminous Intensity:

100-120mcd

Foward Current:

5-10mA/Led

Feature:

Low Current Operation

Current:

20mA

Raw Material:

Plastic,Epoxy ,LED Chip,PCB

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Ultra Bright 7 segment LED display

4 digit LED clock display

7 segment display for home appliances

Product Description

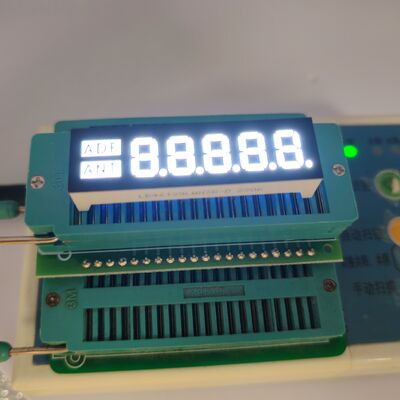

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances

Product Description

Item	Specification	Remarks / Options
Product Name	Ultra-Bright White 4-Digit 7-Segment LED Clock Display (for Home Appliances)	–
Part Number	LB46139LWH3B-D	Custom part number printing available
Digits	4 digits	Options: 2, 3, 5, 6 digits
LED Color	Ultra-Bright White	Options: Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode available
Lifespan	80,000 hours	–
Free Samples	Available	–
Sample Lead Time	5-7 working days	15-20 working days for tooling samples
Production Lead Time	15-20 working days	Adjustable based on order quantity
OEM/ODM Support	Available	Customization based on drawings or concepts
Logo Printing	Available	Customization based on drawings or concepts
Minimum Order Quantity	1,000 PCS	100-500 PCS accepted for first order

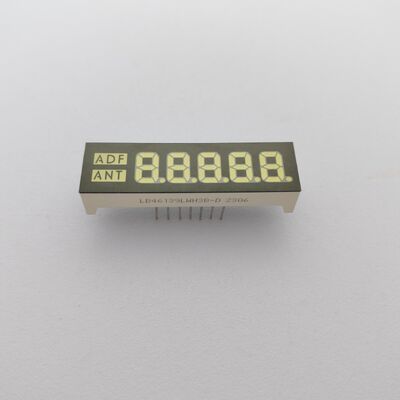

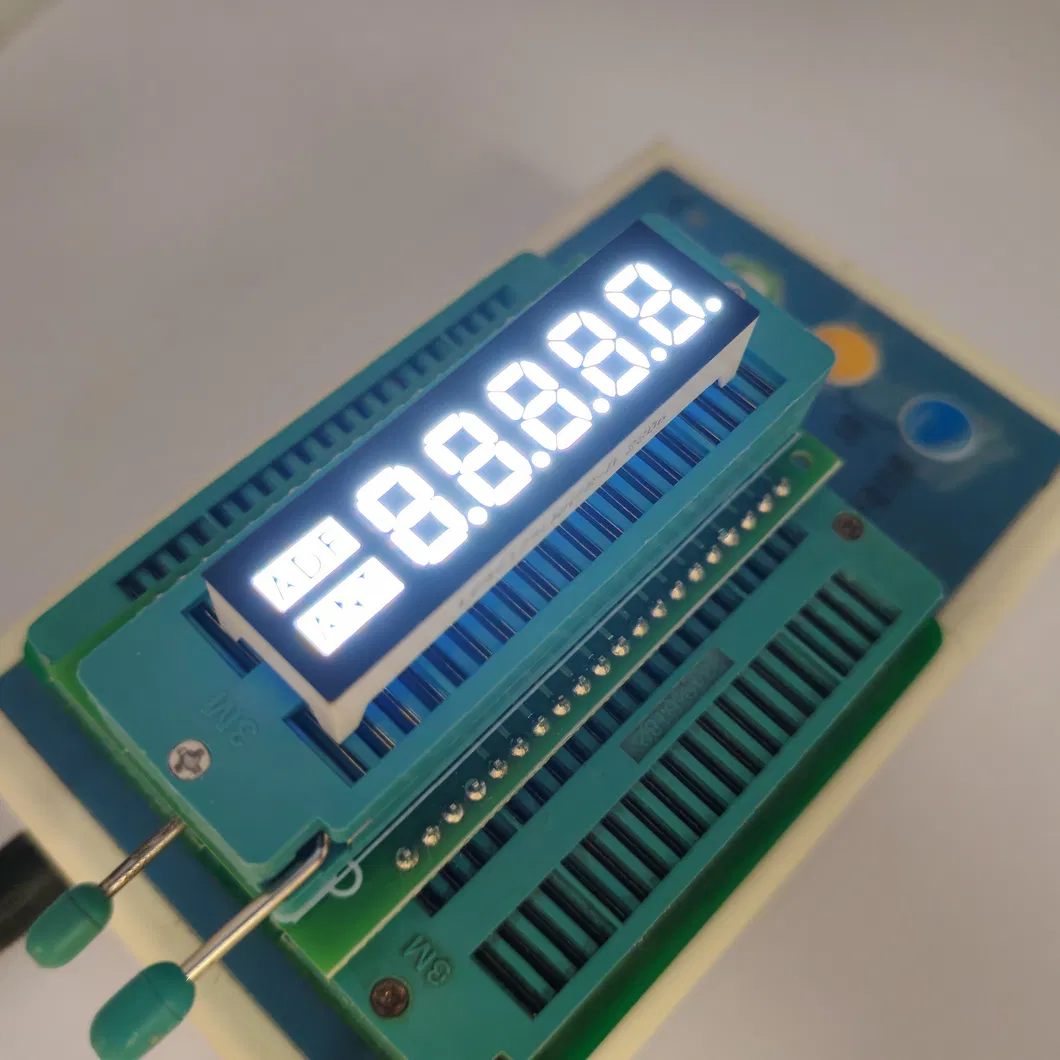

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 0

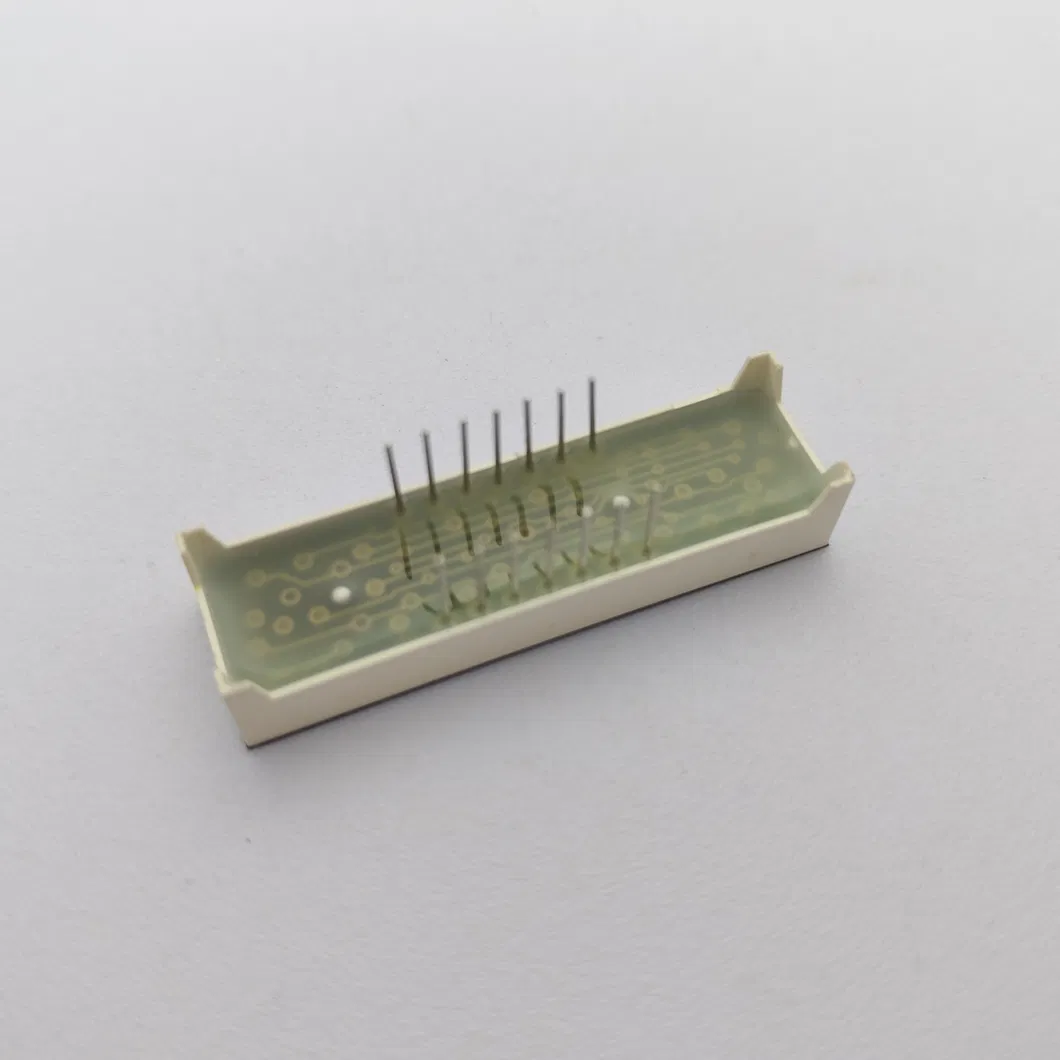

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 1

Product Parameters

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd, operating under the esteemed brand LIGHT-BO,manufacturing, and sales of optoelectronic LED Displays since 2006. Our company proudly upholds the ISO 9001:2015 Quality Management Systems certification, testament to our dedication to quality. With over 15 years of profound OEM and ODM expertise, we stand as a beacon of innovation in the industry.

At LIGHTBO, our unwavering commitment is to deliver unparalleled quality and cost-effective customized solutions. Our mission is to empower our customers by reducing costs while enhancing their competitive edge in the market.

Products Applications

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 2

Our diverse LED display offerings, including 7 Segment, Customized, Numeric, and Dot matrix LED Displays, are extensively applied in various domains such as home appliances, temperature and humidity indicators, refrigerator controllers, thermostat indicators, and comprehensive heating and cooling control systems.

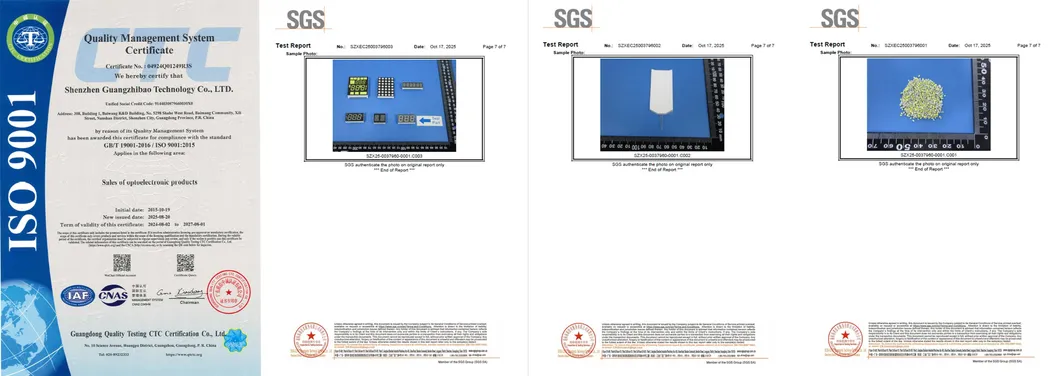

Certifications

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 3

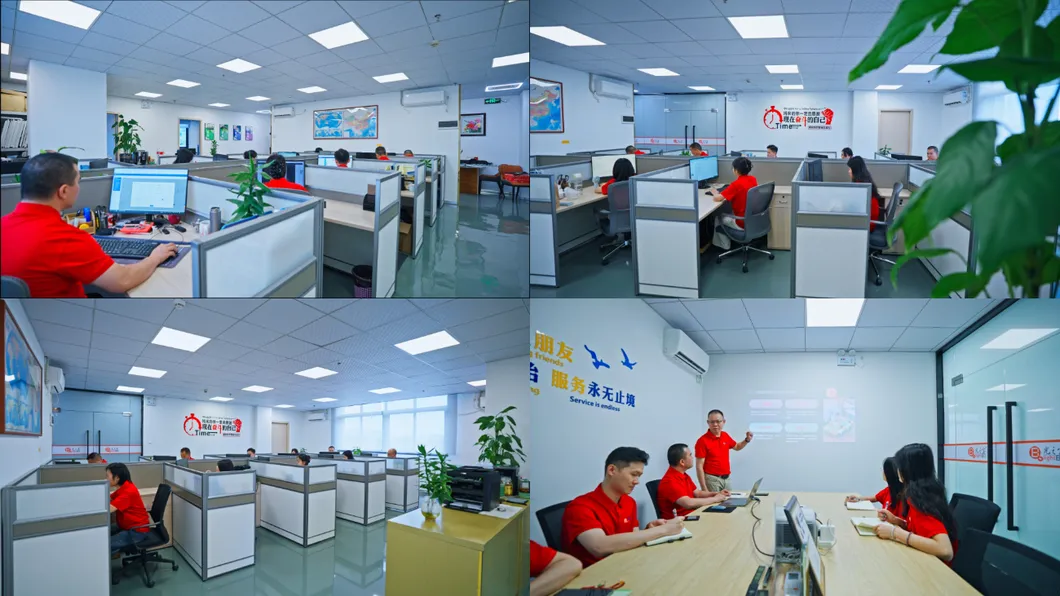

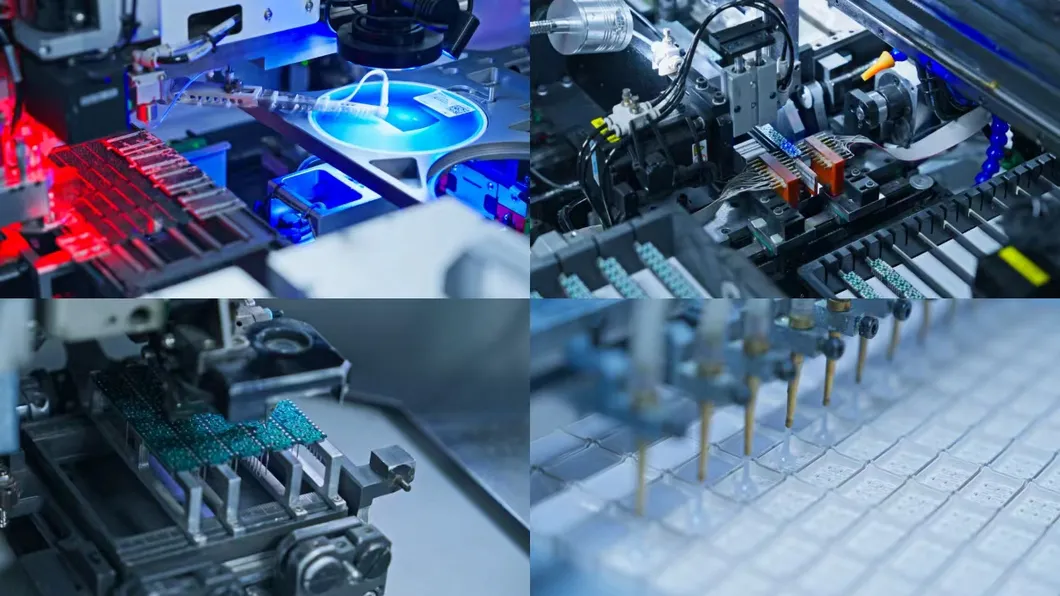

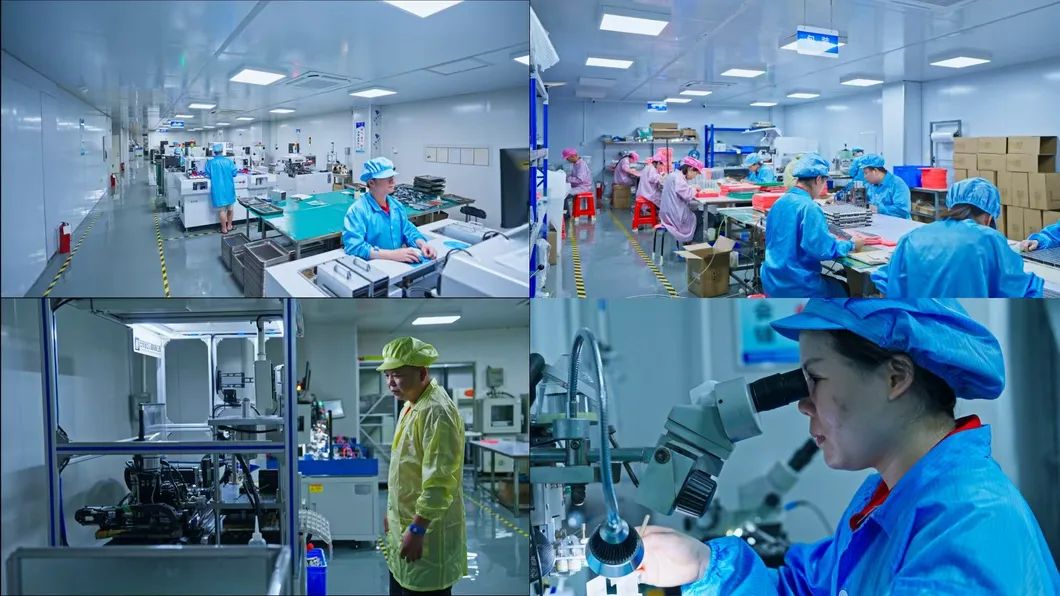

Office and Factory Overview

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 4

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 5

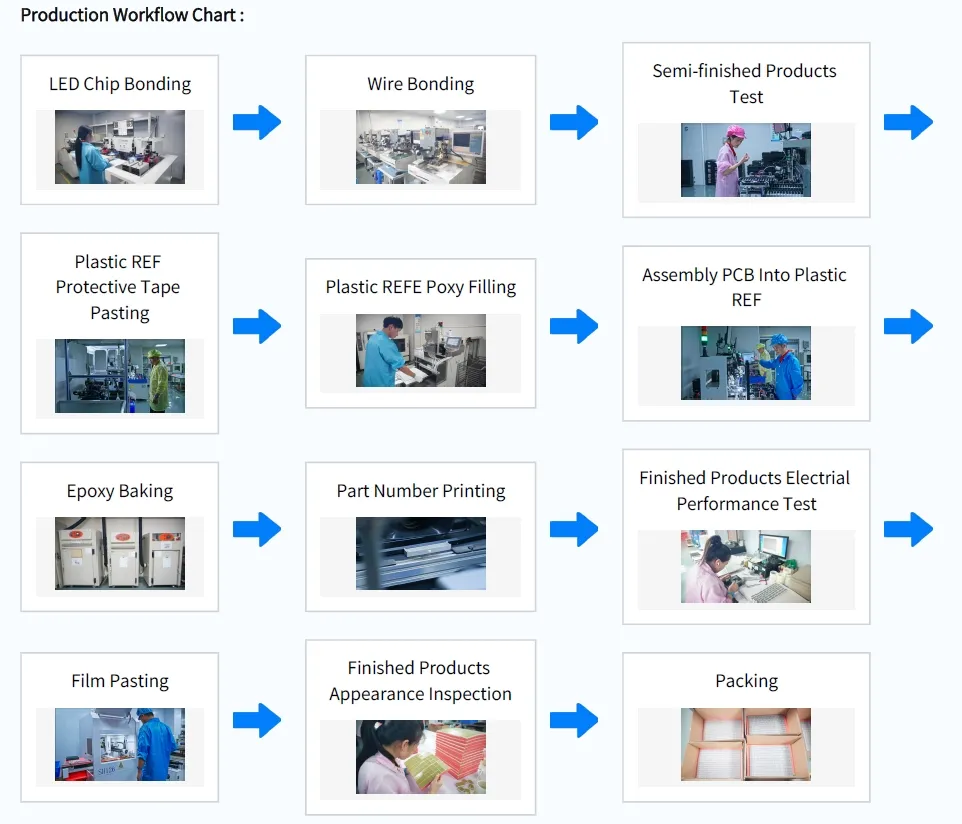

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 7

Company Exhibitions

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 8

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 9

Various transportation methods

Ultra Bright White 4 digits 7 Segment LED Clock Display for Home Appliances 10

FAQ

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be

A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.

Q11 Can you do custom design products

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
