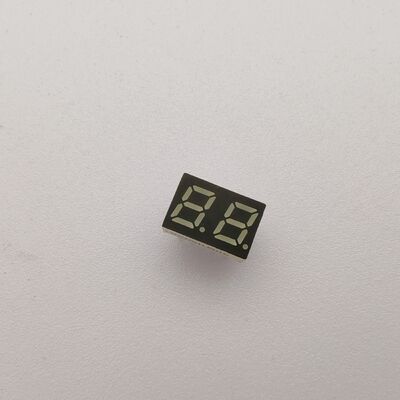

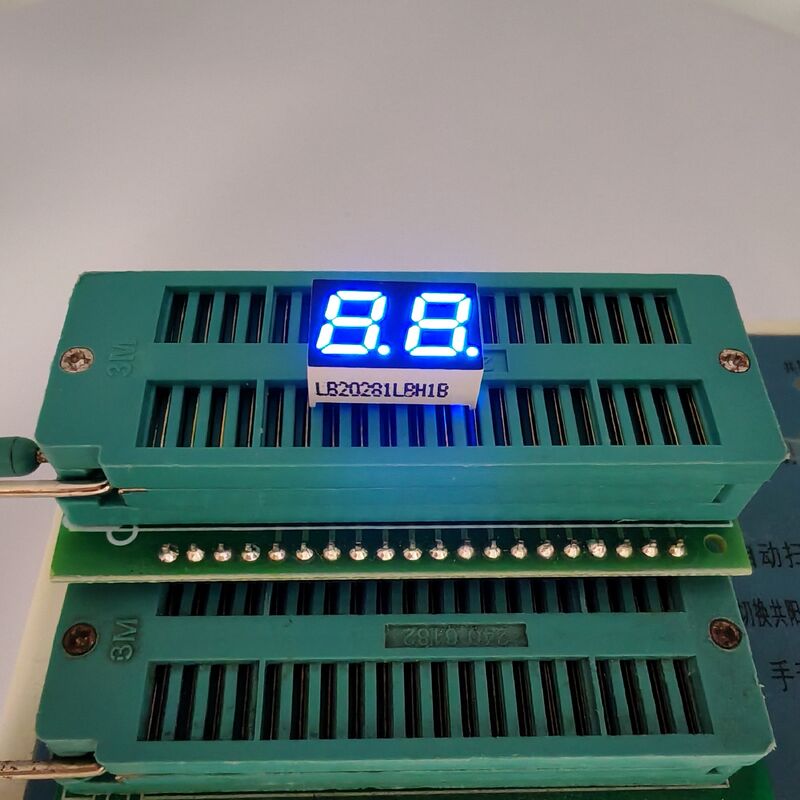

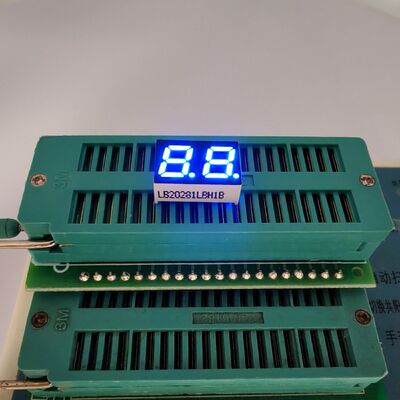

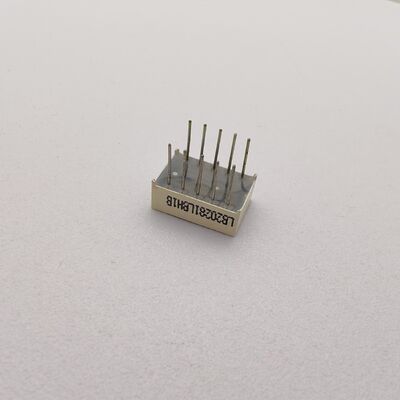

Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems

Name: Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20281IBH1B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB20281IBH1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Document:

LB20281-L-I.pdf

Tube Chip Color:

Ultra Bright Blue

Forward Voltage:

2.8-3.2V

Display_Type:

Common Anode

Wavelength:

460-465nm

Luminous Intensity:

120-140mcd

Storage Temperature:

-40℃~+85℃

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

blue 2-digit 7 segment LED display

ultra bright 7 segment display

7 segment LED display for electronics

Product Description

Ultra Bright Blue 2-Digit 7 Segment LED Display

High-performance LED display designed for electronic systems requiring exceptional brightness and reliability.

Product Specifications

Part Number	LB20281IBH1B	Custom part numbers available
Digit Number	2 digit	2-6 digits available
Digit Height	0.28 inch	0.25-5.0 inch options
Color	Blue	White, red, pure green, yellow-green, orange, etc.
Size	15×10×6mm	Custom sizes supported
Polarity	Common Anode	Common Cathode available
Life Span	80,000 hours
Free Samples	Supported

Key Features

High Efficiency: Exceptional brightness with low forward voltage for optimal energy savings
Optimal Power Management: Ultra-low power consumption ideal for battery-operated devices
Visual Clarity & Uniformity: Balanced brightness and consistent luminance across all segments
Seamless Integration: Industrial-standard dimensions for easy panel mounting
Superior Readability: High contrast ratio ensures visibility in bright environments
Reliable Performance: Stable operation across temperature and voltage variations
Long-Term Durability: 80,000-hour operational life reduces maintenance needs
Global Compliance: Meets RoHS and REACH international regulations

Technical Parameters

Yellow Green (Code: J/JU) - Dynamic, vivid colors for enhanced visual aesthetics

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd

Amber/Yellow (Code: Y) - Warm, inviting glow with magnetic appeal

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Luminous Intensity	Iv	If=10mA	60		80	mcd

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Operating Temperature Range	Topr	-40~+85	ºC

Manufacturer Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM services since 2006. Certified under ISO 9001:2015, our 15+ year legacy demonstrates our commitment to innovation and quality. We provide cost-effective custom solutions that enhance competitive advantages in global markets.

Applications

Our LED displays integrate seamlessly into diverse applications including home appliances, temperature and humidity controllers, refrigerator systems, thermostats, and HVAC equipment.

Certifications

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.

Q2: What is your main products?

Our products include 7 Segment LED displays, SMD LED displays, dot matrix displays, custom LED displays, and various LED components.

Q3: What is your MOQ?

Our MOQ is 1000 pieces, but we accept sample orders and smaller quantities for initial orders.
