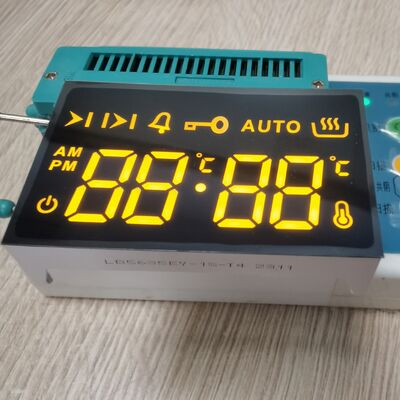

Customizd 4-Digit Common Cathode 7-Segment LED Display for Small Home Appliances

Name: Customizd 4-Digit Common Cathode 7-Segment LED Display for Small Home Appliances
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB5635EY-1S-T4
Price: 0.20 USD
Availability: InStock

Brand Name:	Light Bo
Model Number:	LB5635EY-1S-T4
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	20000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen,Guangdong

Certification:

ISO9001&RoHS

Display Color:

Red/ Green/ Blue/ White/ Yellow

Product Size:

0.8inch Single SMD LED Display

Origin:

Shenzhen

Viewing_Angle:

≥ 60 Degrees

Display_Type:

Common Anode Or Common Cathode

Display Type:

7 Segment

Display Size:

9.92mm (0.38")

Packing:

Epe+Carton

Emitting Colour:

Yellow

Package_Dimensions:

Varies By Model, E.g., 12.7mm X 20.3mm

Forward Current:

5-10mA/led

Character:

Enviromental Protection Epoxy

Type:

7 Segment Led Display

Specificationent:

37.9 X 20.45 X 5.75mm

Package Dimension:

37.6 X 19 X 8 Mm

Packaging Details:

Epe+carton

Supply Ability:

20000pcs/day

Highlight:

4-digit common cathode LED display

7-segment LED for home appliances

customizable 7-segment LED display

Product Description

Customized 4-Digit Common Cathode 7-Segment LED Display

Optimized for small home appliances, audio equipment, and industrial instrument panels, this 4-digit common cathode 7-segment LED display delivers clear, reliable numeric readouts in diverse environments.

Product Overview

Engineered with industrial-standard 56*52*31.8mm dimensions, this display fits seamlessly into standardized PCB layouts, eliminating the need for custom structural redesigns for manufacturers. Featuring evenly distributed segment luminosity, high luminous intensity output, and extremely low current operation, it delivers clear, glare-free readouts even in bright ambient light. With low power consumption, long service life, and dual RoHS/REACH compliance, it balances energy efficiency and reliability for 24/7 operation.

Product Images

Core Technical Specifications

Category	Parameter	Specification
Basic Design	Display Type	Customized 4-Digit Common Cathode 7-Segment LED Display
Basic Design	Dimensions	56 * 52 * 31.8mm
Optical Performance	Core Optical Traits	High luminous intensity output, evenly distributed segment luminosity, excellent visibility in bright ambient light
Electrical Parameters	Key Traits	Low power consumption, extremely low current operation
Quality & Durability	Core Advantages	Stable performance, long lifetime (50,000+ hours), high reliability
Compliance	Certification	RoHS Compliant, REACH Compliant

Key Features

Bright-Light Environment Readability

Evenly distributed segment luminosity with ≤5% brightness variation
High luminous intensity output for clear visibility in sunlight and bright indoor lighting
Crisp, uniform readouts for temperature values, humidity levels, and timer countdowns

Energy Efficiency

Extremely low current operation for battery-powered devices
Low power consumption meets global energy-saving standards
Extends battery life to 6-12 months on single charge

Manufacturer-Friendly Integration

Industrial standard dimensions match universal PCB layouts
Common cathode polarity works with mainstream driver ICs and microcontrollers
Easy assembly supports automated production lines

Long-Term Reliability & Compliance

Stable performance in variable temperature and vibration environments
50,000+ hour lifetime matches 5-8 year appliance service life
Dual RoHS/REACH compliance for global market access

Applications

This display is purpose-built for numeric readout scenarios across residential and light industrial fields:

Small Home Appliances: Smart thermostats, mini rice cookers, portable kitchen timers, air fryers, humidifiers/dehumidifiers
Audio & Multimedia Equipment: Amplifier volume displays, mixer channel indicators, home theater receiver status panels
Instrument Panels: Temperature/humidity indicators, process control meters, portable testing devices, security system numeric readouts

Technical Parameters

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

LED Color Specifications

Yellow Green (J)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd

Note: Complete technical specifications for Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Pure Green, Ultra Bright Blue, and Ultra Bright White available upon request.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)

Established in 2006, we are an ISO 9001:2015 certified company specializing in R&D, manufacturing and sales of optoelectronics LED displays. With over 15 years of OEM and ODM experience, LIGHTBO provides high-quality, cost-effective customized solutions to help customers reduce costs and enhance competitiveness.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control.

Certifications & Facilities

Company Exhibitions

Shipping Services

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

What are your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, and LED Backlights.

What is your MOQ?

Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing before placing an order?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

How long is your delivery time?

Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.

Complete FAQ with additional questions about payment terms, pricing, custom design, quality assurance, and shipping methods available upon request.
