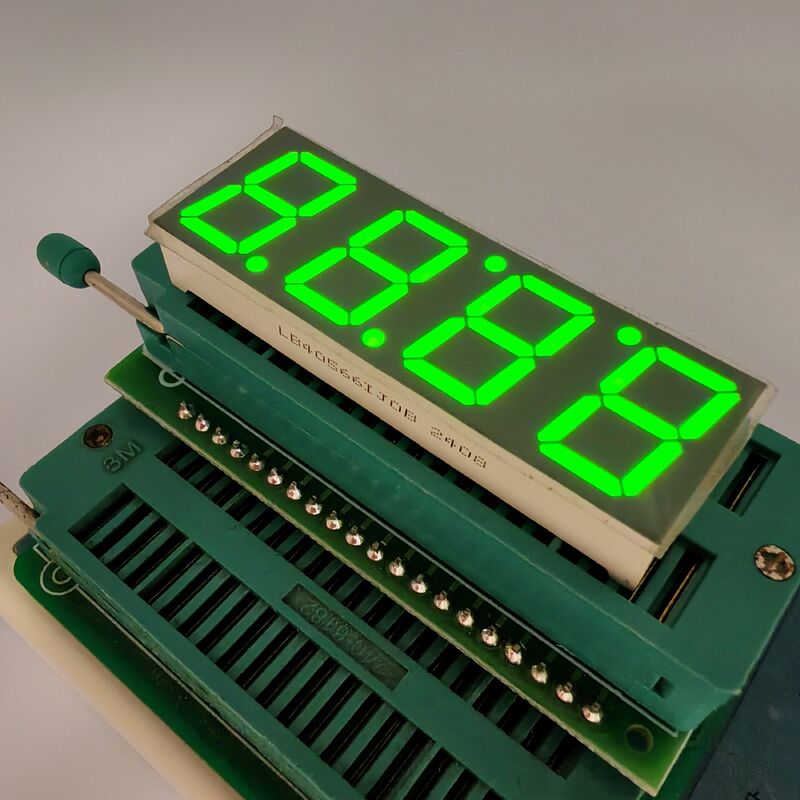

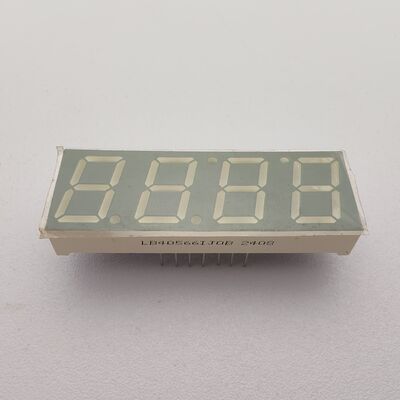

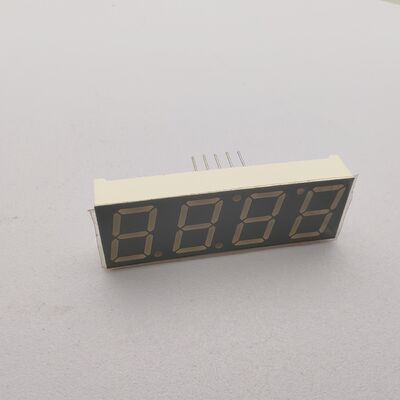

Induction Cooker LED Clock Module: 4-Digit, 7-Segment, Yellow-Green Display

Name: Induction Cooker LED Clock Module: 4-Digit, 7-Segment, Yellow-Green Display
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40566IJ0B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40566IJ0B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Document:

LB40566-I-L.pdf

Tube Chip Color:

Yellow Green

Forward Voltage:

1.8-2.4V/LED

Display_Type:

Common Anode

Wavelength:

569-574NM

Luminous Intensity:

30-40mcd

Spectrum With Of Half Value:

20NM

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

4-digit 7-segment LED display

yellow-green LED clock module

induction cooker LED display

Product Description

Induction Cooker LED Clock Module

4-digit, 7-segment yellow-green display designed for industrial applications and appliance integration.

Product Specifications

Part Number	LB40566IJ0B	Custom part number printing available
Digit Number	4 Digits	2, 3, 4, 5, or 6 digits available
Digit Height	14.22 mm (0.56 inch)	Range: 0.25" to 5.0"
Display Color	Yellow-Green	White, blue, pure green, yellow-green, orange, etc.
Module Size (L×W×H)	50.4 × 17.1 × 8.0 mm	Other custom sizes supported
Polarity	Common Anode	Common Cathode also available
Lifespan	80,000 hours	-
Free Samples	Available	-
Sample Lead Time	5-7 working days	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	Varies based on order quantity
OEM/ODM Services	Supported	Based on customer drawings or concepts
LOGO Printing	Supported	Based on customer artwork
Minimum Order Quantity (MOQ)	1,000 PCS	Initial orders of 100-500 PCS negotiable

Key Features

High luminous intensity output with forward voltage optimization
Low power consumption for energy-efficient operation
Extremely low current requirements
Uniform luminous distribution across all segments
Industrial standard sizing for seamless integration
Excellent reliability in bright ambient light conditions
Stable performance for demanding applications
Long operational lifetime of 80,000 hours
RoHS/REACH compliant for environmental safety

Technical Parameters

Yellow Green (Code: J/JU)

Vivid yellow-green display offering excellent visibility and aesthetic appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	30	-	40	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	569	-	574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing inviting and attention-grabbing display characteristics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.5	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	585	-	595	nm

Absolute Maximum Ratings (Ta=25ºC)

Comprehensive performance metrics for exceptional reliability under various operating conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Company Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM services since 2006. Certified under ISO 9001:2015, our 15+ year legacy demonstrates our commitment to innovation and quality.

LIGHTBO provides cost-effective custom solutions that enhance competitive advantages in the global marketplace.

Applications

Our 7-segment LED displays, customized LED displays, numeric LED displays, and dot matrix LED displays integrate seamlessly into various applications including home appliances, temperature and humidity control systems, refrigerator controllers, thermostats, and HVAC systems.

Certifications & Quality

Manufacturing Facilities

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

What is your main products?

Our main products include 7-segment LED display, SMD LED display, dot matrix LED display, arrow LED display, custom design LED display, LED light bar, through hole LED, SMD LEDs, and LED backlights.

What is your MOQ?

Our MOQ is 1000 pieces, but we can accept sample orders and small quantities below our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for testing, with freight costs borne by the customer.

How long is your delivery time?

Delivery time is typically 10-20 days, depending on order quantity and raw material availability. Urgent orders with available materials can be completed in 7-10 days.
